X4 SideShoot X-ray Inspection Systems

X4 SideShoot X-ray Inspection Systems

Product catalog summary

Overview: The document provides technical specifications and features of X-ray inspection systems designed for the food and packaging industries. These systems are versatile, reliable, and built for continuous operation.

Key Features:

Versatile Models: Suitable for a wide range of packaged products with various reject systems.
User Interface: Intuitive full-color touch-screen for ease of use.
Detection Capabilities: High-performance, auto-configuring contaminant detection algorithms capable of handling pack rates over 600 ppm.
Durability: Heavy-duty conveyor components designed for 24/7 operation.

Technical Specifications:

Computer System: Industrial-grade PC with modem, Ethernet, and USB access, running on Windows XP.
X-ray Tank: Digitally controlled WASC high-performance X-ray tank with an estimated tube life of 7 to 10 years.
Detector Array: Unique USB high-speed, high-stability detector array with 0.8mm diode pitch.
Vision System: Utilizes computer vision with image processing and morphological techniques.
Security and Monitoring: Pass Key protected setup, USB report and image archiving, full diagnostic and system health monitoring with remote support tools.
Modular System: High-speed digital communications between major components.

Physical and Operational Specifications:

Material: 304 stainless steel with bead blast finish.
Dimensions: Typical line height of 900mm ± 50mm, system length of 2830mm, and belt width of 200mm.
Power Supply: Options for 230/1ph/50Hz N+E or 110/1ph/60Hz N+E.
Air Supply: 5 to 8 bar.
Environment: Rated IP 55, with options for IP66 washdown.
Standard Inclusions: Height adjustable feet, image and report archiving, hinged interlocked covers, variable speed.
Optional Features: Reject confirmation, bin full sensing, survey meter, remote diagnostics, lockable wheels, LomaEnet.

Catalog excerpts

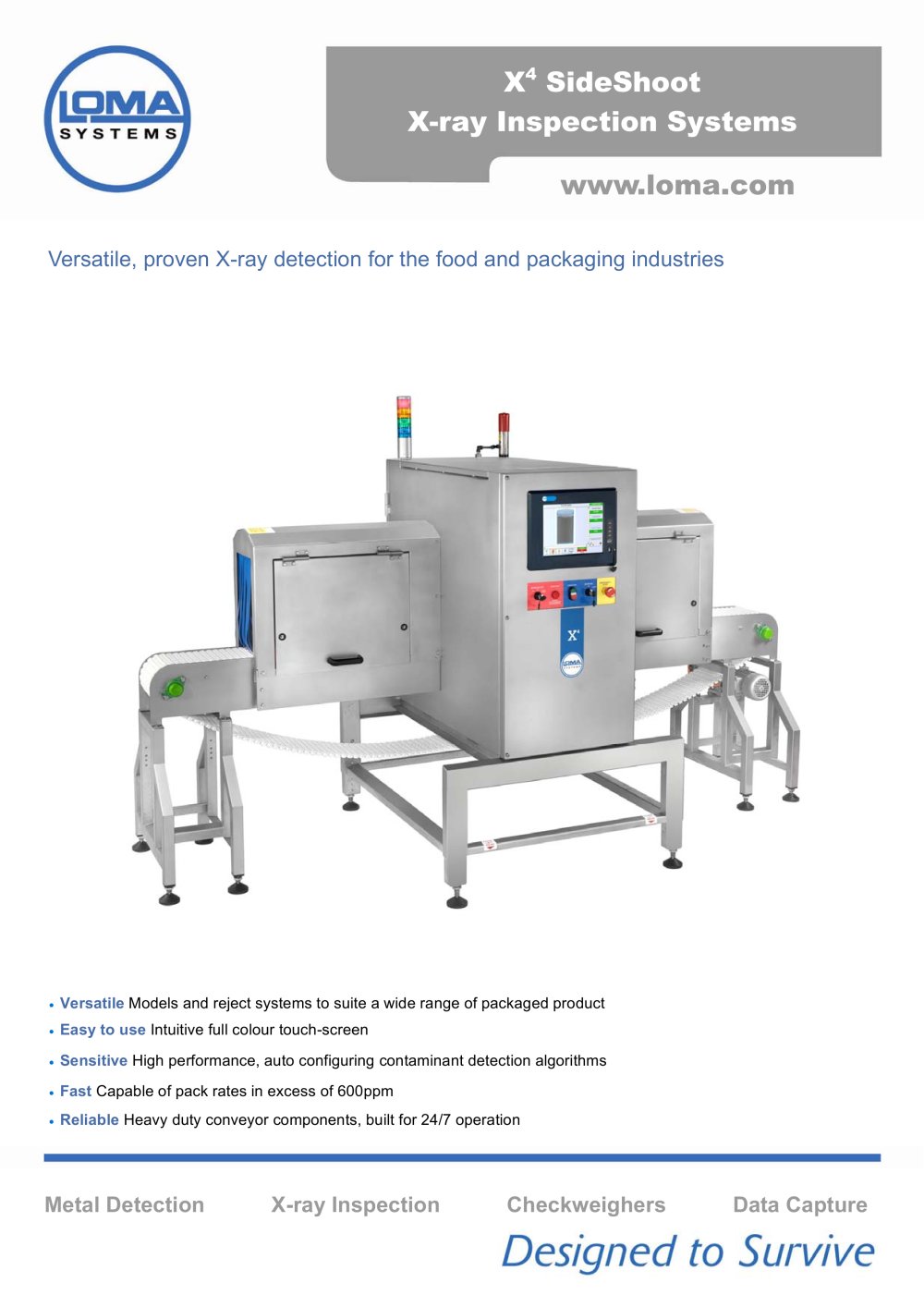

Metal Detection X-ray Inspection Checkweighers Data Capture Versatile, proven X-ray detection for the food and packaging industries • Versatile Models and reject systems to suite a wide range of packaged product • Easy to use Intuitive full colour touch-screen • Sensitive High performance, auto configuring contaminant detection algorithms • Fast Capable of pack rates in excess of 600ppm • Reliable Heavy duty conveyor components, built for 24/7 operation X4 SideShoot X-ray Inspection Systems www.loma.com

Open the catalog to page 1

X-ray Inspection Systems Loma Systems, Summit Ave, Southwood, Farnborough, Hampshire, GU14 0NY Tel: +44 (0)1252 893300 Fax: +44 (0)1252 513322 Email: [email protected] Technical Specification Industrial Grade PC with modem, Ethernet and front access USB Windows XP operating system Digitally controlled WASC (Wide Angle, Self Cooled) high performance X-ray tank (Tube life estimated at 7 to 10 years) Unique USB high speed, high stability, detector array with 0.8mm diode pitch Computer vision system utilising image processing and morphological techniques Pass Key protected set-up USB Report and image...

Open the catalog to page 2
