Temperature Measurement Celsius

Temperature Measurement  Celsius

Temperature Measurement Celsius

Product catalog summary
Overview: The document introduces the Celsius temperature measurement system by Loma Scientific, highlighting its innovative approach to non-destructive temperature measurement using patented microwave thermometry technology. This system is designed to meet the needs of modern food manufacturers by reducing product wastage and energy costs.
Key Benefits:
  • Versatility: Suitable for all product types and capable of calculating any temperature variations.
  • Ease of Use: Minimizes human error and requires minimal skill to operate.
  • Accuracy: Provides readings with an accuracy of +/- 0.2 ºC (0.36ºF) within seconds.
  • Non-Destructive: Eliminates product wastage and disposal costs.
  • Reliability: Designed for 24/7 operation with a heavy-duty build.
Technical Specifications:
  • Stainless steel finish with a Windows touch screen display.
  • Dimensions: 640mm (H) x 510mm (W) x 440mm (D).
  • Supply Voltage: 230V/1ph/50 Hz N+E or 110V/1ph/60 Hz N+E.
  • Environmental Temperature Range: -5ºC to +40ºC (23ºF to 104ºF).
  • Measurement Accuracy: +/- 0.4ºC for -30 to 0ºC and +/- 0.2ºC for -5 to 30ºC.
  • Product Temperature Range: -5 to 30ºC (Chilled) and -5 to -30ºC (Frozen).
  • Max Product Size: 320mm x 320mm x 100mm High.
  • Weight: 64 kg (141 pounds).
Advantages Over Traditional Methods:
  • Thermocouple probes and infrared systems have limitations such as product damage and surface-only temperature readings.
  • Celsius provides superior quality assurance by measuring the equilibrium temperature, ensuring no hot or cold spots are missed.
  • Increased production efficiency with quick results and minimal operator training required.
  • Improved traceability with barcode reader integration for detailed record-keeping.
  • Considerable cost savings by reducing product wastage and energy consumption.
Additional Features:
  • Windows full-color touch-screen with upgradeable software.
  • Electronic record keeping with full accountability and traceability.
  • High-speed Ethernet connection for instant access to records.
  • Simple operating procedure, eliminating the need for skilled workers or extensive training.
Awards and Certifications: Celsius has received several international awards for innovation and design excellence. All Loma systems are manufactured to ISO9001 standards and supported by a global network of sales and service operations.
Contact Information: The document provides contact details for Loma Systems in various countries, including the UK, USA, Canada, China, France, Germany, the Netherlands, and the Czech Republic.
About Spectrum Inspection Systems: Spectrum Inspection Systems is a leading manufacturer of inspection systems for the Cintex, Loma, and Loma Scientific brands, known for their quality and advanced technology, supported by ISO 9001 certification.
See more

Catalog excerpts

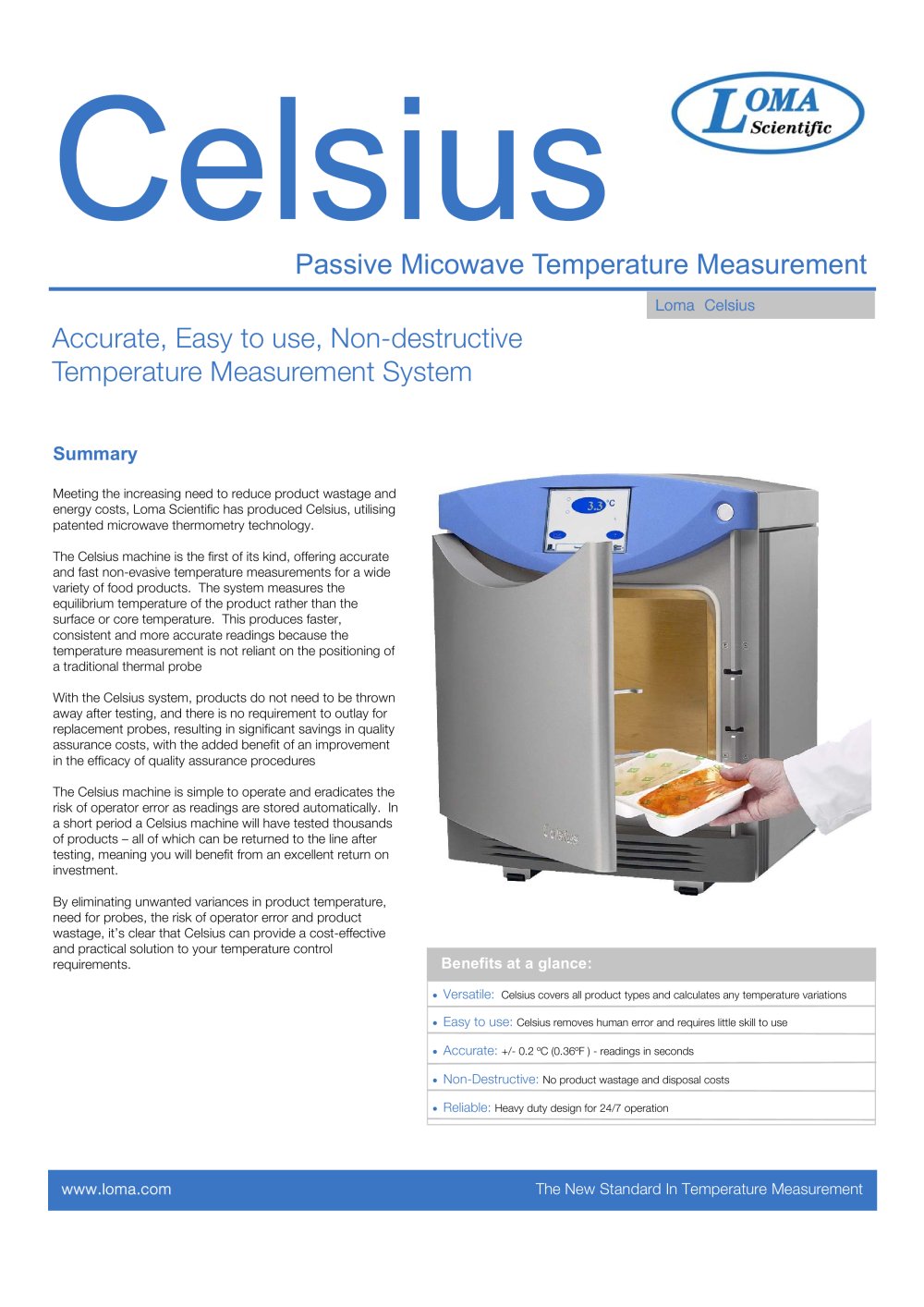

Temperature Measurement  Celsius-1

Meeting the increasing need to reduce product wastage and energy costs, Loma Scientific has produced Celsius, utilising patented microwave thermometry technology. The Celsius machine is the first of its kind, offering accurate and fast nonevasive temperature measurements for a wide variety of food products. The system measures the equilibrium temperature of the product rather than the surface or core temperature. This produces faster, consistent and more accurate readings because the temperature measurement is not reliant on the positioning of a traditional thermal probe With the Celsius system, products do not need to be thrown away after testing, and there is no requirement to outlay for replacement probes, resulting in significant savings in quality assurance costs, with the added benefit of an improvement in the efficacy of quality assurance procedures The Celsius machine is simple to operate and eradicates the risk of operator error as readings are stored automatically. In a short period a Celsius machine will have tested thousands of products all of which can be returned to the line after testing, meaning you will benefit from an excellent return on investment. By eliminating unwanted variances in product temperature, need for probes, the risk of operator error and product wastage, it֒s clear that Celsius can provide a costeffective and practical solution to your temperature control requirements. > Versatile: > Celsius covers all product types and calculates any temperature variations Easy to use: > Celsius removes human error and requires little skill to use Accurate: > +/ 0.2 C (0.36ںF ) readings in seconds NonDestructive: > No product wastage and disposal costs Reliable: > Heavy duty design for 24/7 operation

 Open the catalog to page 1
Temperature Measurement  Celsius-2

Finish: > Stainless steel effect. Display Size: > 130mm x 100mm (5 x 4 inches) Windows full color touchscreen Upgradeable Software Electronic record keeping Full accountability and traceability with Barcode Scanner Impedance matched cavity providing new levels of accuracy High speed Ethernet connection for instant access to records Simple operating procedure, so no need for skilled workers or training Windows based touch screen displaying temperature reading in 5 seconds showing trends by product. Easy installation. Simple plug in Easy validation No packaging effect except completely covered...

 Open the catalog to page 2
