Loma Systems
Pharmaceutical Metal Detectors

Pharmaceutical Metal Detectors

Product catalog summary

Overview: The document provides detailed information about metal detection systems specifically designed for the pharmaceutical industry. These systems are versatile, reliable, and ensure the safety and quality of pharmaceutical products by detecting metal contaminants.

Key Features:

Compact Design: Easily installed after de-dusters or tablet presses.
Safety: Equipped with a failsafe reject mechanism for precise rejection of contaminated products.
Sensitivity: Advanced signal processing for high levels of detection.
Hygiene: Product contact parts can be quickly dismantled and cleaned.
Reliability: Robust design ensures long-term performance.

Technical Specifications:

Upgradeable Controls: Metal detector controls can be upgraded to aid HACCP compliance.
Communication Options: Various options available to suit plant integration protocols.
Direct Transmitter Drive: Eliminates thermal drift and external interference.
Signal Processing: 32-bit digital signal processing enhances contaminant detection.
Operating Frequency: 1MHz for peak detection of high-grade stainless steel.
Construction: Made from 304 stainless steel with a bead blast finish.
Aperture Sizes: Available in 100mm x 20mm and 100mm x 38mm.
Voltage and Frequency: Compatible with 110/115/200/220/230V and 50/60Hz.
Height and Adjustment: Input height ranges from 530mm to 835mm, output height from 240mm to 680mm, with gas strut assisted height adjustment and a maximum tilt angle of 45º.
Reject Type: High-speed electrical solenoid driven flap.
Throughput: Capable of processing up to 10,000 tablets per minute.
Options: Includes beacon stanchion, keyboard cover, LomaEnet, serial link, Ethernet, remote reports, and PVS beacon.
Cleaning Regime: Machine can be wiped or blown clean, with wash inlet/outlet chutes.

Contact Information:

USA: Loma Systems Inc, 283 East Lies Road, Carol Stream, IL 60188. Tel: 1-800-USA-LOMA, Fax: (630) 588-0900, Email: [email protected]
Canada: Loma Canada, 333 Wyecroft Road, Unit 11, Oakville, Ontario, L6K 2H2. Tel: (905) 842 4581, Fax: (905) 842 3460, Email: [email protected]

Catalog excerpts

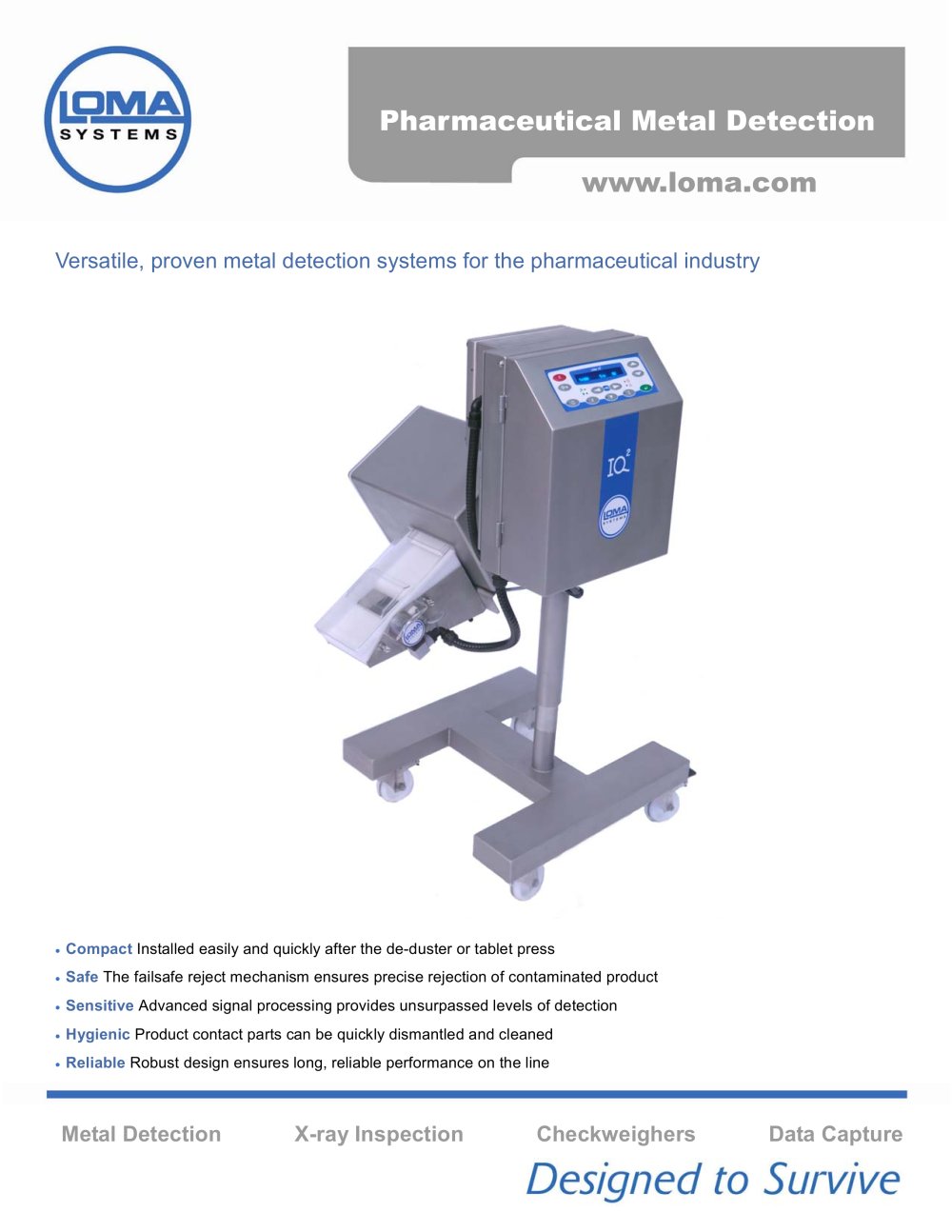

Compact Installed easily and quickly after the de-duster or tablet press Safe The failsafe reject mechanism ensures precise rejection of contaminated product Sensitive Advanced signal processing provides unsurpassed levels of detection Hygienic Product contact parts can be quickly dismantled and cleaned Reliable Robust design ensures long, reliable performance on the line >

Open the catalog to page 1

Technical Specification > Upgradeable metal detector controls PVS to aid HACCP compliance Various communication options to suit plant integration protocols Direct transmitter drive to eliminate thermal drift High field strength to eliminate external interference and deliver the ultimate in noise free detection 32-bit digital signal processing for enhanced contaminant detection Standard apertures on rapid delivery 1MHz operating frequency for peak high-grade stainless steel detection Finish: 304 stainless steel with bead blast finish Aperture Sizes: 100mm x 20mm 100 x 38mm (4 x 0.8Ԕ) (4 x 1.5Ԕ)...

Open the catalog to page 2
