Loma Systems
Pack X-ray Inspection

Pack X-ray Inspection

Product catalog summary

Overview: The document provides detailed information about the X4 X-ray Inspection Systems designed for the food and packaging industries. These systems are versatile and equipped with advanced features to ensure efficient and reliable inspection processes.

Key Features:

Versatile models with various reject systems suitable for a wide range of packaged products.
Intuitive full-color touch-screen interface for ease of use.
Sensitive auto-calibration that maximizes performance without requiring programming.
Fast belt speeds exceeding 96 m/min (315 ft/min) without performance loss.
Heavy-duty conveyor components designed for 24/7 operation.

Technical Specifications:

Construction: 304 stainless steel with bead blast finish.
Typical line height: 900mm ± 50mm (35” ± 2”).
System length: 2000mm (80”).
Belt width: 300/500mm (12/20”).
Supply voltages: 230/1ph/50Hz N+E or 110/1ph/60Hz N+E.
Air supply: 5 to 8 bar (80 to 100 psi).
Environment: IP 55/66, NEMA 12/4X.
Belt type: Flat (food quality) belt.

Standard Inclusions:

Quick release belt and height adjustable feet.
Mass measurement, missing product detection, shape recognition.
Image and report archiving, hinged interlocked covers, variable speed.

Optional Features:

Reject confirmation, bin full sensing, reject bin, survey meter.
Remote diagnostics, lockable wheels, LomaEnet, modem support.

Advanced Technology:

Upgradeable display mounted industrial-grade PC with modem and network card.
Large expandable hard drive with Windows XP operating system.
Digitally controlled WASC high-performance X-ray tank with an estimated tube life of 7 to 10 years.
Unique USB high-speed, high-stability, temperature-compensated detector array with 0.8mm diode pitch and a scan rate of 2000s/sec.
Computer vision system utilizing image processing and morphological techniques.
Pass key protected setup, Ethernet ready, USB report and image archiving.
Full diagnostic and system health monitoring with date and time stamp archiving.
Usage monitoring with planned maintenance prompts and QA test event logging.
Modem support capability.

Contact Information:

USA: Loma Systems Inc, 283 East Lies Road, Carol Stream, IL 60188. Tel: 1-800-USA-LOMA, Fax: (630) 588-0900, Email: [email protected]
Canada: Loma Canada, 333 Wyecroft Road, Unit 11, Oakville, Ontario, L6K 2H2. Tel: (905) 842 4581, Fax: (905) 842 3460, Email: [email protected]

Catalog excerpts

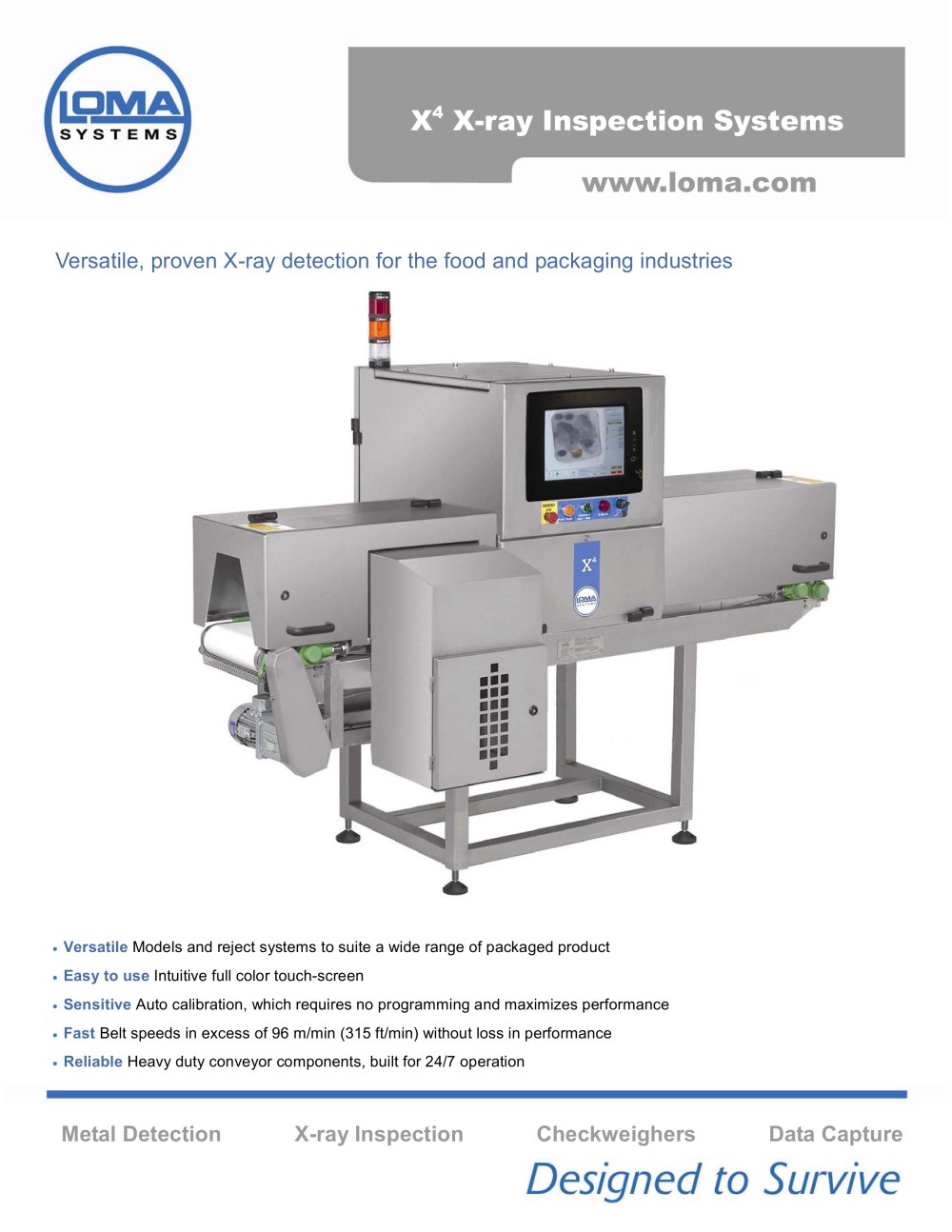

Versatile Models and reject systems to suite a wide range of packaged product Easy to use Intuitive full color touch-screen Sensitive Auto calibration, which requires no programming and maximizes performance Fast Belt speeds in excess of 96 m/min (315 ft/min) without loss in performance Reliable Heavy duty conveyor components, built for 24/7 operation >

Open the catalog to page 1

Finish: 304 stainless steel with bead blast finish Typical Line Height: 900mm 50mm 35є 2є System Length: 2000mm 80 Belt Width: 300/500mm 12/20Ԕ Supply Voltages: 230/1ph/50Hz N+E or 110/1ph/60Hz N+E Air Supply: 5 to 8 bar 80 to 100 psi Reject Options: Air Blast single or twin, Pusher others to order Environment: IP 55/66 NEMA 12/4X Belt Type: Flat (food quality) belt Standard Inclusions: Quick release belt, Height adjustable feet, Mass Measurement, Missing product, Shape recognition, Image and report archiving, Hinged interlocked covers, Variable speed Options: Reject confirmation, Bin full sensing,...

Open the catalog to page 2
