Mid Range Checkweighers

Product catalog summary

Overview: The document provides technical specifications and features of the LCW 3000 and 6000 Checkweighers, designed for the food and packaging industries. These systems are part of a range of versatile checkweighing solutions offered by Loma Systems.

Specifications:

Weight Capacity: LCW 3000 can handle up to 6.1 lbs (3000g) and LCW 6000 up to 13.3 lbs (6000g).
Accuracy: High accuracy, particularly with flexible packaging, with a typical accuracy of 0.02oz (0.6g).
Speed: Belt speeds can reach up to 300ft/min (90m/min).
Construction: Made from 304 stainless steel with a bead blast finish.
Dimensions: Line height ranges from 26 to 50 inches (660 to 1270mm), and typical system length is 59 inches (1500mm).
Power Supply: Operates on 110 or 230V/1ph/N+E at 50 or 60Hz.
Air Supply: Requires 80 to 100 psi (5 to 8 bar).

Features:

Equipped with a full-color graphical touch screen and optional 360 display.
Includes 240 product memory, multi-speed options, password protection, and PC-based touch screen.
Offers simple setup, diagnostics, histogram, Allen Bradley controls, strain gauge loadcell, statistical recording, and static weighing mode.

Options:

Infeed guides, servo feedback for filler control, serial data link, external serial printer, zone indicator stack light, reject bin, reject and bin full confirmation, overhead mounted touch screen and display.
Combo option available for combined metal detector checkweigher.

Conveyor Specifications:

Powered Weigh Table Conveyor: Length varies from 8 to 28 inches, width from 6 to 16 inches, depending on the model.
Infeed and Outfeed Conveyors: Length ranges from 12 to 44 inches, with width matching the powered weigh table.

Reject Systems: Options include Air Blast (up to 3lbs), Heavy-Duty Air Blast (up to 6lbs), Pusher (up to 6.5lbs), and Driven Drop Conveyor.

Classification: Systems are classified into 3 Zone (US MAV) and 5 Zone (Canadian Weights and Measures).

Catalog excerpts

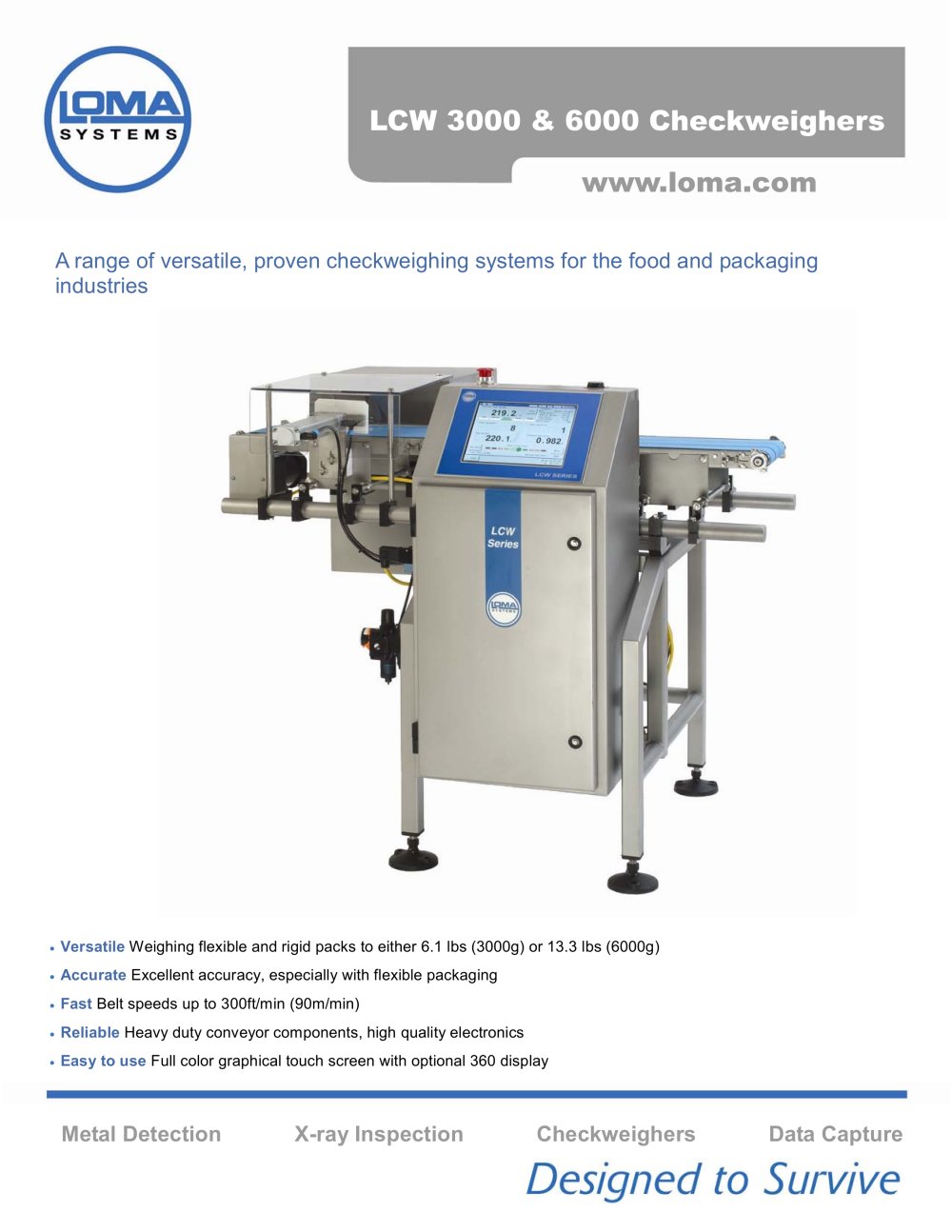

Versatile Weighing flexible and rigid packs to either 6.1 lbs (3000g) or 13.3 lbs (6000g) Accurate Excellent accuracy, especially with flexible packaging Fast Belt speeds up to 300ft/min (90m/min) Reliable Heavy duty conveyor components, high quality electronics Easy to use Full color graphical touch screen with optional 360 display >

Open the catalog to page 1

Finish: 304 stainless steel with bead blast finish Line Height: 26 to 50 (Ա2) 660 to 1270mm (50) Typical System Length: 59є (with standard reject) 1,500mm Maximum Weights: 3000 = 6.51lb (3,000g) 6000 = 13.2lb (6,000g) Max Product Width: 3000 = 11.9 (300mm) 6000 = 15.9Ԕ (400mm) Typical Accuracy, Un: 0.02oz (0.6g) Capacity: 3000 up to 320ppm 6000 up to 250ppm Supply Voltages: 110 or 230V/1ph/N+E 50 or 60Hz Air Supply: 80 to 100 psi (5 to 8 bar) Standard Reject Options: Air Blast, Pusher, Driven Drop Conveyor Environment: NEMA12 (IP55) Belt types: Flat (food quality) belt and tapes Features: 240...
