Loma Systems
Metal Detector Conveyors

Metal Detector Conveyors

Product catalog summary

Overview: The document provides detailed specifications and features of the IQ3 Catalog Conveyors, designed for metal detection in the food and packaging industries. These systems are adaptable, tough, and equipped with variable frequency metal detectors.

Key Features:

Adaptability: True multi-frequency detection allows the system to adapt to new products and packaging quickly.
Ease of Use: Automatic product learning ensures maximum sensitivity without manual adjustments.
Stability: Unique case and coil geometry provide high levels of immunity.
Flexibility: Multiple product memories enable rapid product changeover and data storage.
Durability: The system features IP69K (NEMA PW12) environmental protection for the search head.

Technical Specifications:

Finish: 304 stainless steel with bead blast finish.
Standard Line Height: Adjustable from 30” to 50” in 2” increments.
System Lengths: Available from 48” to 144” in 12” increments.
Belt Widths: Options include 12”, 16”, and 20”.
Speed Range: 12 - 200 ft/min.
Supply Voltages: 110 - 220V/1ph/60Hz.
Air Supply: Requires 80 psi clean dry air.
Reject Types: Includes stop on detect, overhead pusher, air blast, heavy-duty air blast, twin air blast, plough, pusher, slide retract, and pivot drop flap.
Belt Type: Intralox.

Additional Features:

Unique clam-shell design case and coil geometry.
Bifurcated and uniform product screen.
Upgradeable metal detector controls.
True multi-frequency operation from 40 to 900KHz.
Performance Validation System (PVS) for HACCP compliance.
Various communication options for plant integration.
32-bit digital signal processing for enhanced contaminant detection.

Standard Apertures: Heights range from 4 to 22 inches, with corresponding widths.

Contact Information:

USA: Loma Systems Inc, 283 East Lies Road, Carol Stream, IL 60188. Tel: 1-800-USA-LOMA, Fax: (630) 588-0900, Email: [email protected]
Canada: Loma Canada, 333 Wyecroft Road, Unit 11, Oakville, Ontario, L6K 2H2. Tel: (905) 842 4581, Fax: (905) 842 3460, Email: [email protected]

Catalog excerpts

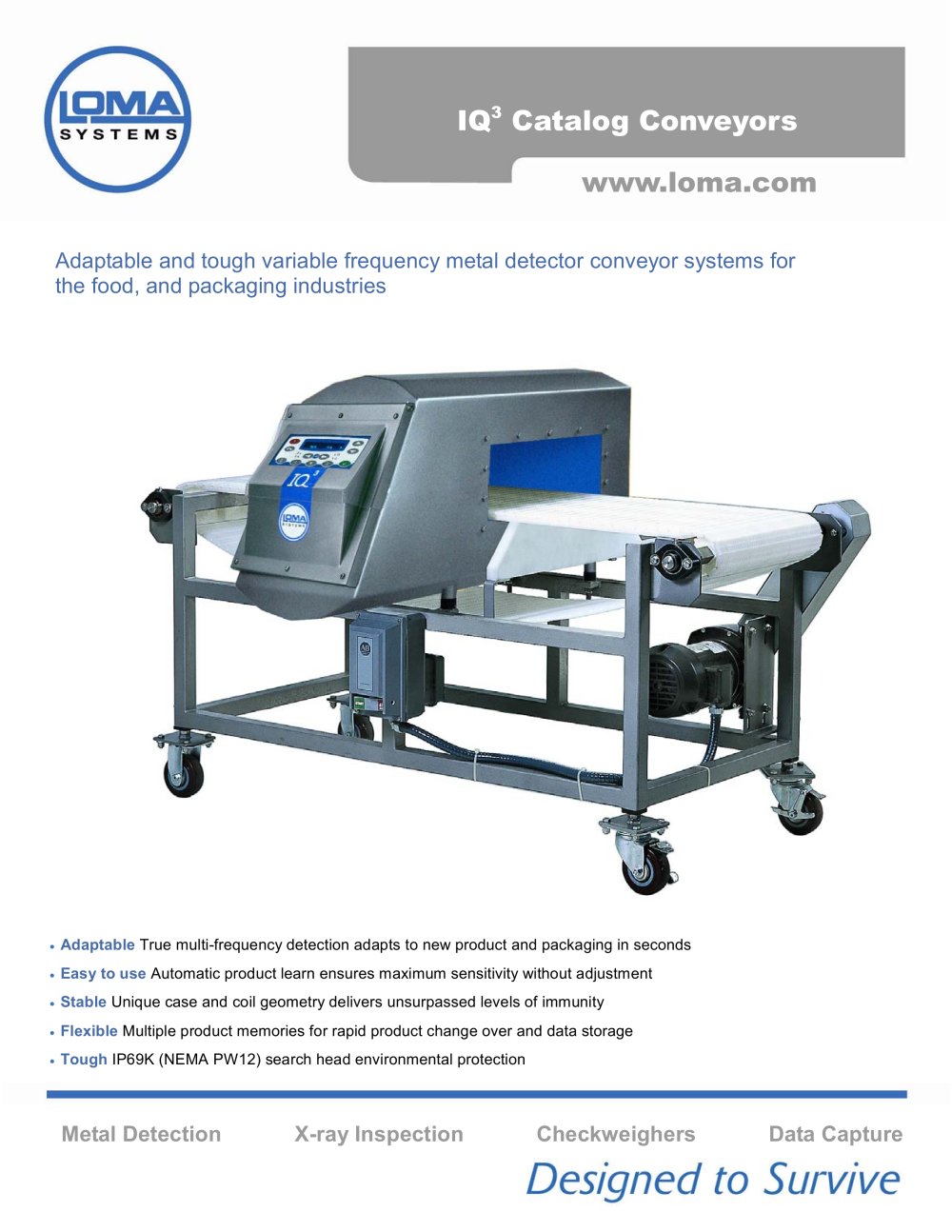

Adaptable True multi-frequency detection adapts to new product and packaging in seconds Easy to use Automatic product learn ensures maximum sensitivity without adjustment Stable Unique case and coil geometry delivers unsurpassed levels of immunity Flexible Multiple product memories for rapid product change over and data storage Tough IP69K (NEMA PW12) search head environmental protection >

Open the catalog to page 1

Finish: 304 stainless steel with bead blast finish Standard Line Height: 30 to 50Ԕ (2 increments) System Lengths: 48Ԕ to 144 (12Ԕ increments) Belt Widths: 12 16Ԕ 20 Search Head Type: IQ 3 Blue (IP69K/NEMA PW12) Speed Range: 12 - 200 ft/min Supply Voltages: 110 - 220V/1ph/60Hz Air Supply: 80 psi clean dry air Reject Types: Stop on detect Overhead pusher Air blast Heavy duty air blast Twin air blast Plough Pusher Slide retract Pivot drop flap Environmental Protection: NEMA PW12 (Search Head) Belt Type: Intralox Options: LomaEnet Strobe light Product guides Reject confirm Alarm PVS stack light Casters...

Open the catalog to page 2
