Loma Systems
Free Fall Metal Detectors

Free Fall Metal Detectors

Product catalog summary

Overview: The document provides detailed specifications and features of Loma Systems' metal detection solutions, specifically designed for the food, pharmaceutical, and chemical industries. The focus is on the FreeFall Metal Detection system.

Specifications:

Material and Finish: Constructed from 304 stainless steel with a bead blast finish.
Pipe Diameters: Available in 100mm (4”), 150mm (6”), and 200mm (8”).
System Lengths: Options include 790mm (31”), 860mm (34”), and 1080mm (43”).
Throughput: Capable of handling 6 T/hr, 13.5 T/hr, and 24 T/hr.
Power Supply: Operates on 230V 1ph N+E or 110V 1ph N+E.
Air Supply: Requires 5 to 8 bar (70 to 90 psi).
Reject Types: Features a bucket reject with a sealed reject port.
Environmental Protection: Rated IP 65 and NEMA12.

Features:

Versatility: Offers a range of apertures to accommodate various pipe sizes.
Ease of Use: Automatic product learning for maximum sensitivity without manual adjustments.
Sensitivity: Advanced signal processing for high detection levels.
Flexibility: Multiple product memories for quick changeovers and data storage.
Efficiency: High-speed reject mechanism minimizes waste.
Safety: ATEX category 3D approved for use in zones 22.

Technical Specifications:

Upgradeable Controls: Metal detector controls can be upgraded.
HACCP Compliance: PVS aids in compliance.
Communication Options: Various options available for plant integration.
Signal Processing: 32-bit digital signal processing enhances contaminant detection.
Head Aperture Sizes: Available in various sizes to fit tight spaces, such as bag makers.

Contact Information: Loma Systems provides contact details for their USA and Canada offices for further inquiries.

Catalog excerpts

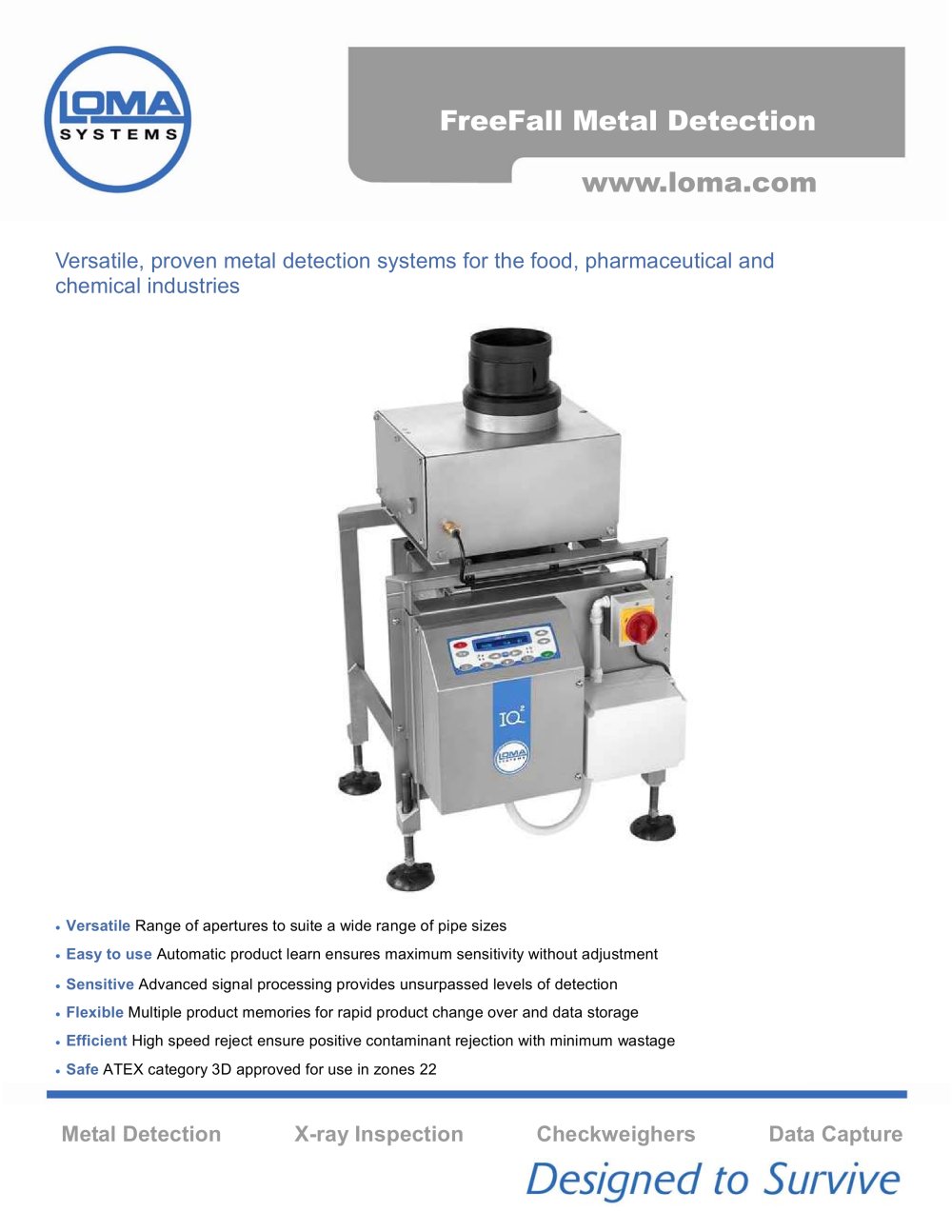

Versatile Range of apertures to suite a wide range of pipe sizes Easy to use Automatic product learn ensures maximum sensitivity without adjustment Sensitive Advanced signal processing provides unsurpassed levels of detection Flexible Multiple product memories for rapid product change over and data storage Efficient High speed reject ensure positive contaminant rejection with minimum wastage Safe ATEX category 3D approved for use in zones 22 >

Open the catalog to page 1

Finish: 304 stainless steel with bead blast finish Pipe Diameters: 100mm (4) 150mm (6Ԕ) 200mm (8) Typical System Lengths: (Foot Mounted) 790mm (31Ԕ) 860mm (34) 1080mm (43Ԕ) Throughput: *6 T/hr *13.5 T/hr *24 T/hr Supply Voltages: 230V 1ph N+E or 110V 1ph N+E Air Supply: 5 to 8 bar 70 to 90 psi Reject Types: Bucket reject with sealed reject port Environmental Protection: IP 65 NEMA12 Options: Remote control box Floor or ceiling mount Beacon stanchion Keyboard cover Reject confirm Test retrieval kit LomaEnet Ethernet Serial link Remote reports PVS Beacon Technical Specification > Upgradeable metal...

Open the catalog to page 2
