CW3 Automatic Checkweigher HeavyWeight

CW3 Automatic Checkweigher HeavyWeight

Product catalog summary

Overview: The CW3 Automatic Checkweigher HeavyWeight is a versatile and reliable weighing system designed for the food and packaging industries. It is capable of weighing bags or cases up to 60kg and 850mm in length with excellent accuracy, especially for flexible packaging. The system operates at belt speeds up to 50m/min and is equipped with heavy-duty conveyor components and high-quality electronics.

Specifications:

Construction: Made from 304 stainless steel with a bead blast finish.
Line Heights: Available from 750mm to 1100mm.
System Lengths: Ranges from 800mm to 3000mm.
Maximum Weight: 60kg.
Product Dimensions: Maximum width of 600mm and length of 850mm.
Accuracy: Typical accuracy is 1.8g.
Capacity: 60 products per minute (ppm).
Supply Voltages: 110 or 230V/1ph/N+E at 50 or 60Hz.
Air Supply: 5 to 8 bar.
Environment: Approved for use from 0°C to 40°C, with an IP65 rating.

Features:

Automatic mean weight correction and sample packs function.
Multi-product memory for up to 500 products.
Brushless motors and high capacity loadcell.
True multi-speed operation.
OIML R51 and EC TAC (MID) approved.
Full colour graphical touch screen for ease of use.

Options and Accessories:

Standard inclusions: Adjustable feet, reject bin, USB socket, multi-speed, pack pitch monitor, LED indicator stack.
Optional features: Servo feedback signal for filler control, serial link, LomaEnet, 316 stainless steel construction.
Belt Type: Food quality flat belt with quick release (no tools required).

Contact Information: Loma Systems, Summit Ave, Southwood, Farnborough, Hampshire, GU14 0NY. Tel: +44 (0)1252 893300, Fax: +44 (0)1252 513322, Email: [email protected]

Catalog excerpts

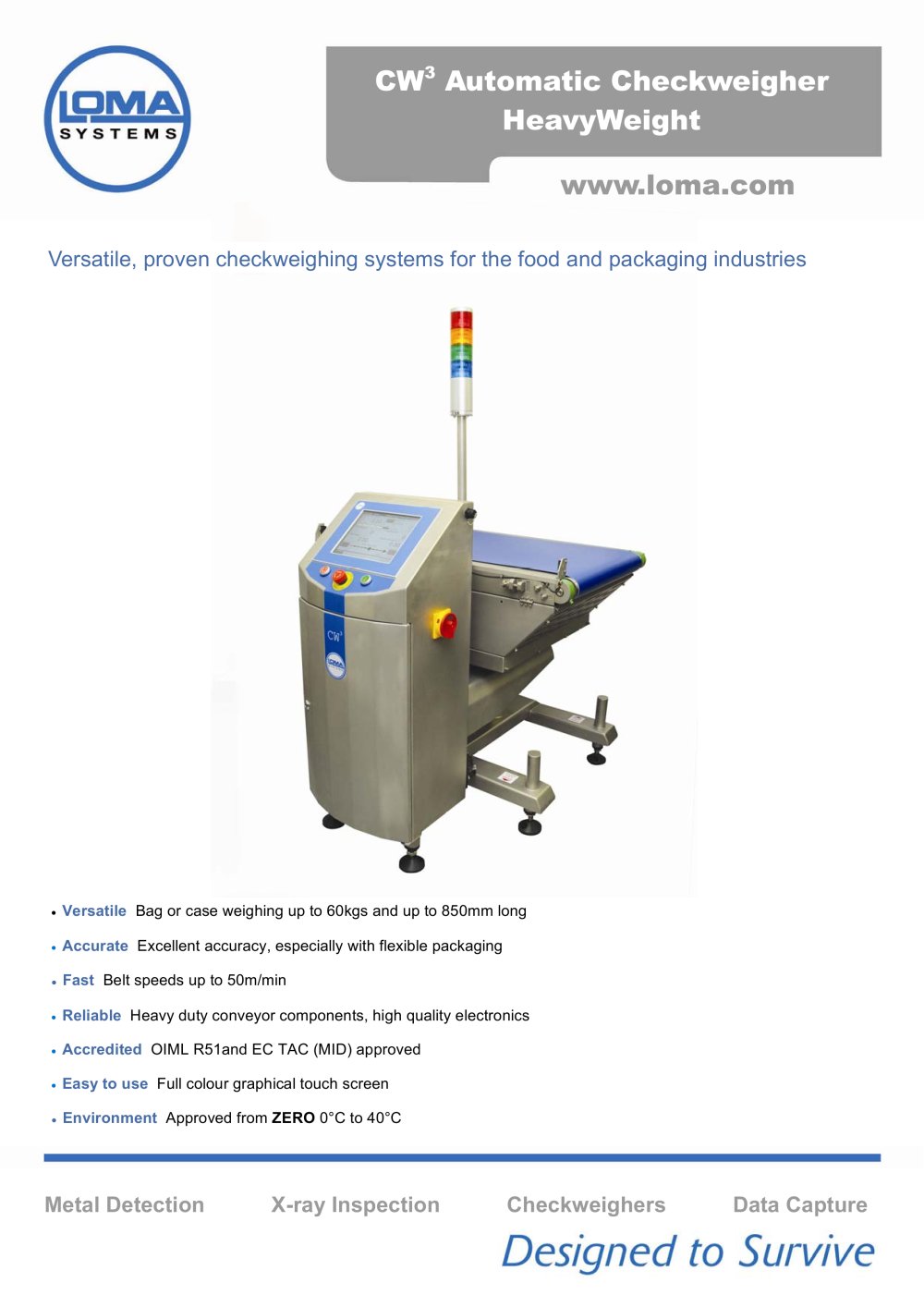

CW3 Automatic Checkweigher HeavyWeight-1

Metal Detection X-ray Inspection Checkweighers Data Capture CW3 Automatic Checkweigher HeavyWeight www.loma.com • Versatile Bag or case weighing up to 60kgs and up to 850mm long • Accurate Excellent accuracy, especially with flexible packaging œ Fast Belt speeds up to 50m/min • Reliable Heavy duty conveyor components, high quality electronics • Accredited OIML R51and EC TAC (MID) approved • Easy to use Full colour graphical touch screen œ Environment Approved from ZERO 0°C to 40°C Versatile, proven checkweighing systems for the food and packaging industries

Open the catalog to page 1

CW3 Automatic Checkweigher HeavyWeight-2

Loma Systems, Summit Ave, Southwood, Farnborough, Hampshire, GU14 0NY Tel: +44 (0)1252 893300 Fax: +44 (0)1252 513322 Email: [email protected] Technical Specification Stainless steel construction Application specific filtering Automatic mean weight correction Sample packs function Multi-product memory (500) Brushless motors High capacity loadcell True multi-speed R51/MID Approved Finish: 304 stainless steel with bead blast finish Available Line Heights: 750mm - 1100mm Available System Lengths: 800mm - 3000mm Maximum Weight: 60kg Maximum Product Width: 600mm Maximum Product Length: 850mm Typical...

Open the catalog to page 2
