Loma Systems
Combo Checkweighers

Combo Checkweighers

Product catalog summary

Overview: The document provides information on integrated checkweighing and metal detection systems, specifically the LCW 3000 & 6000 Combo Systems, designed for the food and packaging industries. These systems are versatile, accurate, compact, reliable, and effective, leveraging Loma's expertise in both technologies to ensure maximum performance.

Specifications:

Weight Capacity: Handles flexible and rigid packs up to 13lb (6kg).
Accuracy: High accuracy, particularly with flexible packaging.
Construction: Made from 304 stainless steel with a bead blast finish.
Line Height: Adjustable from 26 to 50 inches (660 to 1270mm).
System Length: 83 inches (2,100mm) including reject mechanism.
Product Height: Maximum of 6.5 inches (165mm) for metal detection.
Supply Voltages: 110 or 230V/1ph/N+E, 50 or 60Hz.
Air Supply: 80 to 100 psi (5 to 8 bar).
Environment: NEMA12/4X IP55/IP66 rated.
Belt Type: Flat, food quality belt.

Features:

Standard Reject Options: Air Blast, Pusher, Diverter.
Standard Inclusions: Variable speed (PWT only), pack pitch monitor, adjustable feet.
Optional Features: Variable speed (ASDL), servo feedback for filler control, serial link, LomaENet, Ethernet, ruggedized hose-down specification, reject bin full alarm, reject confirmation alarm.

Technical Specifications:

Performance Validation System (PVS).
Application-specific filtering.
Dual frequency option for metallised film applications.
Various communication options for plant integration protocols.
Direct transmitter drive to eliminate thermal drift.
High field strength for noise-free detection.
32-bit digital signal processing for enhanced contaminant detection.

Aperture Sizes:

Heights: 3” (75mm) to 8” (200mm).
Widths for LCW 5000/6000: 10” (250mm) to 22” (550mm).
Widths for LCDL: 12” (300mm) to 24” (600mm).

Contact Information:

USA: Loma Systems Inc, 283 East Lies Road, Carol Stream, IL 60188. Tel: 1-800-USA-LOMA, Fax: (630) 588-0900, Email: [email protected]
Canada: Loma Canada, 333 Wyecroft Road, Unit 11, Oakville, Ontario, L6K 2H2. Tel: (905) 842 4581, Fax: (905) 842 3460, Email: [email protected]

Catalog excerpts

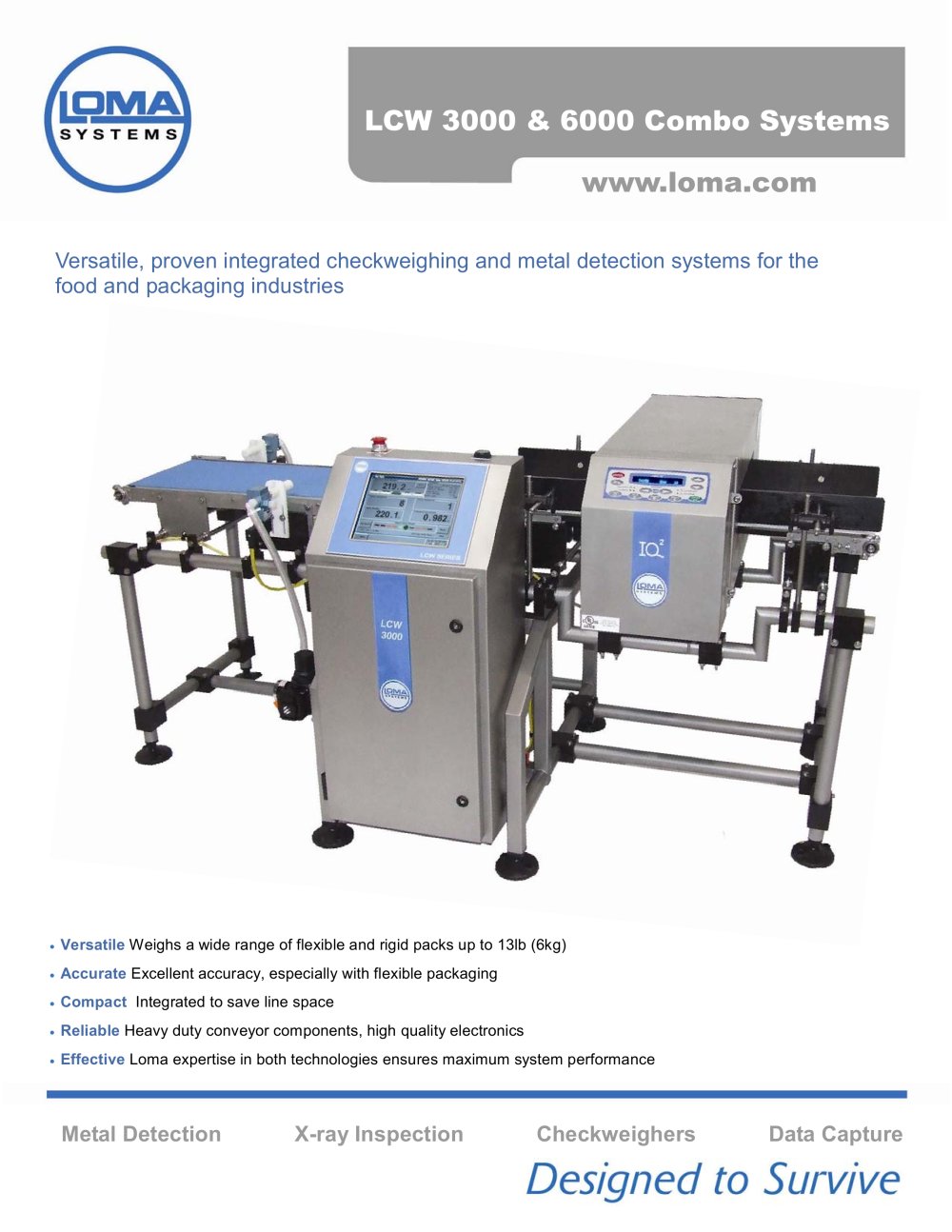

Versatile Weighs a wide range of flexible and rigid packs up to 13lb (6kg) Accurate Excellent accuracy, especially with flexible packaging Compact Integrated to save line space Reliable Heavy duty conveyor components, high quality electronics Effective Loma expertise in both technologies ensures maximum system performance >

Open the catalog to page 1

Finish: 304 stainless steel with bead blast finish Typical Line Height: 26 to 50 (Ա2) 660 to 1270mm (50) Typical System Length: 83є 2,100mm (with reject)) Transport Types: PWT - see LCW 5000/6000data sheet Maximum Product Height 6.5 165mm (Metal Detector) Supply Voltages: 110 or 230V/1ph/N+E 50 or 60Hz Air Supply: 80 to 100 psi 5 to 8 bar Standard Reject Options: Air Blast, Pusher, Diverter Environment: NEMA12/4X IP55/IP66 Belt type: Flat (food quality) belt Standard inclusions: Variable speed - PWT only, Pack pitch monitor, Adjustable feet Options: Variable speed - ASDL, Servo feedback - for...

Open the catalog to page 2
