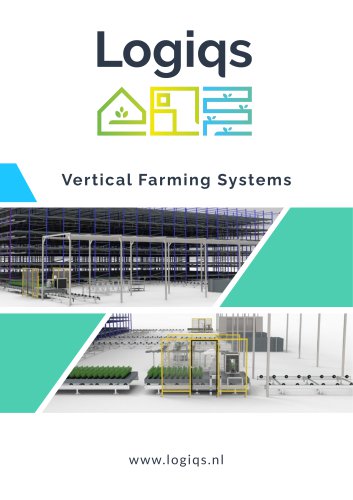

Vertical Farming Systems
Vertical Farming Systems
The document provides an overview of the Greencube vertical cultivation system by Logiqs, emphasizing cost-effective design and advanced technology for greenhouse cultivation.
Shuttle System
The 2D-Shuttles, integral to the system, move between levels using Shuttle Lifts. These lifts are designed for durability and reliability, based on over 25 years of experience. The shuttles operate without complex rail systems or always-on sensors, enhancing flexibility and reducing costs.
Technical Specifications
- 2D-Shuttle: Transport capacity of 40 benches/hour, charge time of 4 hours, operating speed of 0.8 m/s, and a battery capacity of 60 Ah. It operates in temperatures from -20 to +40°C with a maintenance interval of 6 months.
- Shuttle Lift: Lift capacity up to 1,500 Kg, operating speed of 0.25 m/s, and a maximum height of 24 meters. It includes security sensors and has a maintenance interval of 6 months.
Bench Design
The rolling bench design enhances system flexibility and durability. Ebb and flood benches are adaptable for various crops, with industrial-grade plastic linings and aluminum subframes ensuring longevity. The Dat-A-Control software manages crop control and registration, optimizing irrigation and production management.
Material Quality
Logiqs uses a superior aluminum alloy (EN-AW-6063 T66) for bench construction, providing enhanced structural integrity and durability. The benches feature reinforced profiles and thicker crossbeams to support the weight of the benches and plant material.
Design and Configuration
The 3D Configurator tool allows users to design and experiment with different layouts for their grow facilities. It facilitates collaboration with sales engineers to optimize logistics solutions.
Company Overview
Logiqs, with over 45 years of experience, specializes in designing and installing logistical systems for greenhouses. Their solutions aim to enhance profitability and competitiveness in the horticultural market, catering to various growers including those of potted plants, cut flowers, and vegetables.
Catalog excerpts
The design of the Greencube vertical cultivation system is focused on keeping investment costs down! The 2D-Shuttles don’t require complicated rail systems, and can independently move between bench rows. No other always-on sensors are required. The 2D-Shuttles move between the levels by using our Shuttle Lifts, that can transport both the shuttles and the benches between levels. Our durable and reliable Shuttle Lifts are the result of more than 25 years experience in multi-level greenhouse cultivation systems.
Open the catalog to page 2
Transport capacity: 2D-Shuttle Shuttle Lift Lift capacity:
Open the catalog to page 3
The proven LOGIQS rolling bench design further contributes to the flexibility and durability of the Greencube system. The Ebb and flood benches can be configured a large diversity of crops. The industrial grade plastic linings and the aluminium subframes ensure a long lifespan. The control and registration of the crop is done using Dat-A-Control, the most advanced greenhouse logistical control software. This also makes individual bench irrigation registration and gives growers the best tools to manage their crops during production.
Open the catalog to page 4
WHY CHOOSE LOGIQS BENCHES Better bench reinforcements Each side of the Logiqs bench has a small aluminum profile going from the front side to the first crossbeam. This provides unmatched structural integrity to the bench so the front sides do not bend. Our benches also use thicker crossbeams for the wheel beams. The wheel beams are crucial since the weight of the whole bench and plant material rests on the 4 wheels. Superior aluminum alloy We use a hardened marine alloy for our aluminum (EN-AW-6063 T66). Compared to our competitors, the Logiqs mobile bench side and front profiles are also thicker....
Open the catalog to page 5
DESIGN YOUR GREENCUBE Convert all your wishes and ideas into a 3D design with the help of our 3D Configurator. Experiment with different layouts, create multiple design iterations, calculate production capacity, all while seamlessly collaborating with our sales engineers in order find the best logistics solution for your crop.
Open the catalog to page 6
If you would like to quickly configure the 3D layout of your new grow facility, use our free 3D Configurator to bring your vision to reality. And whenever you’re ready, you can get in touch with our Sales Engineers to discuss your layout or you can request a quote for your system.
Open the catalog to page 7
Logiqs has more than 45 years of experience and know-how, gained in the field of internal transport and logistics systems for greenhouses. Our industry leading solutions help our clients achieve a higher profitability and a stronger competitive position within the worldwide horticultural marketplace. We advise, design, produce and install complete logistical systems, manual or completely automated, for growers specialized in: potted plants, cut flowers, tree nurseries, flower bulbs and vegetables. LOGIQS B.V. Honderdland 841 | 2676 LV Maasdijk | The Netherlands +31 (0) 174 514 141 | [email protected]...
