SLS Plus Sensor
2Pages

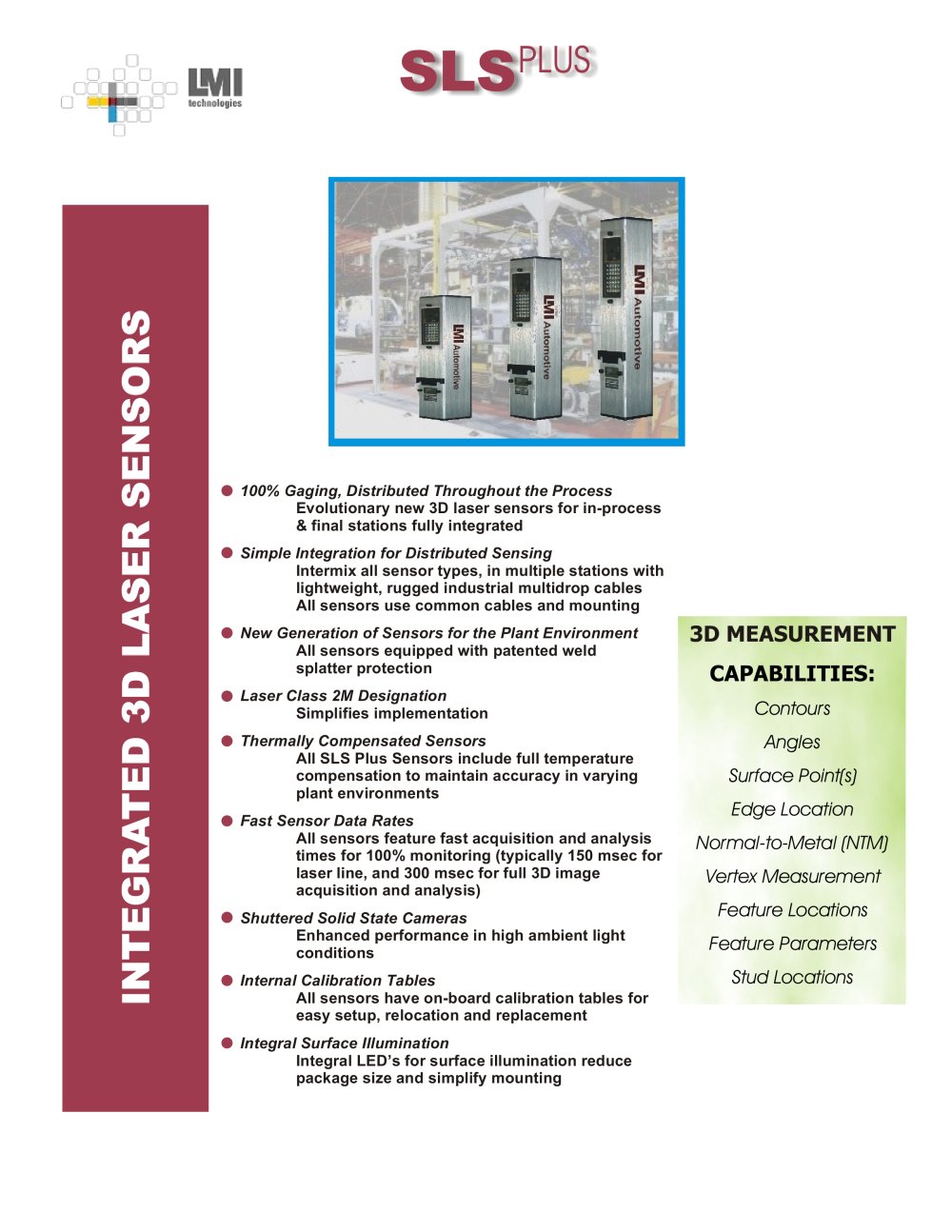

INTEGRATED 3D LASER SENSORS 3D MEASUREMENT CAPABILITIES: Contours Angles Surface Point(s) Edge Location Normal-to-Metal (NTM) Vertex Measurement Feature Locations Feature Parameters Stud Locations 100% Gaging, Distributed Throughout the Process Evolutionary new 3D laser sensors for in-process & final stations fully integrated New Generation of Sensors for the Plant Environment All sensors equipped with patented weld splatter protection Fast Sensor Data Rates All sensors feature fast acquisition and analysis times for 100% monitoring (typically 150 msec for laser line, and 300 msec for full 3D image acquisition and analysis) Shuttered Solid State Cameras Enhanced performance in high ambient light conditions Internal Calibration Tables All sensors have on-board calibration tables for easy setup, relocation and replacement Simple Integration for Distributed Sensing Intermix all sensor types, in multiple stations with lightweight, rugged industrial multidrop cables All sensors use common cables and mounting Laser Class 2M Designation Simplifies implementation Thermally Compensated Sensors All SLS Plus Sensors include full temperature compensation to maintain accuracy in varying plant environments Integral Surface Illumination Integral LED’s for surface illumination reduce package size and simplify mounting SLSPLUS

SENSOR FIELD OF VIEW SENSOR DIMENSIONS MODEL FOV VALUE -35 -60 -100 FOV X 35 mm. 60 mm. 100 mm. A B C S FOV Y 35 mm. 60 mm. 100 mm. mm. mm. mm. mm. FOV Z 50 mm. 60 mm. 100 mm. EOL-100-XXX x 69.9 69.9 170 100 EOL-200-XXX x x 69.9 69.9 287 200 EOL-400-XXX x x x 69.9 69.9 286 400 EOL-600-XXX x x x 69.9 69.9 358 600 EOL-800-XXX x x x 69.9 69.9 431 800 EOL-1000-XXX x x x 69.9 69.9 504 1000 EOL-1200-XXX x x x 69.9 69.9 577 1200 EOL-1400-XXX x x x 69.9 69.9 650 1400 EOL-1600-XXX x x 69.9 69.9 722 1600 EOL-1800-XXX x x * 69.9 69.9 795 1800 ACCURACY (mm) 3 Sigma < 0.05 < 0.05 < 0.1 FOV VALUE SENSOR...
