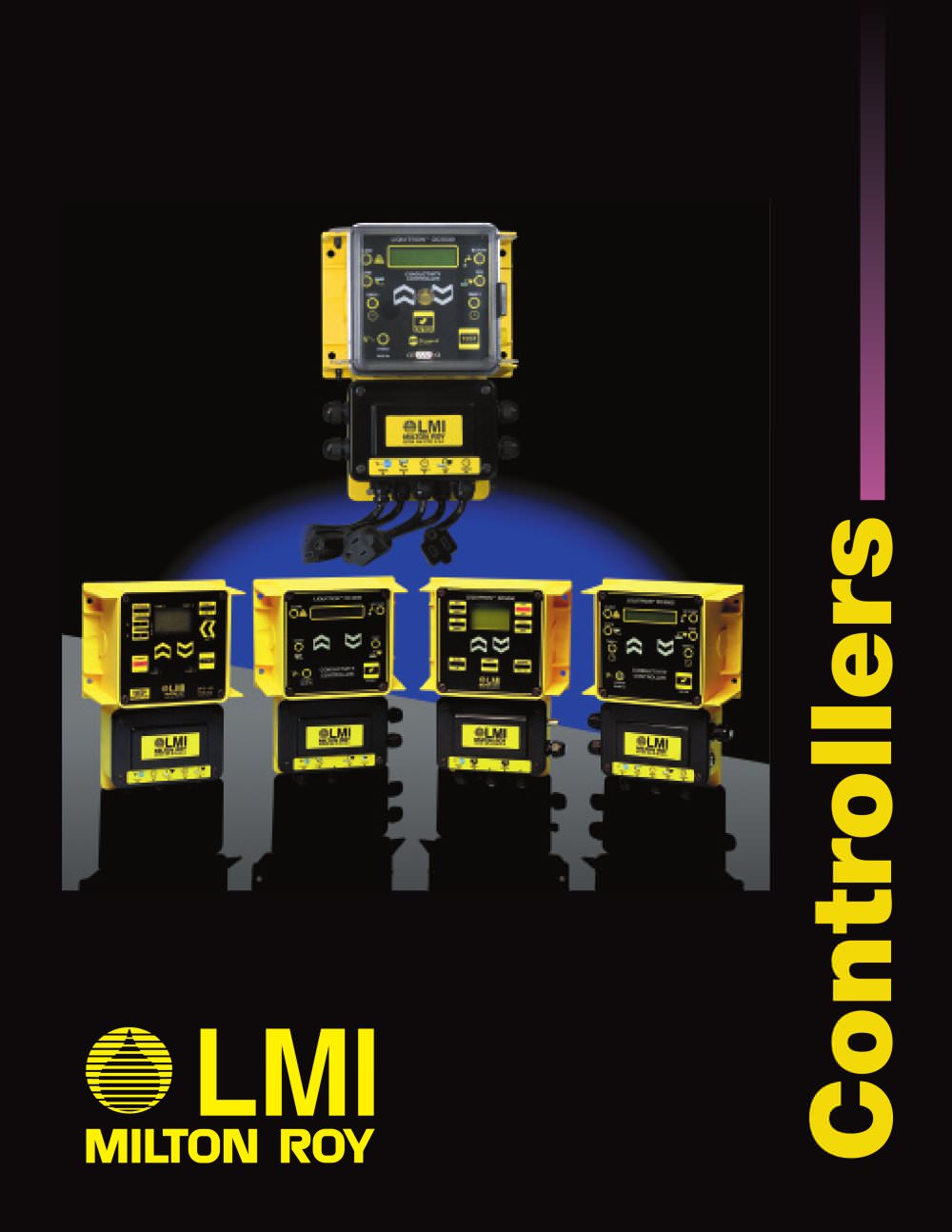

LMI Controllers Brochure #1811

Product catalog summary

Introduction
Liquid Metronics, located in Ivyland, Pennsylvania, has been a leader in the water treatment industry for over 25 years, offering a wide range of electronic metering pumps and accessories. Their products cater to both domestic and sophisticated custom applications.

Product Offerings

Conductivity Controllers: Designed for cooling tower and boiler applications, these controllers offer features such as dual biocide control, multiple inhibitor feed modes, solenoid or motorized valve control, and programmable 4-20 mA output. They also include built-in equipment test circuits.
DC5500 Series: Offers remote communication capabilities, multiple inhibitor feed modes, and a 32-character backlit LCD display. It supports up to 31 controllers for data communication.
pH & ORP Controllers (DP5000/DR5000 Series): These controllers provide dual-channel output, alarm outputs with programmable set points, and probe diagnostics.
Flow Controllers (FS5000 Series): Designed for cooling tower applications with features like proportional output control and flow meter input.
Accessories: Includes pH/ORP electrodes, flow switches, conductivity probes, and motorized valves.

Remote Communications Module
The module allows communication with up to 31 DC5500 controllers, enabling remote viewing and programming. It supports wireless paging or email alerts for alarm conditions and data downloads.

Conclusion
LMI continues to innovate in the water treatment industry by providing versatile and reliable products that meet a wide range of chemical-feed applications. Their commitment to quality and customer service is evident in their comprehensive product offerings and advanced technological solutions.

Catalog excerpts

Multiple inhibitor feed modes > Solenoid or motorized valve control > Open- / closed-loop system programming > Built-in equipment test circuits > Designed for cooling tower applications > Designed for cooling tower / boilerapplications > Two (2) water meter inputs to determine the exact amount of waterlost to evaporation to save utility cost > Dual biocide control > Multiple inhibitor feed modes > Continuous or timed boiler sampling > 32 character, two (2) backlit LCD data display lines > Multiple inhibitor feed modes > Three (3) tank level indicator / alarms > Solenoid or motorized valve control...

Open the catalog to page 2

Օ Flow switch input Dual-channel output fully programmable Օ Three (3) 115 VAC outputs [flow switch response] On/off and/or proportional pump control Օ Alarm output with programmable set points One (1) 115 VAC output [continuous power] Օ Drain valve control with programmable timers Inexpensive pump controller Օ 3-point proportional pump control Probe diagnostics with 1- or 2-point calibration > Օ Proportional output control for two (2) pumps Communicate with up to 31 DC5500 Controllers Օ Remote Viewing of real-time conductivity temperature and alarm conditions Accepts 4 - 20 mAor 1 - 5 VDCinputs...

Open the catalog to page 3

Liquitron,LiquiComm and DataComm are trademarks of Liquid Metronics Incorporated. Palm Pilot is a trademark of Palm,Inc. Windows is a registered trademark of Microsoft Corporation. Replaces same of D 9/01 with 1811.E 11/03 2003 LMI Milton Roy - All Rights ReservedPrinted in USA Specifications subject to change without notice. >

Open the catalog to page 4
