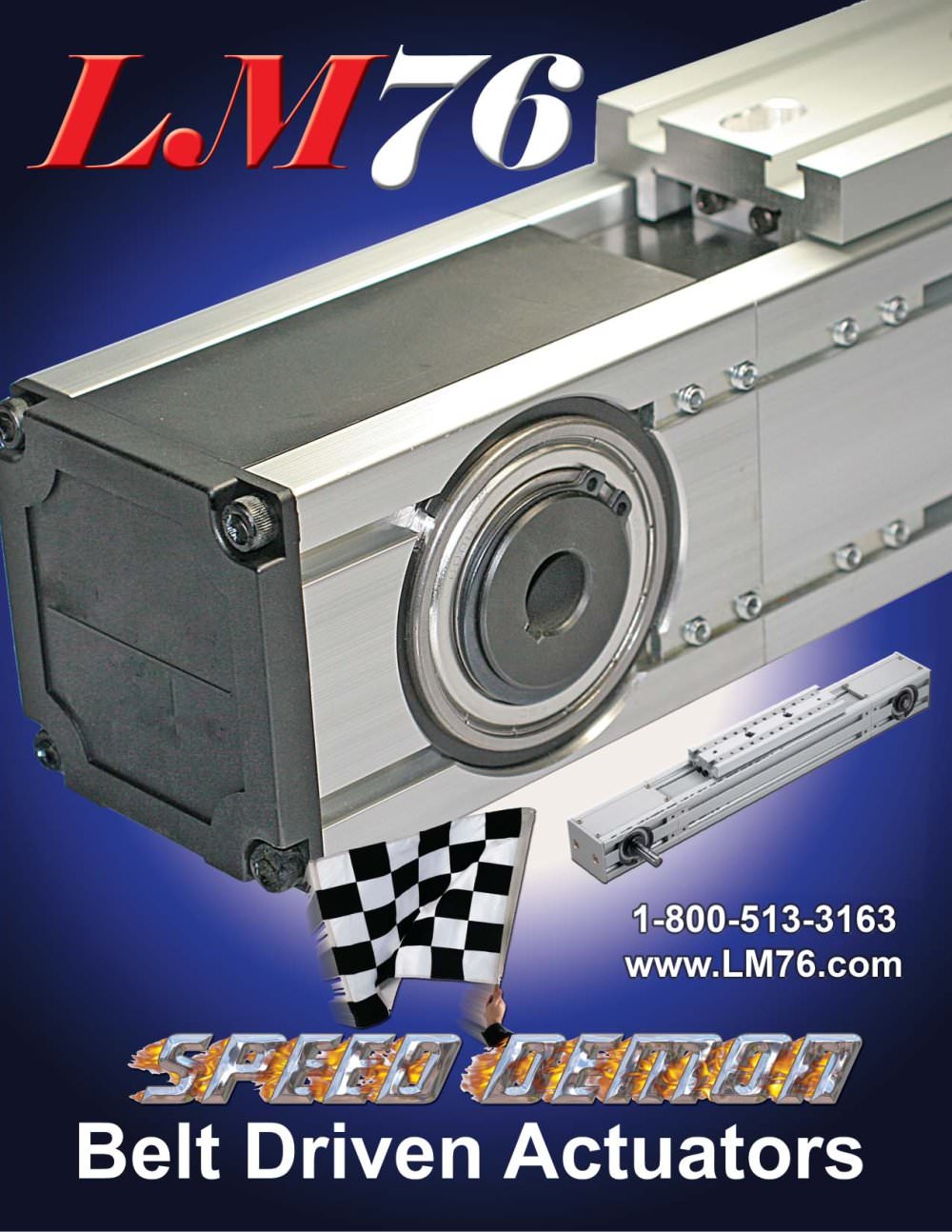

Speed Demon Belt Actuators

Product catalog summary

Specifications:
The document provides detailed specifications for various actuator models (SPD 41, 61, 81) including load moments, motor torque, and power calculations. Static and dynamic loads are specified for radial and axial forces, as well as moments in x, y, and z directions.

Procedures:
Motor torque is calculated using the formula Mm = Mv + (Fּ Dp/2), where Dp is the pulley diameter. Motor power is calculated with Pm = (Mm x n/9550), where n is the RPM.

Standards and Recommendations:
The document outlines service factors based on application conditions, such as shock and vibration levels, and provides stroke factors for different stroke lengths. It also specifies maximum running speed and length for actuators.

Actuator Options and Materials:
Various mounting options are available, including L Mount, Block Mount, Leveling Block, and Bottom Mounting. Actuators are made from extruded aluminum and chrome-plated steel, with dual groove rollers sealed for life.

Engineering Notes:
Notes provide additional details on actuator weight per meter, deflection calculations when used as a beam, and actuator precision metrics such as repeatability and positioning accuracy.

Contact Information:
SPD Engineering is located at 140 Industrial Drive, E. Longmeadow, MA 01028, with contact numbers provided for further inquiries.

Catalog excerpts

Starting Torque No Load Nm0.3 Calculating Motor Torque Mm = Mv + ( F Dp/2 )Dp = Pulley Diameter ( 61 ) 39.8 Calculating Motor Power Pm ( Mm x n/9550 )Pm = Motor Powern = Rpm >

Open the catalog to page 3

Load MomentStatic Dynamic Frad ( N )19301680Fax ( N ) 14851100Mx ( Nm ) 22.713.7My ( N׷m )30.817.4 Mz ( Nm )32.424.1 > Starting Torque No Load Nm0.3 Motor & GearboxAdaptor PlatesAvailable > Calculating Motor Torque ConnectingShaftsAvailable > Mm = Mv + ( F Dp/2 )Dp = Pulley Diameter ( 61 )41.38 1. L Mount2. Block Mount3. Leveling Block4. Bottom Mounting Calculating Motor Power Mounting Feet4 Standard OptionsOptions: > Pm ( Mm x n/9550 )Pm = Motor Powern = Rpm (Special Hole Locations) Maximum Running Speed8 m/sMaximum Length4m without a joint ( Special Order lengths to 6M )BeltS5M - Quite Running...

Open the catalog to page 4

Load MomentStatic Dynamic Frad ( N )31802280Fax ( N ) 24301780Mx ( Nm)33.218.4 My ( N׷m )6440.9 Mz ( Nm )67.248.3 > Starting Torque No Load Nm0.5 Calculating Motor Torque Mm = Mv + ( F Dp/2 )Dp = Pulley Diameter ( 81 ) 63.66 Calculating Motor Power Pm ( Mm x n/9550 )Pm = Motor Powern = Rpm Deׯ̂ ection When Actuator is employed as a beam Body and Slider BlockExtruded AluminumAL6N01-T5ShaftingRC60 Precision Chrome Plated Steel Shafting Dual Groove RollersSteel/Lubricated Sealed for the Life of the Roller d =E x I x 192 f x L > 3

Open the catalog to page 5

SPEED DEMON Actuator 10L : LӔ Style mounting Clamp 10 pairs Cross Section Width 1000mm 20-300-30T : Tapped & Machined Holes on Bottom of Actuator - First Tap Posi- tion 20mm from Motor Side - End of Rail Tapped Holes every 300mm on Center (Travel Length Stroke) 5P : Straightness and Height Adjustment Mounting Plate - 5 pcs. 5C : Block Mounting Clamp - 5 Pairs >

Open the catalog to page 6
