Product catalog summary

Overview: The document provides a comprehensive overview of the products and services offered by Achter Elektronik AG and its subsidiary, Lm-therm GmbH, focusing on industrial climate control solutions. It includes historical context, product specifications, and technical guidelines for heating and cooling systems in control cabinets.

Company Background: Achter Elektronik AG, established in 1993, specializes in electro-technology, electronics, and cable technology. Lm-therm GmbH, founded in 1961, focuses on industrial climate control, offering products like thermostat-controlled heating systems and PTC heaters.

Product Offerings: The company provides a range of products including thermostat-controlled heating systems, PTC heaters, fan heaters, control systems, sensors, coolers, and accessories. These products are designed to maintain optimal climate conditions within control cabinets, preventing issues like condensation and temperature fluctuations.

Technical Specifications: The document outlines the importance of climate control in control cabinets, detailing the need for heating and cooling to prevent condensation and ensure equipment reliability. It provides guidelines on selecting appropriate heating systems based on factors like ambient temperature, humidity, and enclosure type.

Heating and Cooling Calculations: Detailed formulas and tables are provided to calculate the required heating and cooling power based on enclosure size, material, and environmental conditions. This includes considerations for dew point temperatures and thermal dissipation losses.

Installation Guidelines: Recommendations are given for the installation of heating and cooling systems, emphasizing the importance of proper placement for effective heat distribution and air circulation. The document advises on avoiding interference with natural convection and the placement of heat-sensitive components.

Customer-Specific Solutions: Achter Elektronik AG offers customized solutions for specific customer needs, encouraging clients to contact them for tailored advice and project proposals.

Heating Systems:

Thermostat-Controlled Heaters: These heaters include a built-in bimetal temperature controller, ensuring operational reliability and energy efficiency. They operate without an external temperature controller, offering a price advantage. The switch-off temperature is set at 55°C, but can be modified upon request.
PTC Heaters: These heaters are self-controlling with a dynamic heat-up phase and can operate within a wide voltage range (110 V to 265 V). They do not switch off at a defined point, and an upstream controller is recommended due to high switch-on currents.

Tropical Version: For tropical regions, the operating temperature is adjusted to switch on at <35°C and switch off at 65°C. Customers should indicate "T" when ordering tropical versions.

Mounting and Connection:

Heaters can be mounted using snap fitting on 35 mm DIN rails or screw fastening with individual hole spacing.
Connection options include connecting leads or lead out terminals, with specifications varying by device.

Fuse Protection: Thermostatic heaters can be fused equal to the rated current consumption, while PTC heaters require a delayed-action fuse at five times the rated current due to high switch-on currents.

Custom Solutions: Lm-therm offers flexibility in heating power, mounting techniques, connection methods, enclosure dimensions, shape types, operating voltages, and temperature ranges to meet specific customer needs.

Control Systems: The document encourages inquiries for controllers, sensors, or heating devices not found in the catalog, highlighting the availability of customer-specific versions subject to exclusivity agreements.

Control Cabinet Heating Devices:

Specifications: Available in multiple voltage options (115 V AC, 230 V AC, 400 V AC, 440 V AC) with power ratings ranging from 130 W to 500 W. All devices weigh 1400 g.
Technical Details: Protection class I, IP 54 or IP 65 protection types, temperature settings from 25°C to 65°C, vertical mounting position, and optional connecting leads or lead-out terminals.

PTC Heaters:

Specifications: Available for voltages 24 V AC/DC to 265 V AC/DC with power ratings from 10 W to 300 W. Weight varies from 125 g to 1500 g depending on the model.
Technical Details: Protection class II, IP 54 or IP 65 protection types, self-control temperature behavior, dynamic heating-up, and optional auxiliary fan for improved air distribution.

Fan Heaters:

Specifications: Available in 230 V AC with power ratings from 150 W to 500 W. Weight is approximately 2 kg.
Technical Details: Protection class I, IP 20 protection type, temperature limiting features, airflow rates from 30 m³/h to 120 m³/h, and vertical mounting position.

Additional Components:

Controllers and Sensors: The document includes a guide for selecting appropriate controllers and sensors for heating and cooling applications, with details on temperature and humidity controllers, mounting options, and sensor types.

Key Features:

Multiple connection and mounting options for flexibility in installation.
Protection against overheating and dynamic temperature control for efficient operation.
Optional auxiliary fans and special versions available upon request.

Temperature Sensors: The document lists different types of temperature sensors, including thermocouples (NiCr-Ni, Fe-CuNi, Cu-CuNi, Pt10Rh-Pt) and NTC sensors, with operating ranges from -270°C to +1820°C. These sensors are available in various forms such as cable, duct, immersion, and screw-in sensors.

Thyristor Power Controllers: These controllers are available for single-phase and three-phase systems with inputs of 0-10 V or potentiometer. They can be mounted on rails or fixed with screws and are suitable for controlling heating and cooling processes.

Pressure Sensors: The document describes pressure sensors with a range of 20-4500 Pa and protection type IP 54. It includes differential pressure switches, manometers, and measuring transducers.

Electro-mechanical Temperature Controllers: These controllers are used for heating and cooling devices in industrial settings. They feature various setting ranges and sensor types, with operating voltages from 24 V to 250 V AC. The controllers are available with different contact types and mounting options.

Electronic Temperature Controllers: The document details electronic controllers with modular designs, offering multiple switching steps and feeler inputs. They include features like automatic parameter storage, adjustable setpoint values, and hysteresis. These controllers are suitable for controlling heating and cooling processes and are available with various mounting options and protection types.

Applications and Customization: The document emphasizes the company's ability to provide custom-made control systems and encourages inquiries for devices not listed in the catalog. Applications include control systems for liquid and gaseous media, with options for different temperature ranges and sensor types.

Specifications: The document lists multiple products with their specifications, including voltage, air flow, speed, noise level, weight, and protection type. For example, the 24 V DC fan has a speed of 3050 rpm and a noise level of 42 dB(A).

Procedures: Installation instructions are provided for various components, including mounting dimensions and cut-out sizes for fans and filters. The document also mentions the inclusion of mounting materials and NTC sensors for controlled filter fans.

Standards and Recommendations: The document specifies protection classes and types, such as IP55/IP53 for hoseproof filter fans. It also mentions compliance with CE, TÜV, and ENEC standards.

Product Groups: Products are categorized into groups, such as P3 for fans and P6 for light fixtures. Each group includes specific types and models with detailed descriptions.

Accessories: A range of accessories is listed, including mounting rails, snap fittings, and ground wires. The document also describes special design options and customer-specific production capabilities.

Key Data from Tables: The tables provide a comprehensive list of product specifications, including order numbers, weights, and dimensions. For instance, the LV 300 filter fan has a weight of 1800 g and dimensions suitable for specific installation cut-outs.

Conclusion: The document serves as a technical guide for selecting and installing electronic components and accessories, emphasizing product specifications, installation procedures, and compliance with industry standards.

Application and Function: The document discusses cooling elements using Peltier technology, designed for cooling small control cabinets, operating boxes, switch panels, industrial PCs, CRT monitors, and flat screens. These devices operate at 24 V DC and can be mounted in various positions without refrigerants, offering a compact and non-polluting solution.

Advantages over Compressor Cooling Units: The Peltier cooling elements are compact, can be mounted in any position, and do not use refrigerants, making them environmentally friendly and efficient.

Technical Data: The document provides specifications for different models (K-P 30, K-P 50, K-P 75, K-P 100, K-P 150) with varying cooling capacities, nominal voltages, currents, operating temperatures, and weights. Accessories such as temperature controllers and power supplies are available.

Selection and Output Diagrams: The document includes formulas and examples for selecting the appropriate cooling unit based on temperature differences and desired cooling capacity. Output diagrams for models K-P 50, K-P 100, and K-P 150 illustrate cooling capacity against ambient temperature.

Company Divisions and Services: Achter Elektronik AG offers a range of services including assembly, commissioning, packing, and logistics. They provide custom-made products and services, adhering to ISO 9001 standards. The company emphasizes flexibility, quality testing, and cooperative partnerships with clients.

Contact Information: The document provides contact details for Achter Elektronik AG, including addresses, phone numbers, and email addresses for their locations in Germany.

Catalog excerpts

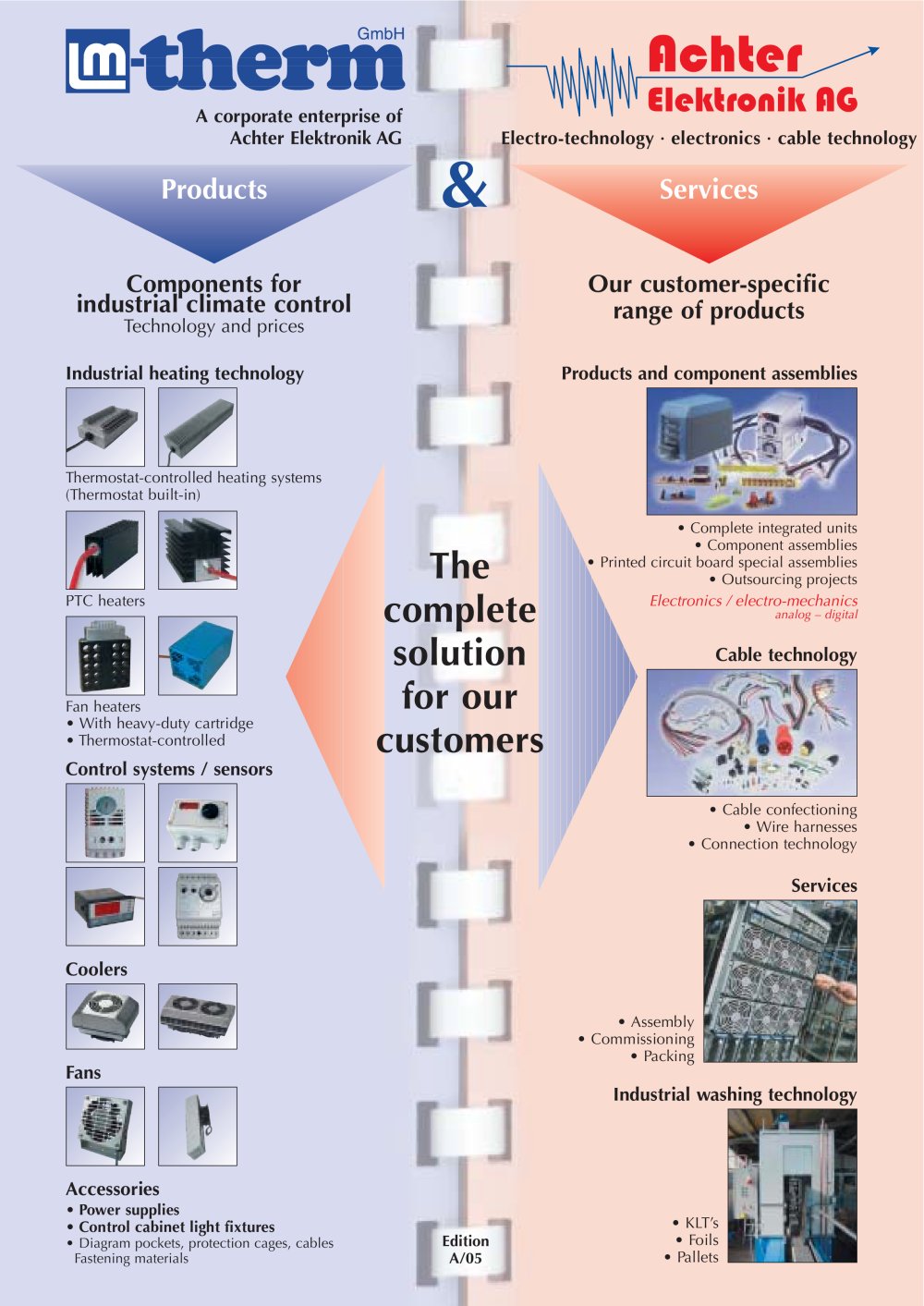

Thermostat-controlled heating systems(Thermostat built-in) > Complete integrated unitsՕ Component assemblies Printed circuit board special assembliesՕ Outsourcing projects PTC heaters > Electronics / electro-mechanics > analog digital Fan heaters֕ With heavy-duty cartridge Thermostat-controlled > Օ Cable confectioning Wire harnessesՕ Connection technology > Assembly Օ Commissioning Packing > ՕPower suppliesControl cabinet light fixtures Օ KLTsҕ Foils Pallets > ՕDiagram pockets, protection cages, cablesFastening materials EditionA/05 >
