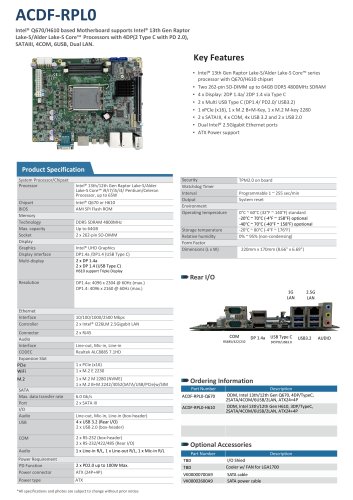

ACDF-RPL0

Product catalog summary

Product Specification Summary

System Processor/Chipset Security: The system includes TPM2.0 on board for enhanced security.

Watchdog Timer: The timer is interval programmable from 1 to 255 seconds/minutes, with an output for system reset.

Environmental Specifications: The operating temperature ranges from 0°C to 60°C standard, with optional ranges of -20°C to 70°C and -40°C to 70°C. Storage temperature ranges from -20°C to 80°C, and relative humidity is 0% to 95% non-condensing.

Form Factor: The dimensions are 220mm x 170mm (8.66" x 6.69").

Key Features: The motherboard supports Intel® 13th Gen Raptor Lake-S/Alder Lake-S Core™ processors with Q670/H610 chipset, up to 64GB DDR5 4800MHz SDRAM, multiple display and USB options, dual Intel® 2.5Gigabit Ethernet ports, and ATX power support.

Processor and Chipset: Supports Intel® 13th/12th Gen Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3/Pentium/Celeron processors, up to 65W, with Intel® Q670 or H610 chipset.

Memory: DDR5 SDRAM 4800MHz technology with a maximum capacity of up to 64GB using 2 x 262-pin SO-DIMM sockets.

Display: Features Intel® UHD Graphics with multiple display interfaces including DP1.4a and DP1.4 (USB Type C), supporting resolutions up to 4096 x 2304 @ 60Hz.

Ethernet: Includes 10/100/1000/2500 Mbps interface with 2 x RJ45 connectors.

Audio: Realtek ALC888S 7.1HD CODEC with line-out, mic-in, and line-in interfaces.

Expansion Slots: Includes 1 x PCIe (x16), 1 x M.2 E 2230, 1 x M.2 M 2280 (NVME), and 1 x M.2 B+M 2242/3052 (SATA/USB/PCIe) with SIM.

SATA: Supports a maximum data transfer rate of 6.0 Gb/s with 2 x SATA III ports.

I/O: Features multiple audio, USB, and COM ports, including 4 x USB 3.2 (Rear I/O) and 2 x USB 2.0 (box-header).

Power Requirement: Utilizes ATX power connector (24P+4P) and power type.

Ordering Information: Includes part numbers for different configurations with Q670 and H610 chipsets.

Optional Accessories: Lists part numbers for SATA cables, cooler with fan for LGA1700, and I/O shield.

Additional Features: Includes PD Function with 2 x PD2.0 up to 100W Max and 2 x Intel® I226LM 2.5Gigabit LAN.

Catalog excerpts

Intel® Q670/H610 based Motherboard supports Intel® 13th Gen Raptor Lake-S/Alder Lake-S Core™ Processors with 4DP(2 Type C with PD 2.0), Key Features ■ Intel® 13th Gen Raptor Lake-S/Alder Lake-S Core™ series processor with Q670/H610 chipset ■ Dual Intel® 2.5Gigabit Ethernet ports System Processor/Chipset • Ordering Information Part Number Power connector *All specifications and photos are subject to change without prior notice ^ Optional Accessories TBD I/O Shied VK00002600A9 SATA power cable Part Number
