Overview

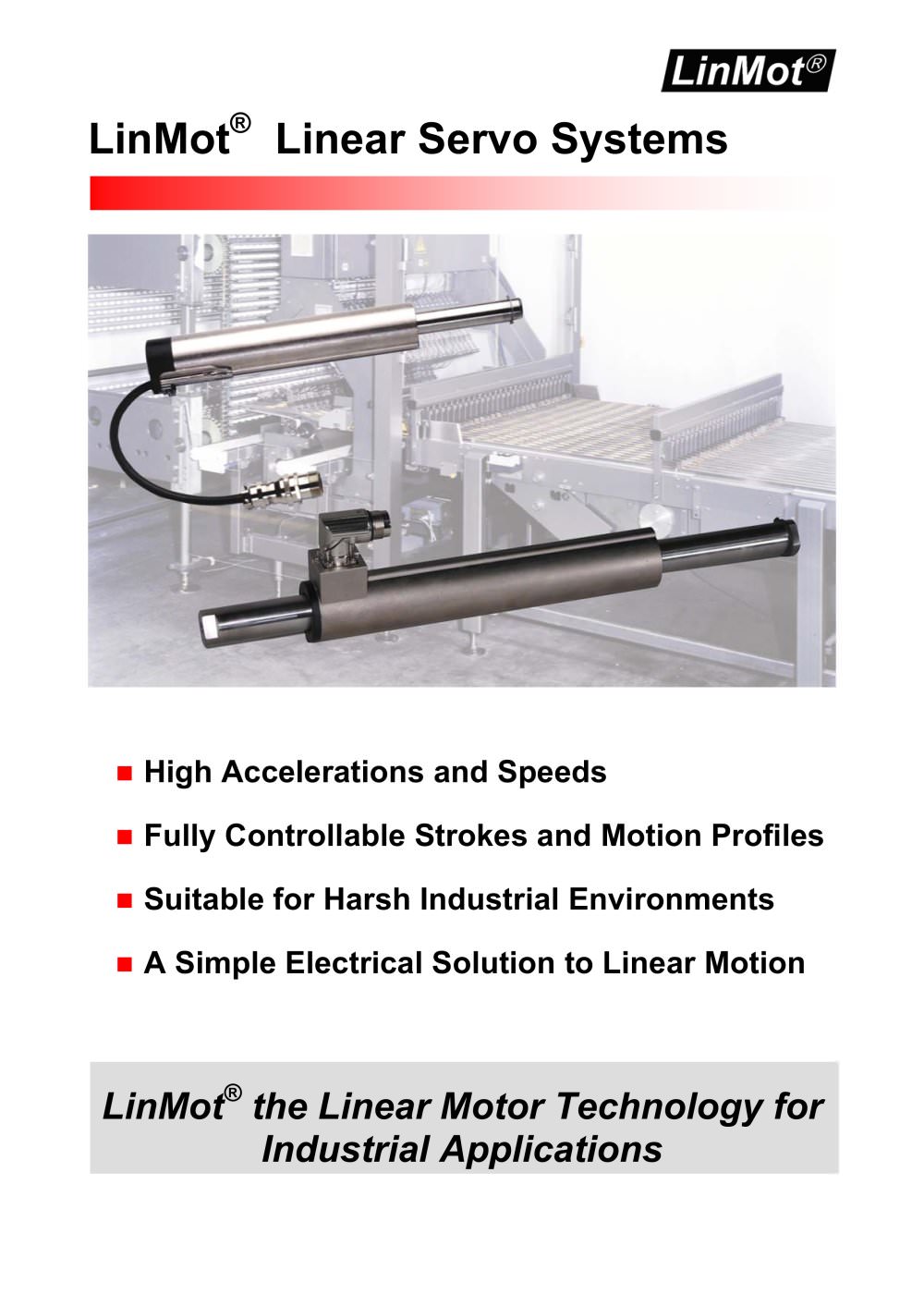

LinMot® Linear Servo Systems offer high accelerations and speeds with fully controllable strokes and motion profiles, suitable for harsh industrial environments. They provide a simple electrical solution to linear motion without the need for mechanical devices like cams or gears.

Technology
LinMot® linear motors use a direct electromagnetic principle for linear movement. The motor consists of a slider and a stator, designed for industrial environments. The slider is a stainless steel tube with neodymium magnets, while the stator includes coils, bearings, position sensors, and a microprocessor.

Specifications
Motors offer forces up to 580 N and are available in over 300 configurations with stroke lengths up to 1500 mm. They feature either cable or rotatable connectors for flexible design integration.

Controllers
LinMot® provides over 40 controller/amplifier options with interfaces like RS 232, Profibus, DeviceNet, or CanOPEN. Configuration is facilitated by user-friendly software.

Design Tools
LinMot® Designer helps optimize linear movements and select appropriate components. Configuration software with intelligent wizards simplifies system tuning and optimization.

Applications
LinMot® systems are used in various industries, including assembly, automation, food processing, and more. They offer high speed, acceleration, and reliability in diverse environments.

Product Range
The product range includes several motor series with varying specifications, such as stroke length, force, and dimensions. Controllers are available in different series, each with specific functions and interfaces.

Availability
LinMot® products are available from over 80 distributors worldwide, with standard products deliverable within 48 hours.
