Overview of MagSpring®
MagSpring® is a type of magnetic spring that provides a constant force over a wide working range, unlike traditional mechanical springs. It consists of two main components: a stator and a slider, and operates entirely on permanent magnets without the need for electricity.

Functionality
The MagSpring® functions by utilizing a unique design of magnets and iron to deliver a constant force. It is passive and does not require electricity or compressed air. The force is consistent over the working range, with a tolerance of +/-10% of the nominal force due to material and production variances.

Applications
1. Vertical Applications: Used to compensate for the weight of payloads, allowing smaller motors to be used.
2. Horizontal Applications: Assists linear motors in one direction, enabling the use of smaller motors.
3. Power Loss Situations: Can raise, hold, or lower payloads more slowly depending on sizing.

Working Stroke
When unloaded, the slider is positioned in the middle of the stator. The slider can be moved in both directions, with the force increasing from zero to the nominal force in a non-linear fashion before reaching a constant force.

Technical Specifications
MagSpring® is available in different models with varying lengths, diameters, and masses. The stator casing is made of steel with Ni plating, and the bearing is based on POM (Delrin®).

Figures and Diagrams
Figures illustrate the assembly and application of MagSpring® in various setups, such as with linear motors and guidance systems. They demonstrate the constant force application and safety features in case of power loss.

Ordering Information
Details on part numbers, dimensions, and materials for different MagSpring® models are provided, including options for mounting and adapters.

Contact Information
MagSpring® products are distributed worldwide, with contact details provided for Europe/Asia and North America.

Catalog excerpts

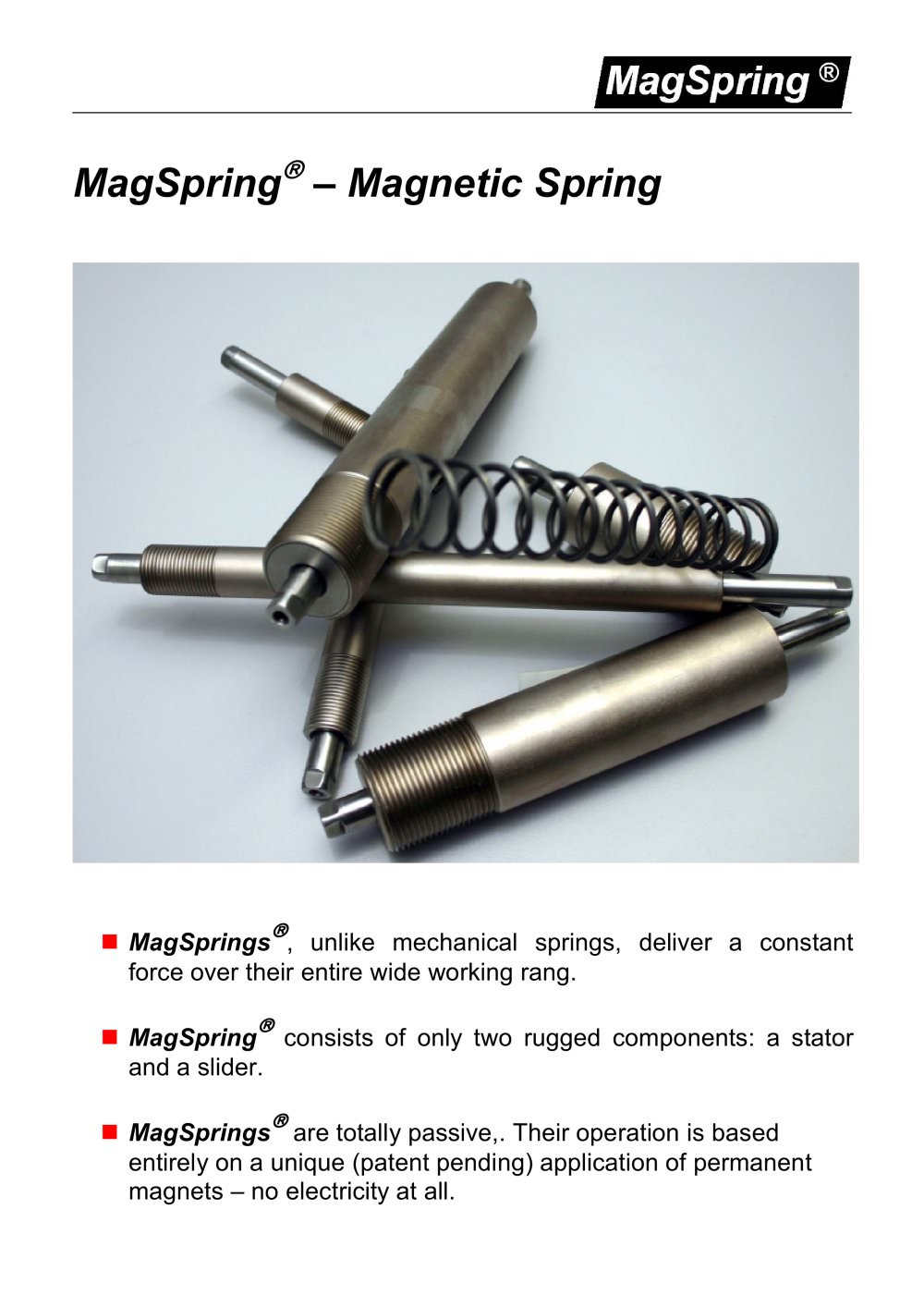

MagSprings > ֯è , unlike mechanical springs, deliver a constant force over their entire wide working rang. MagSpring >  consists of only two rugged components: a stator and a slider. MagSprings >  are totally passive,. Their operation is based entirely on a unique (patent pending) application of permanent magnets no electricity at all. >

Open the catalog to page 1

MagSprings > are used to provide either an assisting or a resisting constant force. In vertical applications particularly , MagSprings > Working stroke If the MagSpring are used to compensate for the weight of payloads being raised, thus allowing the use of smaller motors. In horizontal applications, MagSprings > is unloaded the slider is about in the middle of the stator. Thereby the called working end of the slider sticks a little bit more out of the stator than the other end of the slider. (Note that a payload can be fixed on both ends of the slider). Starting from this unbend position the...

Open the catalog to page 2

Figure 5 shows a MS01-20 MagSprin >  assembled in parallel to a linear motor. The equipment shown applies soldering paste through a fine needle. In case of power loss or shut down the MagSpring >  moves the needle up and out of the way making sure that there is no damage to the needle. Fig 3 MagSpring >  MS01-37 assembled to a H01-37-Guidance of LinMot >  . Figure 4 shows a vertical application of a LinMot >  Linear Motor with a H01-37-Guidance system together with a MagSprin >  g. The MagSpring >  pushes up with a constant force of up to 60 N. The MagSpring >  over compensates the earth's...

Open the catalog to page 3

Slider End with serial number Stator Part-Nr Length L > Stator Diameter Mass MS01-20x60 0250-2200 60 mm [+/-0.1] (2,36 in) 20 mm (7.87 in) 75 g (0.16 lb) MS01-20x140 0250-2201 140 mm [+/-0.1] (5.51 in) 20 mm (7.87 in) 180 g (0.39 lb) MS01-20x220 0250-2202 220 mm [+/-0.15] (8.66 in) 20 mm (7.87 in) 285 g (0.62 lb) > Materials: Stator casing: Steel with Ni plating bearing: based on POM (Delrin) Slider End with serial number Stator Part-Nr Length L > Stator Diameter Mass MS01-37x80 0250-2203 80 mm [+/-0.2] (3.15 in) 37 mm (1.46 in) 440 g (0.91lb) MS01-37x155 0250-2204 155 mm [+/-0.2] (6.10 in) 37...

Open the catalog to page 4

Mounting flange for MagSpring >  MS01-20 Stator > All Dimensions in mm / (inch) Material: Aluminium (AlMgSi), black anodized Mass: ca 30 g (0.066 lb) Description: MF01-20/H23 Part-No : 0250-2306 Adapter between MagSpring >  MS01-20 Stator and H01-23-Guidance > All Dimensions in mm / (inch) Description: Aluminium (AlMgSi), black anodized Mass: ca 18 g (0.04 lb) Bezeichnung: MA01-20/H23 Part-No : 0250-0116 >

Open the catalog to page 6

Mounting flange for MagSpring >  MS01-37 Stator > All Dimensions in mm / (inch) Material: Aluminium (AlMgSi), black anodized Mass: ca 70 g (0.015 lb) Description: MF01-37/H37 Part-No : 0250-2307 Adapter between MagSpring >  MS01-37 Stator and H01-37-/ H01-48-Guidance > All Dimensions in mm / (inch) Material: Aluminium (AlMgSi), black anodized Material: Aluminium (AlMgSi), black anodized Mass: ca 18 g (0.04 lb) Mass: ca 32 g (0.071 lb) Description: MA01-37/H37 Description: MA01-37/H48 Part-No : 0250-0117 Part-No : 0250-0118 >

Open the catalog to page 7

Specification of products are subject to change without notification. MagSpring  is a registered Trademark of NTI AG. (V3.1) MagSpring >  products are available from more than 80 Distributors worldwide. Contact Europe/Asia NTI AG MagSpring Tel. +41 (0)56 419 91 91 Haerdlistrasse 15 Fax. +41 (0)56 419 91 92 CH-8957 Spreitenbach Email: [email protected] Switzerland Web: www.MagSpring.com Contact North America LinMot Inc . N2444 Broad Street Phone +1-877-546-3270 or 262-728-2699 Delavan Fax: +1-800-463-8708 or 262-740-0141 WI 53115 Email: [email protected] USA Web: www.MagSpring.com >
