Linmot
Linear Guide Units H01

Linear Guide Units H01

Product catalog summary

Overview
The document outlines the technical specifications and descriptions for LinMot Linear Guide Units H01, designed for use with LinMot P01-series Linear Motors. These units provide accurate guidance, protection against external forces, and low friction operation, with options for ball or plain bearings.

Specifications
The Linear Guide Units H01 are available with recirculating ball bearings for high precision and low friction applications, or plain bearings for harsh or wet environments. They are compatible with pneumatic H-Guides and feature high precision shafts, mechanical end stops, and IP67 motor connectors.

Components

Front plate with centering holes for payload mounting
Hardened shafts for accurate motion
Shaft bearings for high payloads and long life
Guide block with mounting holes
Linear motor stator with integrated sensors
Linear motor slider for precise positioning
Backlash-free linear coupling

Applications
The H01 Linear Guide Units are suitable for high dynamic applications such as packaging machines, assembling lines, textile machines, and handling applications, offering precise positioning and extended life.

Accessories

MagSpring for vertical applications
Pneumatic brake for locking the guide
Optional fan for cooling to enhance motor performance

Ordering Information
The document provides detailed ordering information for various configurations of the H01 Linear Guide Units, specifying stroke length, bearing type, and compatible linear motor parts.

Performance Data
Graphs and tables provide data on minimal positioning times for different payloads and strokes, illustrating the performance capabilities of the guide units.

Specifications
The document details various linear guide units and their components, including sliders and accessories. Key models include PL01-20x395/320, PL01-20x500/420, and PL01-20x600/520, each designed for specific H01 guide units. Accessories such as pneumatic brakes and fan cooling sets are also listed with their respective article numbers.

Procedures
Positioning times for different payloads and strokes are provided, indicating the efficiency of the guide units in various operational scenarios. The document includes detailed measurements and specifications for each guide unit model, ensuring precise application and installation.

Standards and Materials
The guide units are constructed with materials such as anodized aluminum, hardened steel, and nitrile rubber, ensuring durability and performance. The document specifies the use of ball bearings and plain bearings in different models.

Recommendations
The document suggests optimal payloads and cantilever extensions for the guide units to maintain performance and minimize deflection. It also provides contact information for distributors worldwide, facilitating easy access to products and support.

Data Summary
Tables and charts illustrate the relationship between stroke length, payload, and positioning time, as well as deflection data for various cantilever extensions. These visual aids help in understanding the operational limits and capabilities of the guide units.

Catalog excerpts

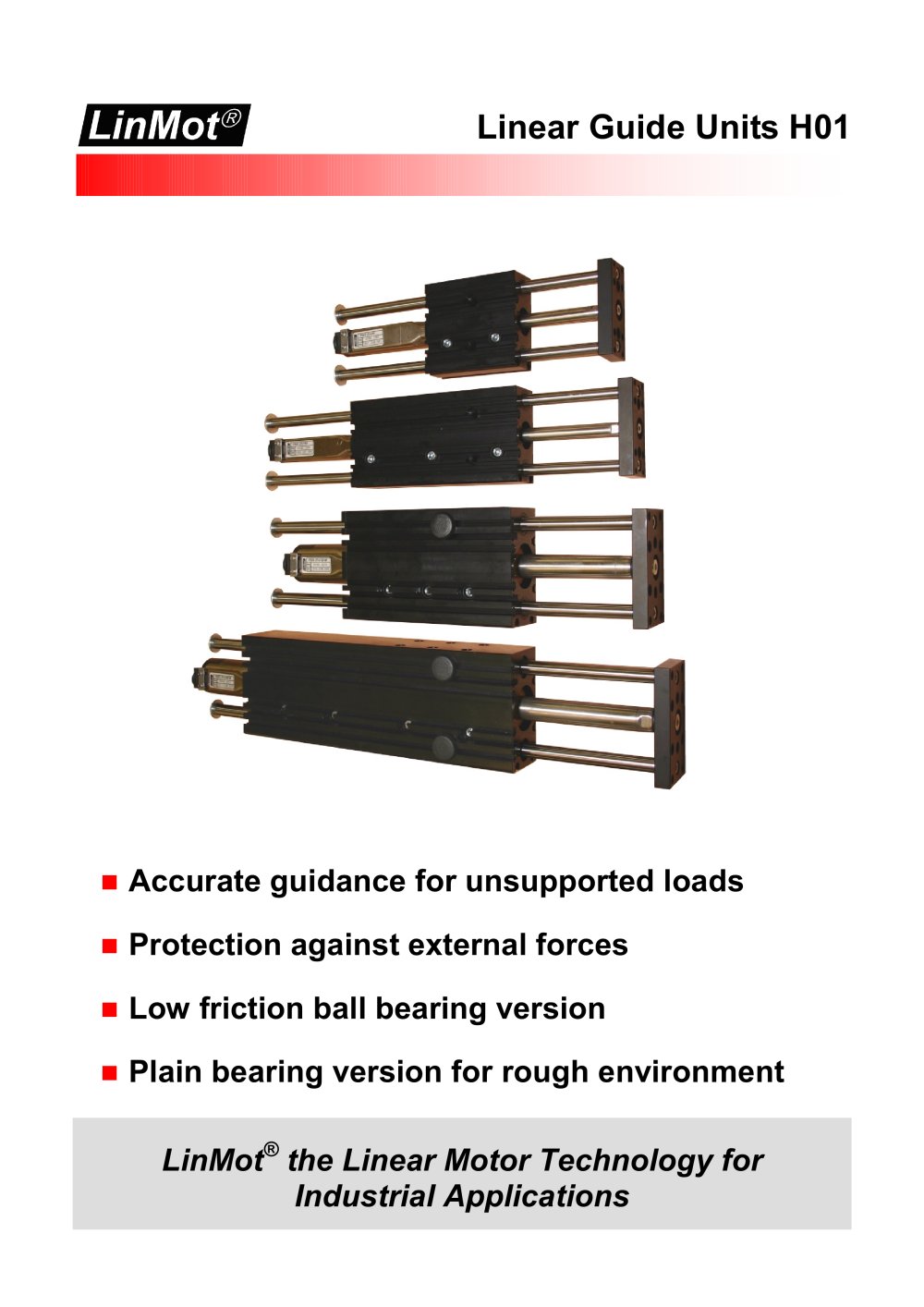

Accurate guidance for unsupported loads Protection against external forces Low friction ball bearing version Plain bearing version for rough environment LinMot > the Linear Motor Technology for Industrial Applications >

Open the catalog to page 1

IP67 Motor Connector Linear Guide Units H01 > 1. Front plate with centering holes for fast and precise payload mounting 2. Hardened Shafts for accurate linear feed motion and minimal noise 3. Shaft Bearings recirculating ball bearings or plain for high payloads and long life 4. Guide Block with centering holes for fast and precise mounting of the linear module 5. Mechanical end stop (backend) 6. Linear Motor Stator (IP67) connector or cable types with integrated motor coils, sensors for position feedback and over temperature protection 7. Screws and clamping cylinder to fix the linear motor in...

Open the catalog to page 2

Accessories for H01 guide units MagSpring For compensation of the payload (gravity force) in vertical applications. Optional Fan Using a fan for cooling almost doubles the continuous force of the linear motors. Pneumatic Brake The brake unit locks the linear guide upon an interruption of electrical or air su pp l y . NTI Ltd. / LinMot Linear Guide Units H01 / 17.03.06 3/16 >

Open the catalog to page 3

Materials: Guide block & Front plate Rods Bearing Wiper rings H01-23x86/ ball bearings anodized aluminum hardened steel steel nitrile rubber H01-23x86/Ņ-GF plain bearings anodized aluminum stainless steel 1.4104 sintered bronze nitrile rubber > L 70.75 6 H 83 H98 L 38.50 6 Guide Unit Bearing Stroke H Moving Part L Linear Motor Linear Motor Moving Total [mm (inch)] [mm (inch)] Stator Slider Mass > 3) Weight > 3) H01-23x86/60 ball bearing 60 ( 2.36) 205.5 ( 8.07) > 1) PL01-12x190/140 270g 700g H01-23x86/160 ball bearing 160 ( 6.30) 305.5 (12.03) PL01-12x290/240 390g 820g PS01-23x80-R PS01-23x80-R20...

Open the catalog to page 4

Materials: Guide block & Front plate Rods Bearing Wiper rings H01-23x166/ ball bearings anodized aluminum hardened steel steel nitrile rubber H01-23x166/Ņ-GF plain bearings anodized aluminum stainless steel 1.4104 sintered bronze nitrile rubber > L 70.75 6 H 83 H698 L 38.50 Guide Unit Bearing Stroke H Moving Part L Linear Motor Linear Motor Moving Total [mm (inch)] [mm (inch)] Stator Slider Mass > 3) Weight > 3) H01-23x166/80 ball bearing 80 ( 3.15) 305.5 (12.03) > 1) PL01-12x290/240 390g 1220g H01-23x166/180 ball bearing 180 ( 7.09) 435.5 (17.15) PL01-12x420/370 530g 1350g PS01-23x160-R PS01-23x160-R20...

Open the catalog to page 6

C Materials: Guide block & Front plate Rods Bearing Wiper rings H01-37x166/ ball bearings anodized aluminum hardened steel steel nitrile rubber H01-37x166/Ņ-GF plain bearings anodized aluminum stainless steel 1.4104 sintered bronze nitrile rubber >

Open the catalog to page 8

4.804.807.50 A-A C 286 Materials: Guide block & Front plate Rods Bearing Wiper rings H01-37x286/ ball bearings anodized aluminum hardened steel steel nitrile rubber H01-37x286/Ņ-GF plain bearings anodized aluminum stainless steel 1.4104 sintered bronze nitrile rubber >

Open the catalog to page 10

Materials: Guide block & Front plate Rods Bearing Wiper rings H01-48x250/ ball bearings anodized aluminum hardened steel steel nitrile rubber H01-48x250/Ņ-GF plain bearings anodized aluminum stainless steel 1.4104 sintered bronze nitrile rubber Guide Unit Bearing Stroke H Moving Part L Linear Motor Linear Motor Moving Total [mm (inch)] [mm (inch)] Stator Slider Mass > 3) Weight > 3) H01-48x250/120 ball bearing 120 ( 4.72) 460 (18.11) PL01-28x410/330 1650g 5250g H01-48x250/210 ball bearing 210 ( 8.27) 550 (21.65) PL01-28x500/420 1930g 5530g H01-48x250/330 ball bearing 330 (12.99) 670 (26.38) PS01-48x240-C...

Open the catalog to page 12

NTI Ltd. / LinMot Linear Guide Units H01 / 17.03.06 15/16 >

Open the catalog to page 15

LinMot Products are available from more than 80 Distributors worldwide. Ask us for the Distributor nearest to you: NTI AG LinMot Tel. +41 (0)56 419 91 91 Haerdlistrasse 15 Fax. +41 (0)56 419 91 92 CH-8957 Spreitenbach email: [email protected] Switzerland Web: www.LinMot.com LinMot Inc . N2444 Broad Street Phone +1-877-546-3270 or 262-728-2699 Delavan Fax: +1-800-463-8708 or 262-740-0141 WI 53115 email: [email protected] USA Web: www.LinMot.com NTI Ltd. / LinMot Linear Guide Units H01 / 17.03.06 16/16 >

Open the catalog to page 16
