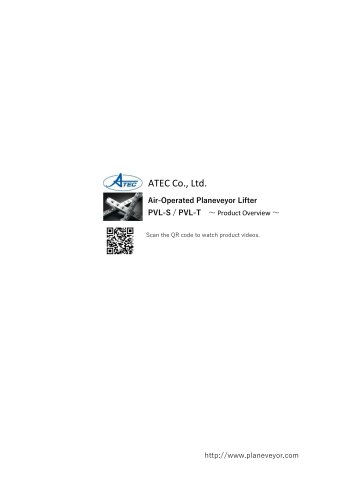

ATEC Co., Ltd. Air-Operated Planeveyor Lifter PVL-S / PVL-T ～ Product Overview ～ Scan the QR code to watch product videos.

Air-Operated Planeveyor Lifter PVL-S・PVL-T series ◆What is an air-operated Planeveyor Lifter? The Air-Operated Planeveyor Lifter is a labor-saving device that uses a built-in pneumatic cylinder to lift workpieces off the table, allowing them to be moved freely in any direction through 360 degrees. 【Square Groove Type】 ■The overall length can be customized by adjusting the number of balls. PVL55SW・PVL55SH・PVL30SASY ■The body is made of aluminum. ■Four-Point Mounting ■The ball roller features an original spherical design and can be used in both upward-facing and downward-facing orientations, including...

◆How ro use the Planeveyor Lifter Air ON – Lift Up 360° Omnidirectional Movement! ■ Install the Planeveyor Lifter so that the top of the balls is ■ When the compressed air is exhausted, the workpiece below the table surface. When compressed air is supplied, lowers under its own weight and rests on the table surface. the ball roller section rises, lifting workpieces such as dies Forced air exhaust can also be used to lower the workpiece. and fixtures. By supporting the load on the ball rollers, positioning and changeovers can be performed with less effort. ◆Installation Allowing for Lifting Stroke...

◆Selection Guidelines Point Lifting Capacity = Number of Balls in Contact with the Bottom Surface of the Workpiece The Planeveyor Lifter uses a built-in piston for each ball to lift the workpiece. Therefore, the dimensions and weight of the workpiece are extremely important. Workpiece A 6 Balls × 2 Units = 12 Balls Example: Model PVL55SL-9 Lifting Capacity per Ball: 676 N (69 kgf) at 0.5 MPa ◆Workpiece A (Assuming the load is uniformly distributed over the surface) Number of Balls in Contact with the Bottom Surface: 6 Balls × 2 Units = 12 Balls → 8,112 N (828 kgf) ◆Workpiece B (Assuming the load...

RoHS Lifting Capacity (per ball) Part Number

For Square Grooves RoHS Lifting Capacity (per ball) Recommended Mounting Lowered Groove Dimensions Part Number

Lifting Capacity (per ball) Part Number

Lifting Capacity (per ball) Part Number

RoHS Lifting Capacity (per ball) Part Number

RoHS Lifting Capacity (per ball) ■ The PVL55SW featu res a two-stage internal cylinder design, providing approximately twice the lifting capacity of the PVL55S and PVL55SL. It is ideal for applications requiring high lifting capacity in limited installation space. Part Number

RoHS Lifting Capacity (per ball) ■ Dust and other debris adhering to the balls can accumulate inside the ball rollers, causing poor rotation. However, the PVL55SH Series features debris discharge holes and slits at the bottom, allowing debris to be removed by blowing compressed air through the holes using an air gun or similar tool. Part Number

Part Number Note: Lengths other than those listed in the table are also 11 available, ranging from approximately 60 to 1,500 mm. Note: Lengths other than those listed in the table are also available, ranging from approximately 60 to 1,500 mm.

Part Number *PVL30T-^ □ = Number of Balls *PVL50T-^ ^ = Number of Balls Note: Lengths other than those listed in the table are also Note: Lengths other than those listed in the table are also available, ranging from approximately 80 to 1,500 mm. available, ranging from approximately 100 to 1,500 mm.

T-slots for installing the PVL-T Series are commonly found in press machines. The Planeveyor Lifter can be fixed in place or inserted and removed as needed. Since T-slot dimensions vary depending on the machine, actual measurements are required in addition to drawings. We can also customize the lifter height to match the measured T-slot dimensions. Note: Pay particular attention to the slot depth. ◎ Bridging Scrap Discharge Holes Many press machine bolsters have holes for scrap discharge, so if you are considering using an Air-Operated Planeveyor Lifter in such applications, please consult ATEC....

Lifting Capacity (per ball) ◎ Example of Straight-Line Connection End Plug PVL30SASY-P50-PGB (without air supply port) + Main Unit (PVL30SASY-3-P50-BS) + Joint Plug PVL30SASY-P50-JT + Main Unit (PVL30SASY-4-P50-BS) + End Plug PVL30SASY-P50-PGA (with air supply port).

For Joints RoHS Recommended Operating Pressure Range Part Number

◆PVL30SASY-□-Ｐ50-BS/ PVL30SASY-P50-JT□ series Additional Information ◎ Example of Grid-Shaped Connection L-Shaped Joint PVL30SASY-P50-JTL (with air supply port) × 4 pcs + Main Unit PVL30SASY-3-P50BS × 12 units + T-Shaped Joint PVL30SASY-P50-JTT (without air supply port) × 4 pcs + Cross Joint PVL30SASY-P50-JTX (without air supply port) × 1 pc. Cross-Shaped Connection T-Shaped Connection L-Shaped Connection ◎ Example of T-Shaped Connection Low-Head BoltsM5X20 6 Locations T-Shaped Joint ◎Example of T-Shaped Connection T-Shaped Joint PVL30SASY-P50-JTT (without air supply port) × 1 pc + Main Unit...

◎ Example of L-Shaped Connection O-Ring S-3 2 Locations Low-Head Bolt M5X20 4 Locations ◎Example of L-Shaped Connection L-Shaped Joint PVL30SASY-P50-JTL (with air supply port) × 1 pc + Main Unit PVL30SASY-3-P50-BS × 2 units. Main Unit PVL30SASY-3-P50-BS 2 Units L-Shaped Joint PVL30SASY-P50-JTL Note: Seal any unused air supply ports with plugs to ◎Assembly Instructions Assembly is very simple. Place the O-ring in the air supply port of the main unit, then fit the connecting joint onto the main unit. Each connecting joint has positioning guides. Simply align the guides with the holes in the main...

Custom Product Examples ◆We offer a wide range of Planeveyor Lifters as standard products. We can also provide custom products to meet specific customer requirements. Lifting Stroke Change ■The lifting stroke can be increased as much as possible without changing the external dimensions. Custom Product – Raised Position Standard Product – Raised Position Addition of Seating Plate ■By installing a seating plate, the Planeveyor Lifter can be used without a housing (using only the main unit). Seating Plate Standard Product (Lowered Position) 〇When lowered, the workpiece is seated outside the air...
