Catalog excerpts

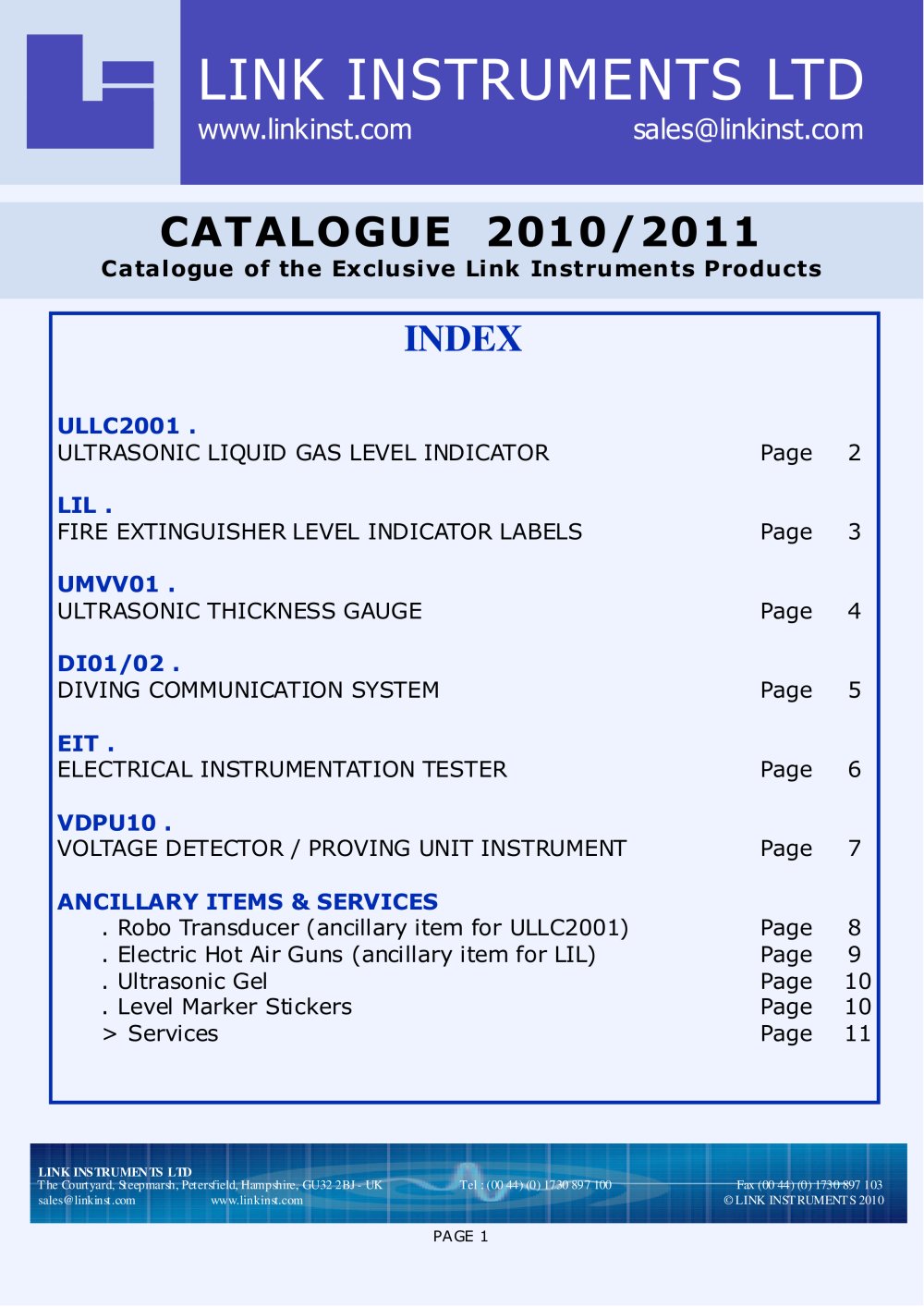

LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com CATALOGUE 2010/2011 Catalogue of the Exclusive Link Instruments Products INDEX ULLC2001 . ULTRASONIC LIQUID GAS LEVEL INDICATOR Page 2 LIL . FIRE EXTINGUISHER LEVEL INDICATOR LABELS Page 3 UMVV01 . ULTRASONIC THICKNESS GAUGE Page 4 DI01/02 . DIVING COMMUNICATION SYSTEM Page 5 EIT . ELECTRICAL INSTRUMENTATION TESTER Page 6 VDPU10 . VOLTAGE DETECTOR / PROVING UNIT INSTRUMENT Page 7 ANCILLARY ITEMS & SERVICES . Robo Transducer (ancillary item for ULLC2001) Page 8 . Electric Hot Air Guns (ancillary item for LIL) Page 9 . Ultrasonic Gel Page 10 . Level Marker Stickers Page 10 > Services Page 11 LINK INSTRUMENTS LTD The Courtyard, Steepmarsh, Petersfield, Hampshire, GU32 2BJ - UK Tel : (00 44) (0) 1730 897 100 Fax (00 44) (0) 1730 897 103 sales@linkinst.com www.linkinst.com © LINK INSTRUMENTS 2010 PAGE 1
Open the catalog to page 1
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com ULLC2001 . ULTRASONIC LIQUID GAS LEVEL INDICATOR For Fire Extinguishers : CO2, FM200, HALON and other liquid gas. The Link Instruments ULLC2001 Ultrasonic Level Comparator is one of the most advanced Liquid Levellers on the market. Both extremely easy to use and micro-pic controlled for greater precision in measurement. The transducer is placed against the cylinder body 120mm below the calculated liquid gas level, where the extinguisher fill should be certain (normally mathematically calculated). While retaining the transducer at this...
Open the catalog to page 2
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com These Self Adhesive Level Indicator Labels have been specifically designed to indicate the amount of Liquid Gas Contents in a Fire Extinguisher. Before Heating After Heating LEVEL > Types of label available: Available in a standard temperature range of 0-27°C, and a higher temperature range of above 25°C - 35°C, also available in two sizes 25mm x 250mm and 25mm x 500mm long. Price on application. The Label is heated up for 4-5 seconds using hot air from an industrial hot air gun, hot water, or steam, the pink temperature sensitive...
Open the catalog to page 3
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com UMVV01 – ULTRA MEASURE ULTRASONIC THICKNESS GAUGE The High Specification Truly Affordable Ultrasonic Thickness Gauge The Link Instruments Ultra Measure ultrasonic thickness gauge is robust, easy-to-use, with variable velocity calibration that can be set to suit most materials. The Ultra Measure is calibrated to a mild set test bit and can be re-set if required using the variable velocity + and – buttons for different materials. The unit is fitted with a LCD Display back light for use in bad lighting conditions. The unit can measure...
Open the catalog to page 4
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com The DI01-2 Diving Communications Box is designed and manufactured by Link Instruments Ltd, the unit is robustly made in a water proof Pelican carry case, the push button controls are large and easily operated even when wearing gloves. The unit uses 2 wires to connect to each diver and has all the features required when controlling one or two commercial divers. DI01/2 - Diving Communications System Features: Internal (chargeable) or External 12Vdc battery. Dual Volume Control for divers and operator. 5watt output power, on 8Ù,...
Open the catalog to page 5
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com EIT - Electrical Instrumentation Tester Designed so that Electricians can carry out their recommended instrumentation tests. The EIT is ideal for testing: „hƒn Multi-Functional Testers „hƒn Loop Testers „hƒn Insulation Testers „hƒn Continuity Testers „hƒn Multi Meters „hƒn Voltage Indicators „hƒn 17th Edition Instruments EIT Features: „hƒn Continuity Test: (resistance measured in ohms Ù) „hƒn Voltage Test: (line AC voltage check) „hƒn Insulation Test: (resistance in MÙ Applied Voltage 100V to 1KV) EIT has a LCD Display to indicate the...
Open the catalog to page 6
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com VDPU10 - VOLTAGE DETECTOR/PROVING UNIT INSTRUMENT ALL-IN-ONE VOLTAGE DETECTOR / PROVING UNIT All electricians should have the means to carry out safe isolation to ensure the circuits they are working on are not live. Normally a separate test lamp and proving unit is necessary, however this inconvenience can lead to one or the other devises not being available or simply the problem of carry both devises. The Link Instruments ALL-IN-ONE Voltage Detector / Proving Unit illuminates this problem as both functions are built into one unit....
Open the catalog to page 7
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com ANCILLARY ITEMS & SERVICES RT2001 Robot Transducer System (for ULLC2001) Optional Comparator ancillary items for the Robo Transducer: A mechanical Transducer system is also available if more precision is required. The Robo Transducer eliminates any possible human inf luence on the ultrasonic signals transmitted and received by the Comparator. Definition between signals and the interpretation of the SAW effect signal is made extremely clear. It is then simple to pin point the liquid level repeatedly. To use the Robo Transducer simply...
Open the catalog to page 8
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com ANCILLARY ITEMS & SERVICES ELECTRONIC HOT AIR GUNS (For LIL) We are able to offer two continuously adjustable, electronically and optically monitored Hot Air Guns available in 110V and 230/240V a.c. versions, for activating the liquid level strip sensors. These high quality professional Hot Air Guns feature a built-in temperature sensor that regulates and monitors the set temperature, LEDs to indicate temperature range selected and an adjustable air-flow regulator for precision working. They also have a selectable cool air stage for...
Open the catalog to page 9
LINK INSTRUMENTS LTD www.linkinst.com sales@linkinst.com ANCILLARY ITEMS & SERVICES ULTRASONIC GEL Ultrasonic Transducer Gel – Box of 10 pots (100ml x 10) Minimum order : box of 10 pots LEVEL MARKER STICKERS Level Marker Stickers can be produced with your Company name (minimum order : 2000) Normal minimum order : 100 LINK INSTRUMENTS LTD The Courtyard, Steepmarsh, Petersfield, Hampshire, GU32 2BJ - UK Tel : (00 44) (0) 1730 897 100 Fax (00 44) (0) 1730 897 103 sales@linkinst.com www.linkinst.com © LINK INSTRUMENTS 2010 PAGE 10
Open the catalog to page 10
