Link-Belt TCC-450 45-ton (40.8 mt) Telescopic Crawler Crane

Product catalog summary

Overview: The document provides detailed specifications and features of a 45-ton (40.8 mt) Telescopic Crawler Crane, highlighting its remarkable control, reliability, and capacity performance.

Key Features:

Performance: Equipped with a whisper-quiet Isuzu engine delivering 197 hp (146.90 kW), the crane offers a main and auxiliary hoist winch grooved for 18mm wire rope with a line pull of 17,916 lbs (8,127 kg) and a line speed of 340 fpm (103.7 m/min).
Boom Specifications: The crane features a full power 33 ft to 105 ft (10.06 m to 32.0 m) four-section boom with an optional 20 ft (6.09 m) swing-away fly. The A-max mode increases capacities in close, while the B mode extends all sections equally.
Design and Comfort: Ergonomically designed for maximum visibility and comfort, it includes a wireless rated capacity limiter, sliding doors, windows for ventilation, AM/FM radio, air conditioning, and single-axis controls.
Mobility: The crane is designed for quick mobilization, transporting in one load with fold-up catwalks and hydraulic retractable side frames for transport.

Technical Specifications:

Track Shoes: 32" grouser track shoes form a wide gauge of 11' 2" (3.40 m) when extended and 8' 9" (2.66 m) when retracted.
Swing System: Features a hydraulic swing system that smoothly rotates on a turntable bearing with internal swing teeth.

Manufacturer Information: Produced by Link-Belt Construction Equipment Company, Lexington, Kentucky. The document notes that designs and specifications are subject to change.

Catalog excerpts

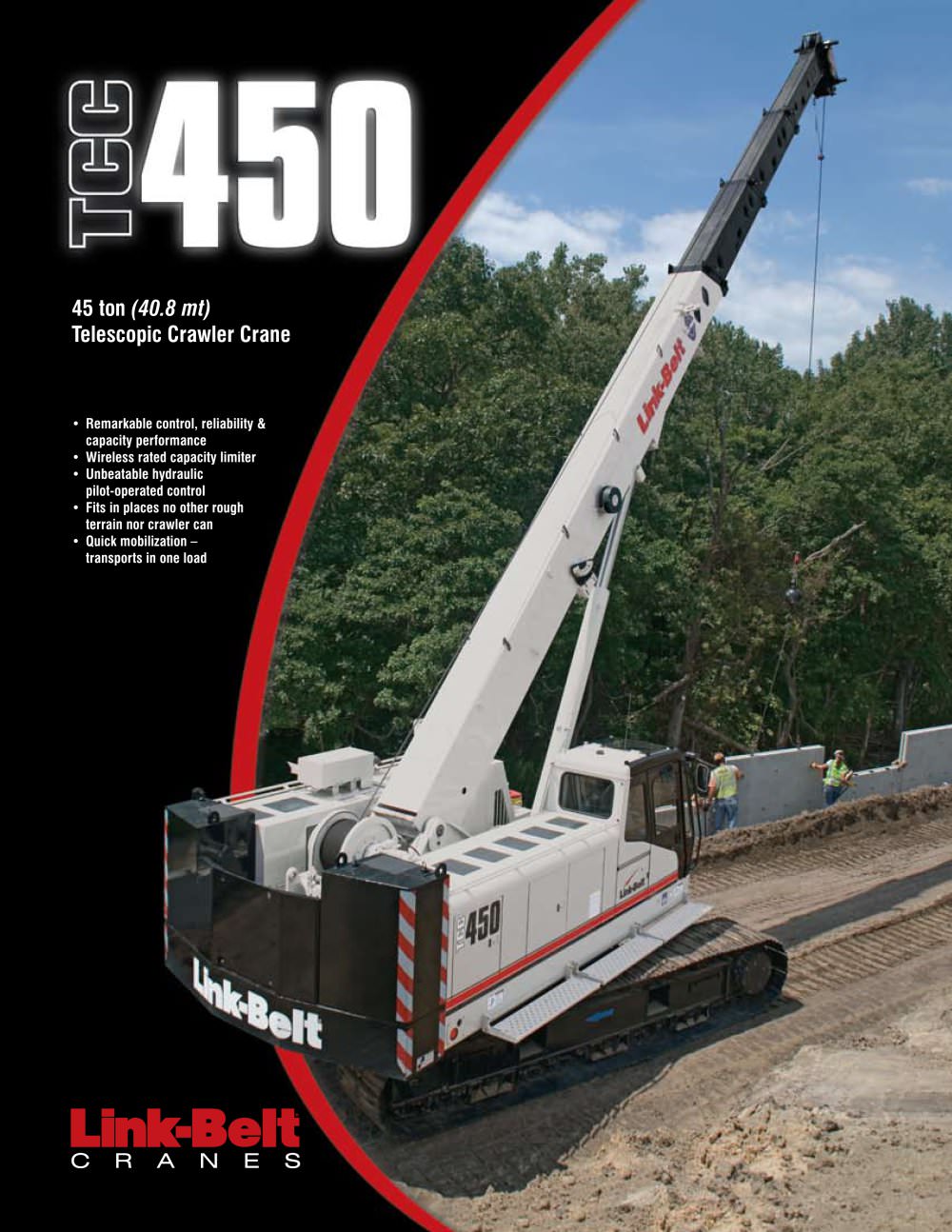

Link-Belt TCC-450 45-ton (40.8 mt) Telescopic Crawler Crane-1

45 ton (40.8 mt) Telescopic Crawler Crane • Remarkable control, reliability & capacity performance • Wireless rated capacity limiter • Unbeatable hydraulic pilot-operated control • Fits in places no other rough terrain nor crawler can • Quick mobilization – transports in one load

Open the catalog to page 1

Link-Belt TCC-450 45-ton (40.8 mt) Telescopic Crawler Crane-2

45-ton (40.8 mt) Telescopic Crawler Crane Remarkable control, reliability and capacity performance • • • • • Whisper quiet Isuzu engine with 197 hp (146.90 kW) Main and auxiliary hoist wench grooved for 18mm wire rope with 17,916 lbs (8 127 kg) available line pull Mechanical drum rotation indicators 340 fpm (103.7 m/min) line speed Auxiliary lifting sheave off main boom, standard Hydraulic swing system smoothly rotates on turntable bearing with internal swing teeth. Ergonomically designed for maximum visibility, comfort and control • • • • • • • Wireless rated capacity limiter Sliding left side...
