Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane
6Pages

Catalog excerpts

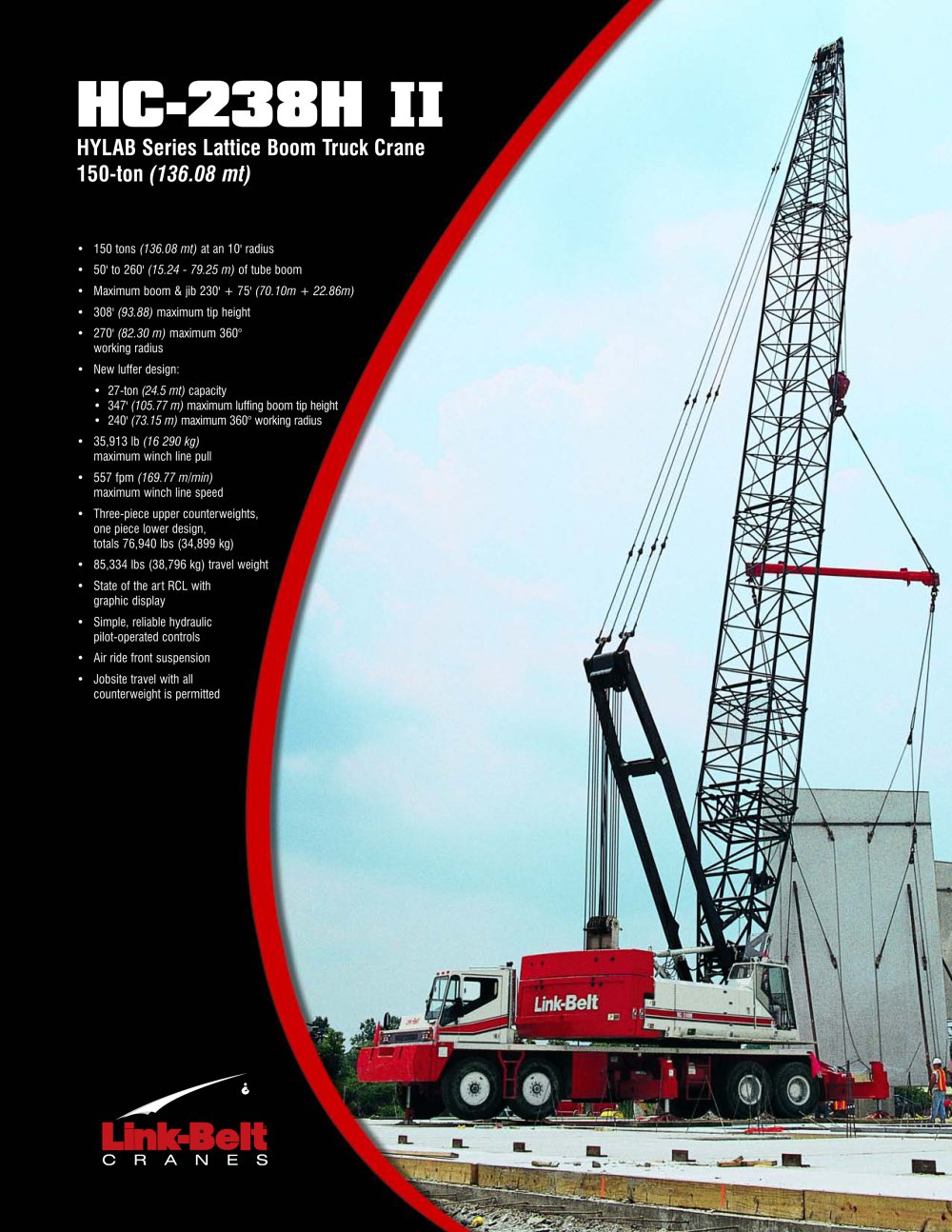

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 1

HC-238H II HYLAB Series Lattice Boom Truck Crane 150-ton (136.08 mt) • 150 tons (136.08 mt) at an 10' radius • 50' to 260' (15.24 - 79.25 m) of tube boom • Maximum boom & jib 230' + 75' (70.10m + 22.86m) • 308' (93.88) maximum tip height • 270' (82.30 m) maximum 360° working radius • New luffer design: • 27-ton (24.5 mt) capacity • 347' (105.77 m) maximum luffing boom tip height • 240' (73.15 m) maximum 360° working radius • 35,913 lb (16 290 kg) maximum winch line pull • 557 fpm (169.77 m/min) maximum winch line speed • Three-piece upper counterweights, one piece lower design, totals 76,940 lbs (34,899 kg) • 85,334 lbs (38,796 kg) travel weight • State of the art RCL with graphic display • Simple, reliable hydraulic pilot-operated controls • Air ride front suspension • Jobsite travel with all counterweight is permitted

Open the catalog to page 1

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 2

Outstanding carrier features with solid, reliable performance HYLAB Lattice Boom Truck Crane 150-ton (136.08 mt) • Carrier frame — new, improved design provides solid lifting platform for luffer applications • Comfortable carrier cab provides high visibility • 430 hp (320 kw/h) Detroit Diesel Series 60 engine (lower) • Eaton RTO 14908LL transmission • Jake brake provides more braking power • Separate steering pump allows operator to simultaneously drive and operate outriggers, providing smooth “floating” of outriggers. • Four Series 31 batteries are durable and designed for cold weather...

Open the catalog to page 2

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 3

All sheaves are sealed and maintenance-free, giving HYLAB owners outstanding reliability. Fast hitch travel links Live mast can be used as working boom for rigging purposes. Optional hydraulic system folds live mast over rear of upper to redistribute axle loading for highway travel. 10' self-assembly section is available for all boom configurations. Fast “hook and go” rear outrigger box 22' 8" (6.91 m) outrigger spread, 19' 10" (6.05 m) outrigger base

Open the catalog to page 3

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 4

Access ladders with hand-rails, removable right-side catwalks and a large flat deck are standard on Link-Belt cranes, providing superior operator accessibility. Bullet-proof hydraulics and a strong power plant QUALITY PROVEN FOR MANY YEARS IN QUALITY LINK-BELT PRODUCTS Powered by the biggest and most quiet engine in its class, the Isuzu engine is fuel efficient and has proven to be very reliable. It has a high cooling capacity and provides high line speeds at higher line pulls. Load control The variable displacement system provides infinite control of load speed in hoist and lowering modes....

Open the catalog to page 4

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 5

Moves in 8 loads with max boom, max jib and full counterweight Link-Belt leads the way in designing roadable, big capacity truck cranes and nowhere is this more evident than with the HYLAB Series. The weight efficient design and built-in stripdown features of the HC-238H II will get your big capacity crane to the next job site quicker and at less cost. No helper crane required The HC-238H II is designed to be self-erecting and self-stripping. The optional 10' extension with lifting sheaves is used to assemble/disassemble, or the live mast can be used as a short boom for loading and handling...

Open the catalog to page 5

Link-Belt HC-238H II 150-ton (136.08 mt) Lattice Boom Truck Crane - 6

Available attachments provide strength and versatility Conventional open throat boom Luffing boom attachment • 50' - 260' (15.24 - 79.25 m) conventional boom - Using pin-connected sections and open throat top section, the HC-238H II provides the longest boom lengths in this machine class. • Main chord members are made with 100,000 psi yield material with high strength lattice. • Boom suspension is achieved through 18-part boom hoist reeving with dual pendant ropes. • Standard equipment deflector rollers protect lattice sections from wire rope scuffing. • 165' + 160' + 30' (50.29 + 48.77 +...
