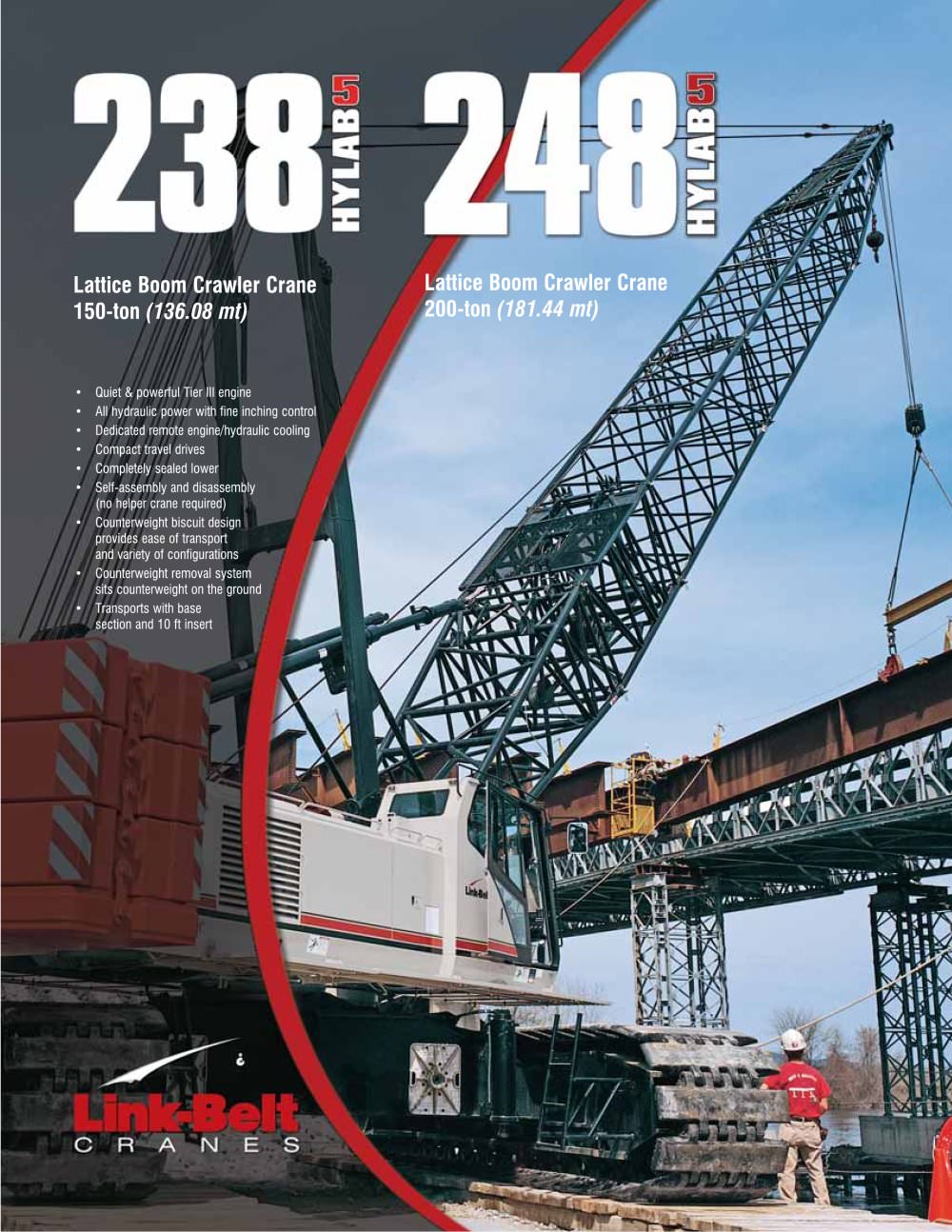

Link-Belt 248 HYLAB 5 200-ton (181.44 mt) Lattice Boom Crawler Crane

1 / 6 PagesView full catalog

Link-Belt 248 HYLAB 5 200-ton (181.44 mt) Lattice Boom Crawler Crane

Product catalog summary

Specifications and Features:

Large capacity capabilities with standard freefall operation.
Enhanced operator control and comfort with easy transport features, including a base section that remains attached during transport.
Non-slip safety strips and full-length catwalks ensure safe access to the crane's upper section.
Standard carbody jacks with live hydraulics and remote-control operated hydraulic counterweight removal cylinders.
Sealed, oil-filled track rollers and drive planetaries, along with compact hydrostatic drives, provide reliability and maintenance-free operation.
Counterweight 'biscuit' design allows for various configuration options and easy transport.
54% more travel torque compared to the LS-238 model.
Sealed boom hoist bearings in mast and bail, with spring-loaded cushioned backstops.
Optional 10 ft self-assembly section available.
Low-effort crawler quick disconnects that attach in minutes without tools.
Convenient battery access and an audible/visual swing alarm.
Sealed sheave bearings for smooth, reliable power that is quiet and problem-free.

Hydraulic and Winch Systems:

Standard winch package includes power up/power down and true gravity freefall.
Six pump hydraulic system ensures smooth, uninterrupted performance.
Remote oil cooler with thermostatically controlled fan maintains cool hydraulics.
High travel torque keeps the crane mobile on job sites.

Operator's Cab:

The spacious HYLAB cab is ergonomically designed for maximum visibility, comfort, and control.
Features include 18,000 BTU air conditioning and 19,000 BTU heating with upper and lower vents.
Rated capacity limiter with load cell located in boom hoist dead end.
Pilot-operated armchair controls with adjustable sliding console and toe throttle pedal.
Travel levers conveniently located on the right-hand console.

Operator's Cab Console Features:

Complete engine monitoring and free-fall mode indicator.
Anti-two block override switch and boom hoist override switch.
Limit alarm indicator light and system override switch with indicator light.
Front, rear, and third drum lock switch.
Backlit instrumentation gauges with warning lamps.

Additional Features:

Right and left full-length catwalks are standard.
Great engine and pump accessibility.
Boom hoist winch with automatic brake.

Catalog excerpts

Link-Belt 248 HYLAB 5 200-ton (181.44 mt) Lattice Boom Crawler Crane-3

Right and left full-length catwalks - standard Great engine and pump accessibility Convenient battery accessAudible / visual swing alarm > Sealed sheave bearings ? Standard winch package includes power up/power down and true gravity freefall? Six pump hydraulic system provides smooth, uninterrupted performance? Remote oil cooler with thermo-statically controlled fan insures cool hydraulics? High travel torque keeps crane mobile on job site Boom hoist winch with automatic brake Low-effort crawler quick disconnects can attach in minutes -- no tools required >

Open the catalog to page 3

Link-Belt 248 HYLAB 5 200-ton (181.44 mt) Lattice Boom Crawler Crane-4

The spacious HYLAB cab is ergonomicallydesigned for maximum visibility, operating comfort and control with these standard features: ? 18,000 BTU air conditioning and 19,000 BTUheating run through upper and lower vents? Rated capacity limiter with load cell locatedin boom hoist dead end? Pilot-operated armchair controls withadjustable sliding console? Toe throttle pedal? Travel levers conveniently located onright hand console Operators cab console features include: ? Complete engine monitoring ? Free-fall mode indicator ? Anti-two block override switch ? Boom hoist override switch ? Limit alarm...
