IR WIRELESS DIGITAL FOOT SWITCH

IR WIRELESS DIGITAL FOOT SWITCH
2Pages

Catalog excerpts

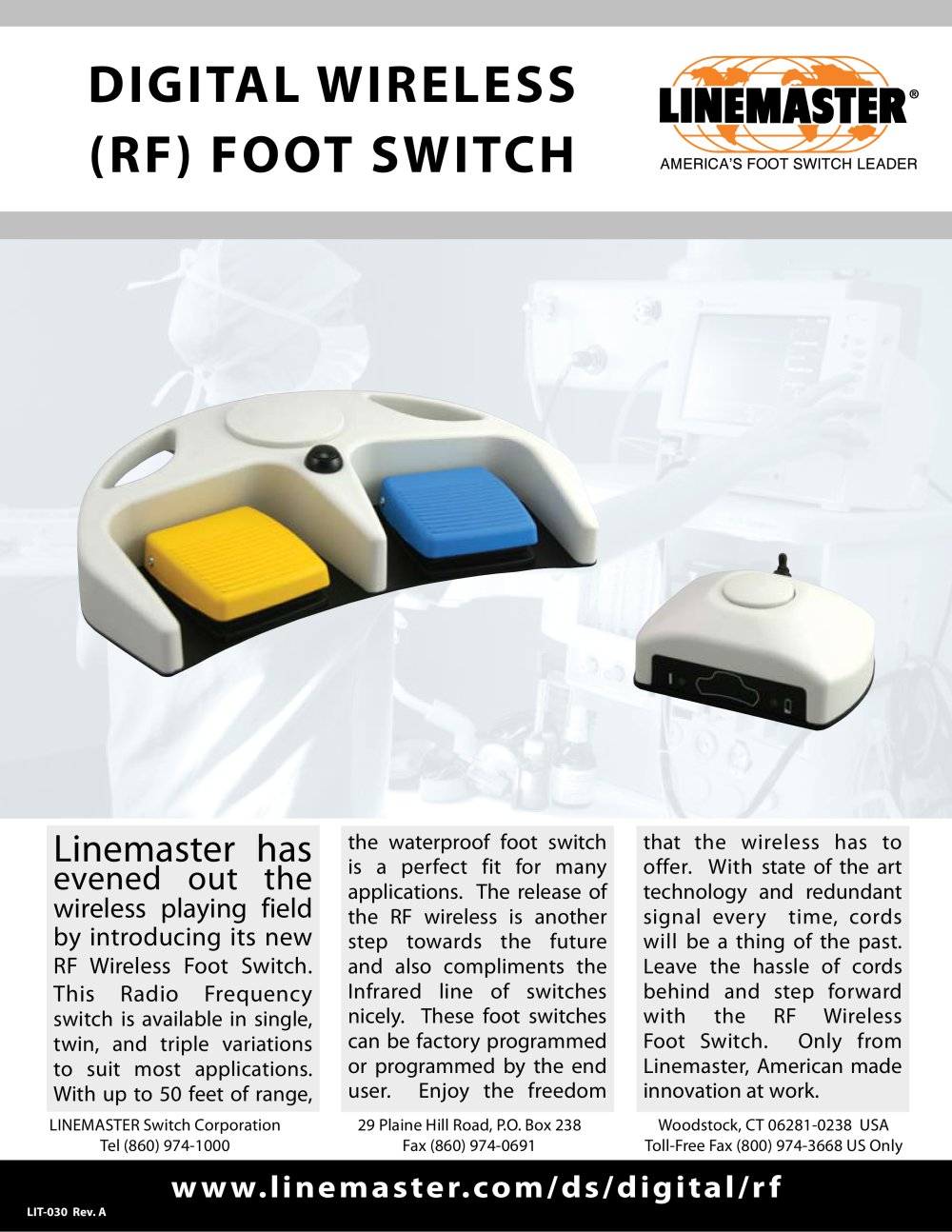

DIGITAL WIRELESS (RF) FOOT SWITCH wireless playing field by introducing its new RF Wireless Foot Switch. This Radio Frequency switch is available in single, twin, and triple variations to suit most applications. With up to 50 feet of range, LINEMASTER Switch Corporation Tel (860) 974-1000 the waterproof foot switch is a perfect fit for many applications. The release of the RF wireless is another step towards the future and also compliments the Infrared line of switches nicely. These foot switches can be factory programmed or programmed by the end user. Enjoy the freedom 29 Plaine Hill Road, P.O. Box 238 Fax (860) 974-0691 AMERICA’S FOOT SWITCH LEADER that the wireless has to offer. With state of the art technology and redundant signal every time, cords will be a thing of the past. Leave the hassle of cords behind and step forward with the RF Wireless Foot Switch. Only from Linemaster, American made innovation at work. Woodstock, CT 06281-0238 USA Toll-Free Fax (800) 974-3668 US Only

Open the catalog to page 1

Radio Frequency Foot Switches The Fu t u re i s Now AMERICA’S FOOT SWITCH LEADER RF Wireless Features & Options Range: Typically 50 Feet Switch Functions: Maximum of 5 Latency: Typically 50 milliseconds Transmitter Battery Life: 400 hours @ 50% Duty Cycle Typical Waterproof - IP68 Degree of Protection Power Consumption (Transmitter): Stand-by 2ua Power Requirements (Receiver): 6VDC @ 200ma (Other voltages available) Dimensions (W x H x D) TRANSMITTER SIZES: Single: 7.75 in x 2.63 in x 8.5 in Twin: 14.0 in x 2.63 in x 10.0 in Triple: 20.5 in x 2.63 in x 11.0 in TRANSMITTER WEIGHTS: Single:...

Open the catalog to page 2
