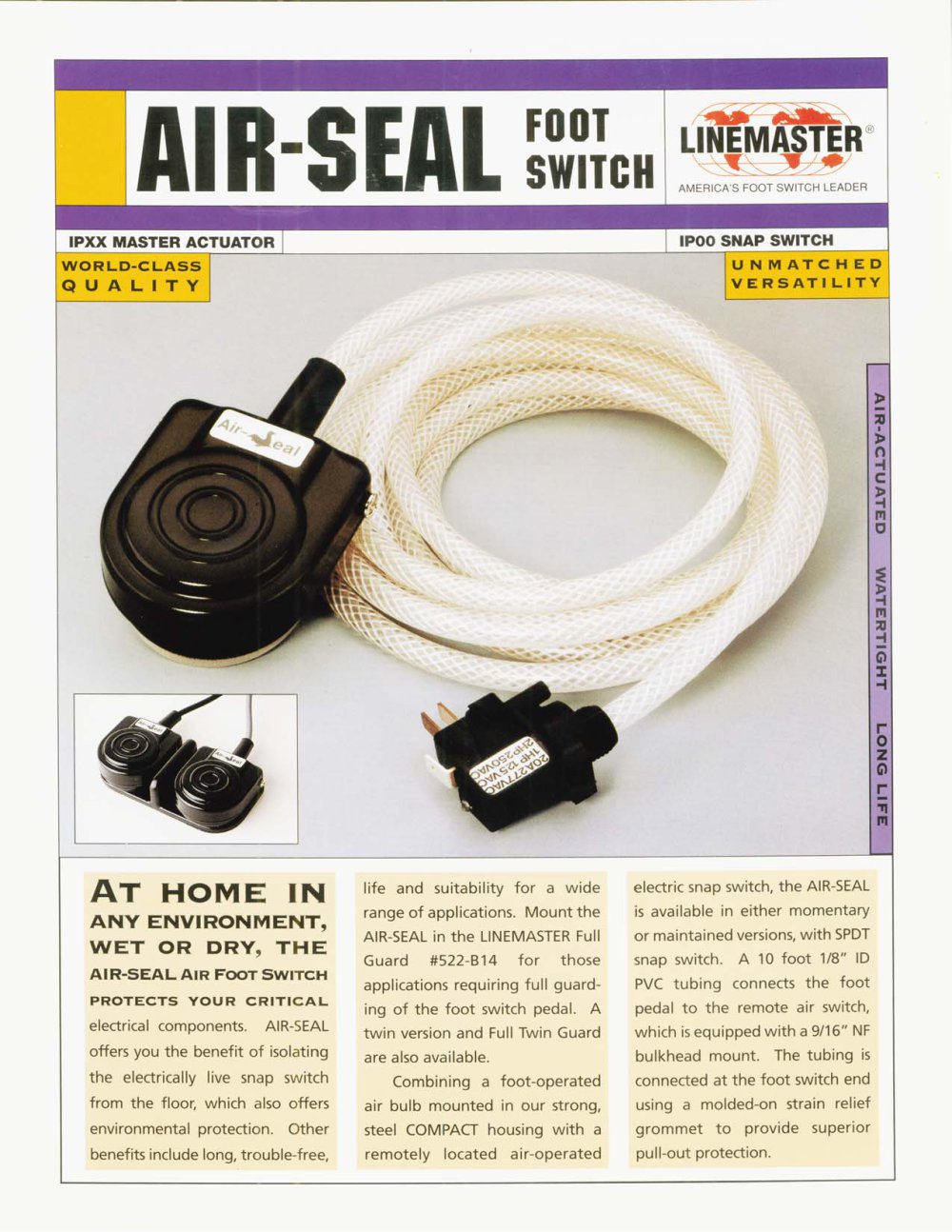

AIR-ACTUATED WATERTIGHT LONG LIFE AT HOME IN ANY ENVIRONMENT, WET OR DRY, THE AIR-SEAL AIR FOOT SWITCH PROTECTS YOUR CRITICAL electrical components. AIR-SEAL offers you the benefit of isolating the electrically live snap switch from the floor, which also offers environmental protection. Other benefits include long, trouble-free. life and suitability for a wide range of applications. Mount the AIR-SEAL in the LINEMASTER Full Guard #522-B14 for those applications requiring full guarding of the foot switch pedal. A twin version and Full Twin Guard are also available. Combining a foot-operated air bulb mounted in our strong, steel COMPACT housing with a remotely located air-operated electric snap switch, the AIR-SEAL is available in either momentary or maintained versions, with SPDT snap switch. A 10 foot 1/8" ID PVC tubing connects the foot pedal to the remote air switch, which is equipped with a 9/16" NF bulkhead mount. The tubing is connected at the foot switch end using a molded-on strain relief grommet to provide superior pull-out protection.
