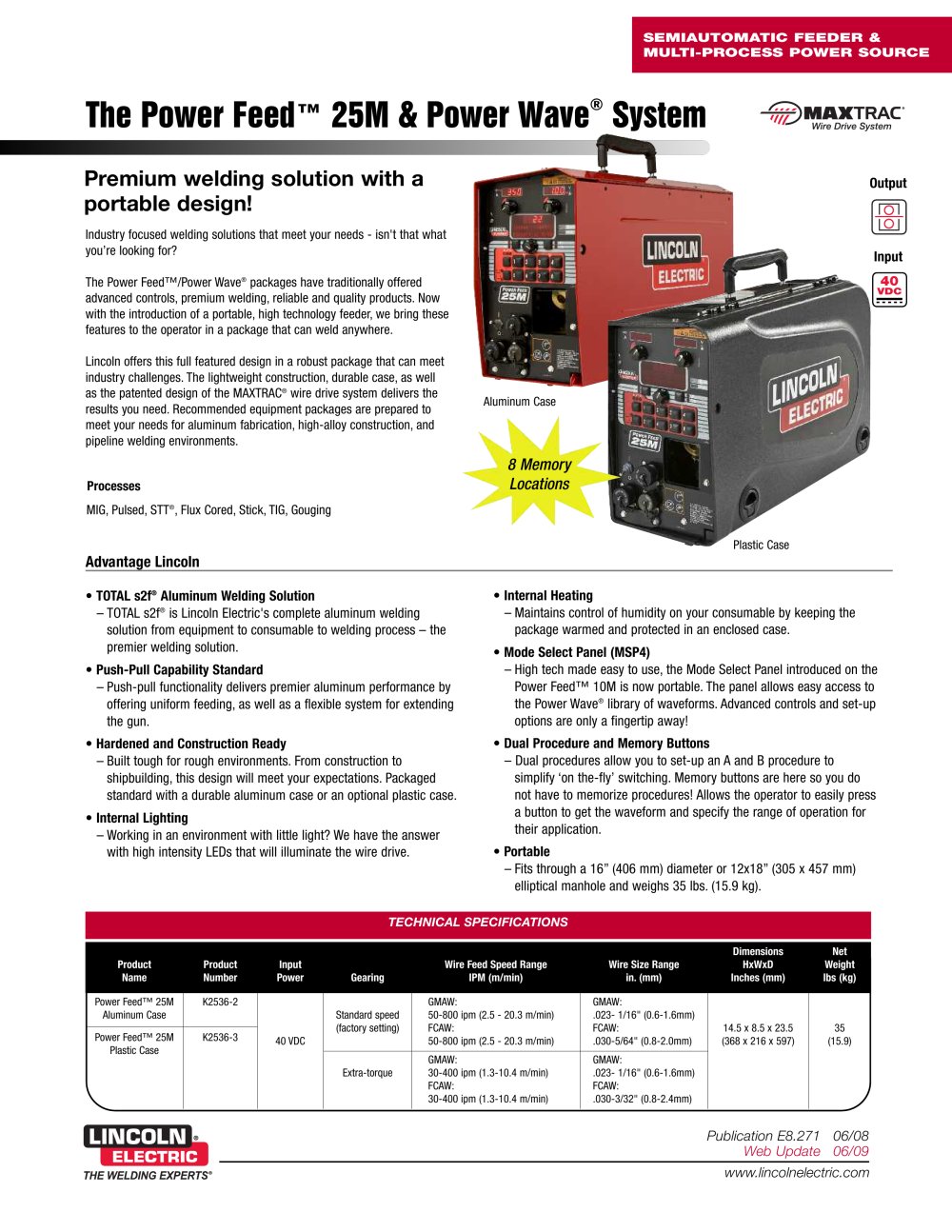

Power Feed 25M Wire Feeder Product Info - 1

TECHNICAL SPECIFICATIONS Product Name Product Number Input Power Gearing Wire Feed Speed Range IPM (m/min) Wire Size Range in. (mm) Dimensions HxWxD Inches (mm) Net Weight lbs (kg) Power Feed™ 25M Aluminum Case Power Feed™ 25M Plastic Case K2536-2 K2536-3 40 VDC Standard speed (factory setting) GMAW: 50-800 ipm (2.5 - 20.3 m/min) FCAW: 50-800 ipm (2.5 - 20.3 m/min) GMAW: .023- 1/16" (0.6-1.6mm) FCAW: .030-5/64" (0.8-2.0mm) 14.5 x 8.5 x 23.5 (368 x 216 x 597) 35 (15.9) Extra-torque GMAW: 30-400 ipm (1.3-10.4 m/min) FCAW: 30-400 ipm (1.3-10.4 m/min) GMAW: .023- 1/16" (0.6-1.6mm) FCAW: .030-3/32" (0.8-2.4mm) The Power Feed™ 25M & Power Wave® System ENGINE DRIVEN WELDERS Premium welding solution with a portable design! SEMIAUTOMATIC FEEDER & MULTI-PROCESS POWER SOURCE Industry focused welding solutions that meet your needs - isn't that what you’re looking for? The Power Feed™/Power Wave® packages have traditionally offered advanced controls, premium welding, reliable and quality products. Now with the introduction of a portable, high technology feeder, we bring these features to the operator in a package that can weld anywhere. Lincoln offers this full featured design in a robust package that can meet industry challenges. The lightweight construction, durable case, as well as the patented design of the MAXTRAC® wire drive system delivers the results you need. Recommended equipment packages are prepared to meet your needs for aluminum fabrication, high-alloy construction, and pipeline welding environments. Publication E8.271 06/08 Web Update 06/09 www.lincolnelectric.com • TOTAL s2f® Aluminum Welding Solution – TOTAL s2f® is Lincoln Electric's complete aluminum welding solution from equipment to consumable to welding process – the premier welding solution. • Push-Pull Capability Standard – Push-pull functionality delivers premier aluminum performance by offering uniform feeding, as well as a flexible system for extending the gun. • Hardened and Construction Ready – Built tough for rough environments. From construction to shipbuilding, this design will meet your expectations. Packaged standard with a durable aluminum case or an optional plastic case. • Internal Lighting – Working in an environment with little light? We have the answer with high intensity LEDs that will illuminate the wire drive. Output Input MIG, Pulsed, STT®, Flux Cored, Stick, TIG, Gouging Processes Advantage Lincoln 40 VDC • Internal Heating – Maintains control of humidity on your consumable by keeping the package warmed and protected in an enclosed case. • Mode Select Panel (MSP4) – High tech made easy to use, the Mode Select Panel introduced on the Power Feed™ 10M is now portable. The panel allows easy access to the Power Wave® library of waveforms. Advanced controls and set-up options are only a fingertip away! • Dual Procedure and Memory Buttons – Dual procedures allow you to set-up an A and B procedure to simplify ‘on the-fly’ switching. Memory buttons are here so you do not have to memorize procedures! Allows the operator to easily press a button to get the waveform and specify the range of operation for their application. • Portable – Fits through a 16” (406 mm) diameter or 12x18” (305 x 457 mm) elliptical manhole and weighs 35 lbs. (15.9 kg). 8 Memory Locations Plastic Case Aluminum Case

Open the catalog to page 1

Power Feed 25M Wire Feeder Product Info - 2

FEATURES A CLOSER LOOK A Dual Encoder Display • Bright high intensity display of voltage, wire feed speed and amps. Mode Select Panel (MSP4) - as shown above • Allows selection of weld mode and access to start options, end options and arc control. 6 Pin Remote Connector • Use with a remote output control kit or a foot pedal. Water Cooled Gun Kit Connection (optional) • Requires K590-6. 7 Pin Push Pull Connector • Connects Python® Plus, Python®, or Cobramatic® guns. Standard 5 Pin Gun Trigger Connection B F G H J I Mode Select Panel (MSP4) • Provides easy selection of weld mode as well as...

Open the catalog to page 2

Power Feed 25M Wire Feeder Product Info - 3

An Inside Look Case Back HARDWARE FEATURES A A Flowmeter with Control Value • Used to regulate and monitor shielding gas flow at the feeder to compensate for long shielding gas hoses. Shielding Gas Input • Rugged, one piece solenoid includes a screen to filter dirt. 5 Pin ArcLink® Connector • Now with a patent pending Spin-Nut for easy connection of the cable. 4/0 Electrode Lead (1) • Rated for high amperage welding. (1) Add Connector of your choice A B Gas Purge/Cold Feed Switch • Clears shielding gas with cold feed electrode for safety. Light Switch • Turns on high intensity LED’s to...

Open the catalog to page 3

Power Feed 25M Wire Feeder Product Info - 4

Power Feed™ 25M & Power Wave® System www.[4] lincolnelectric.com ALUMINUM PROCESS SOLUTION ALUMINUM TOTAL s2f® is Lincoln Electric's complete aluminum welding solution from equipment to consumable to welding process - the premier welding solution for your needs. The TOTAL s2f® aluminum welding process focuses on the details from the start 2 finish of every weld. Delivering a soft aluminum arc, consistent starting, conditioned ending, and improved cleaning action, the result is superior welding on tough aluminum jobs. TOTAL s2f ® is the answer! • Excellent Starting - The Pulse and...

Open the catalog to page 4

Power Feed 25M Wire Feeder Product Info - 5

Power Feed™ 25M & Power Wave® System www.[5] lincolnelectric.com ALUMINUM SYSTEM SET-UP TOTAL s2f® EQUIPMENT SYSTEM CONFIGURATION ALUMINUM 1 2 3 5 4 7 6 RECOMMENDED EQUIPMENT ALUMINUM Product Number Product Description Quantity Required K2368-1 or K2202-1 or K2203-1 Power Wave® 355M Power Wave® 455M Power Wave® 455M/STT (depending on customer needs) 1 K2536-2 Power Feed™ 25M 1 K1543-xx or ArcLink® Control Cable 1 K2683-xx Heavy Duty ArcLink® Control Cable 1 K1803-1 Work and Wire Feeder 2/0 Weld Cable Package 1 K910-2 Work Clamp (500A @ 60% Duty Cycle) 1 K2447-x or Python® Plus Push-Pull...

Open the catalog to page 5
