SUPER TORQUE MOTOR 4118

SUPER TORQUE MOTOR 4118

Product catalog summary

Specifications:
NEMA Size 17 motors are designed for cost-effectiveness and offer custom windings at no additional cost. They feature 26 AWG lead wires with a minimum length of 12 inches. The motors are available in both unipolar and bipolar configurations, with various models offering different specifications in terms of dimensions, current, torque, resistance, inductance, inertia, and weight.

Unipolar Models:
- Model 4118S-04: 0.95 Amps/Phase, 30 oz-in torque, 5 Ohm resistance.
- Model 4118M-06: 1.00 Amps/Phase, 45 oz-in torque, 5.4 Ohm resistance.
- Model 4118L-07: 1.50 Amps/Phase, 65 oz-in torque, 2.6 Ohm resistance.
- Model 4118L-25: 0.45 Amps/Phase, 65 oz-in torque, 25 Ohm resistance.

Bipolar Models:
- Model 4118S-02: 1.30 Amps/Phase, 45 oz-in torque, 2.8 Ohm resistance.
- Model 4118M-01: 1.70 Amps/Phase, 63 oz-in torque, 1.5 Ohm resistance.
- Model 4118L-01: 2.00 Amps/Phase, 83 oz-in torque, 1.4 Ohm resistance.

Procedures and Recommendations:
- Complete the application data sheet for different windings.
- Power supply voltage can vary as long as the driver output current is controlled at the rated current.
- Contact Lin Engineering for additional bipolar torque curves.
- Specifications are subject to change without notice.
- For operating temperatures, refer to page 94.

Performance and Torque Curves:
The document includes torque curves for various models, illustrating the relationship between speed (in pulses per second and revolutions per second) and torque (in oz-in and N-m). These curves are essential for understanding the performance characteristics of each motor model under different operating conditions.

Additional Information:
The average lead time for prototypes, including custom windings and shaft modifications, is 3-7 business days. For further inquiries, contact Lin Engineering at their Santa Clara, CA office.

Catalog excerpts

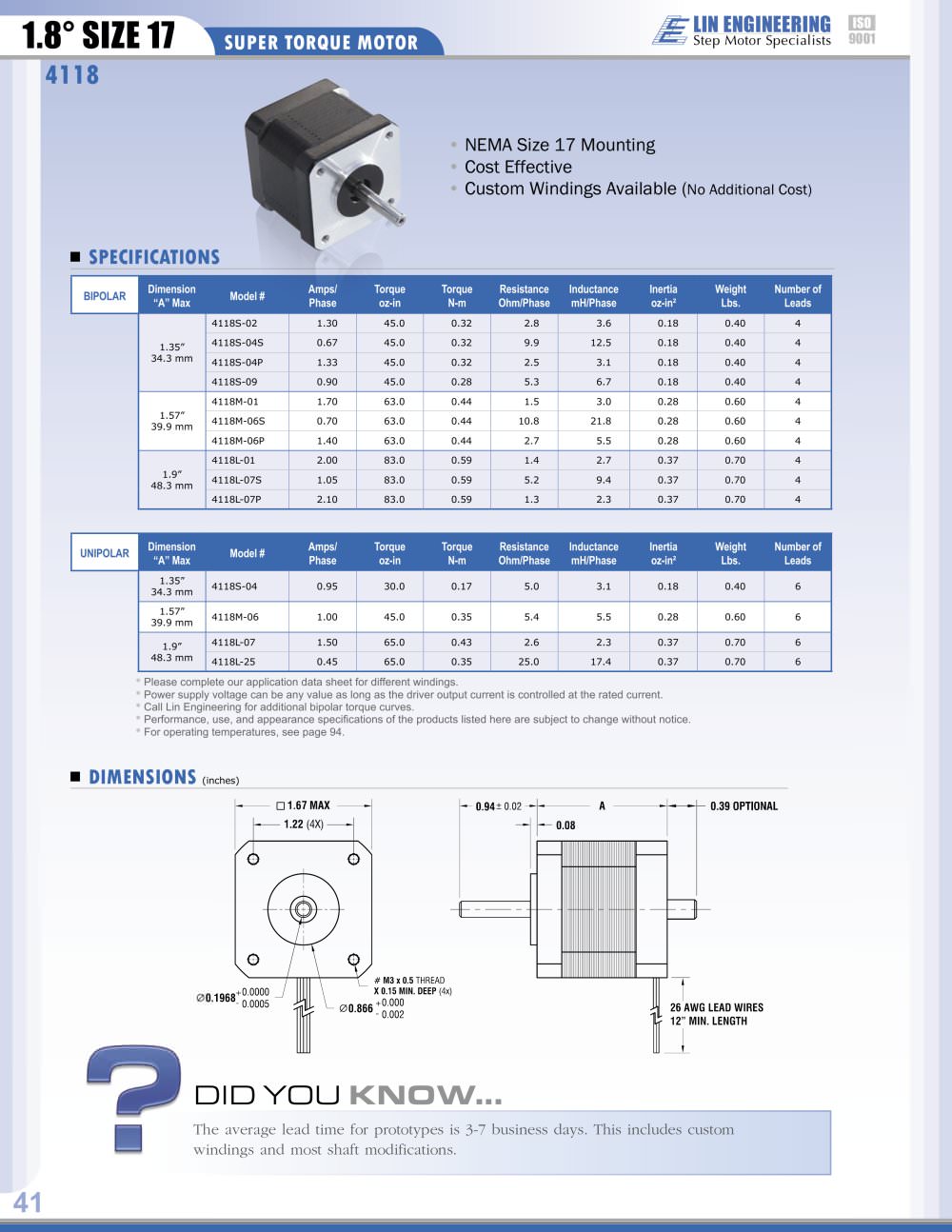

• NEMA Size 17 Mounting • Cost Effective • Custom Windings Available (No Additional Cost) SUPER TORQUE MOTOR 726 AWG LEAD WIRES12” MIN. LENGTH UNIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 1.35” 34.3 mm 4118S-04 0.95 30.0 0.17 5.0 3.1 0.18 0.40 6 1.57” 39.9 mm 4118M-06 1.00 45.0 0.35 5.4 5.5 0.28 0.60 6 1.9” 48.3 mm 4118L-07 1.50 65.0 0.43 2.6 2.3 0.37 0.70 6 4118L-25 0.45 65.0 0.35 25.0 17.4 0.37 0.70 6 BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 1.35” 34.3 mm 4118S-02 1.30 45.0 0.32 2.8 3.6 0.18 0.40 4 4118S-04S 0.67 45.0 0.32 9.9 12.5 0.18 0.40 4 4118S-04P 1.33 45.0 0.32 2.5 3.1 0.18 0.40 4 4118S-09 0.90 45.0 0.28 5.3 6.7 0.18 0.40 4 1.57” 39.9 mm 4118M-01 1.70 63.0 0.44 1.5 3.0 0.28 0.60 4 4118M-06S 0.70 63.0 0.44 10.8 21.8 0.28 0.60 4 4118M-06P 1.40 63.0 0.44 2.7 5.5 0.28 0.60 4 1.9” 48.3 mm 4118L-01 2.00 83.0 0.59 1.4 2.7 0.37 0.70 4 4118L-07S 1.05 83.0 0.59 5.2 9.4 0.37 0.70 4 4118L-07P 2.10 83.0 0.59 1.3 2.3 0.37 0.70 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the rated current. • Call Lin Engineering for additional bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 41 SUPER TORQUE MOTOR 1.8° SIZE 17 DIMENSIONS (inches) SPECIFICATIONSLIN ENGINEERINGISO9001Step Motor Specialists 4118 The average lead time for prototypes is 3-7 business days. This includes custom windings and most shaft modifications. DID YOU KNOW...
