SUPER SLIM LINE MOTOR 416-05/06

SUPER SLIM LINE MOTOR 416-05/06

Product catalog summary

Specifications:
- NEMA Size 17 Mounting
- Low Inertia and Excellent Step Accuracy
- Ideal for High-Speed Applications
- Low Profile and Compact Size
- Custom Windings Available at No Additional Cost

Motor Models and Specifications:
1. Model 416-05-03: 0.70 Amps/Phase, 6.0 oz-in Torque, 3.0 Ohm/Phase Resistance, 1.8 mH/Phase Inductance, 0.03 oz-in² Inertia, 0.20 lbs Weight, 4 Leads
2. Model 416-05-04: 0.60 Amps/Phase, 6.0 oz-in Torque, 5.0 Ohm/Phase Resistance, 3.0 mH/Phase Inductance, 0.03 oz-in² Inertia, 0.20 lbs Weight, 4 Leads
3. Model 416-05-17: 0.30 Amps/Phase, 6.0 oz-in Torque, 17.5 Ohm/Phase Resistance, 10.0 mH/Phase Inductance, 0.03 oz-in² Inertia, 0.20 lbs Weight, 4 Leads
4. Model 416-05-50: 0.10 Amps/Phase, 6.0 oz-in Torque, 50.0 Ohm/Phase Resistance, 13.4 mH/Phase Inductance, 0.03 oz-in² Inertia, 0.20 lbs Weight, 4 Leads
5. Model 416-05-60: 0.15 Amps/Phase, 6.0 oz-in Torque, 63.5 Ohm/Phase Resistance, 33.9 mH/Phase Inductance, 0.03 oz-in² Inertia, 0.20 lbs Weight, 4 Leads
6. Model 416-06-05: 0.60 Amps/Phase, 7.3 oz-in Torque, 4.5 Ohm/Phase Resistance, 2.8 mH/Phase Inductance, 0.04 oz-in² Inertia, 0.21 lbs Weight, 4 Leads
7. Model 416-06-57: 0.21 Amps/Phase, 7.3 oz-in Torque, 57.1 Ohm/Phase Resistance, 32.0 mH/Phase Inductance, 0.04 oz-in² Inertia, 0.21 lbs Weight, 4 Leads

Additional Information:
- Application data sheet required for different windings.
- Power supply voltage can vary as long as driver output current is controlled at rated current.
- Contact Lin Engineering for additional bipolar torque curves.
- Specifications are subject to change without notice.
- Operating temperatures are detailed on page 94.

Torque Curves:
Graphs provided for various models showing torque (oz-in and N-m) versus speed (pps and rps) for 24vDC, Bipolar, 1/2 Stepping configurations.

Company Information:
Lin Engineering, 1990 Russell Ave., Santa Clara, CA 95054. Contact: Tel. 408-919-0200, Fax. 408-919-0201, Email: [email protected], Website: www.linengineering.com

Interesting Fact:
Lin Engineering’s step motor is used in the optical disk drive of the B-2 Stealth Bomber.

Catalog excerpts

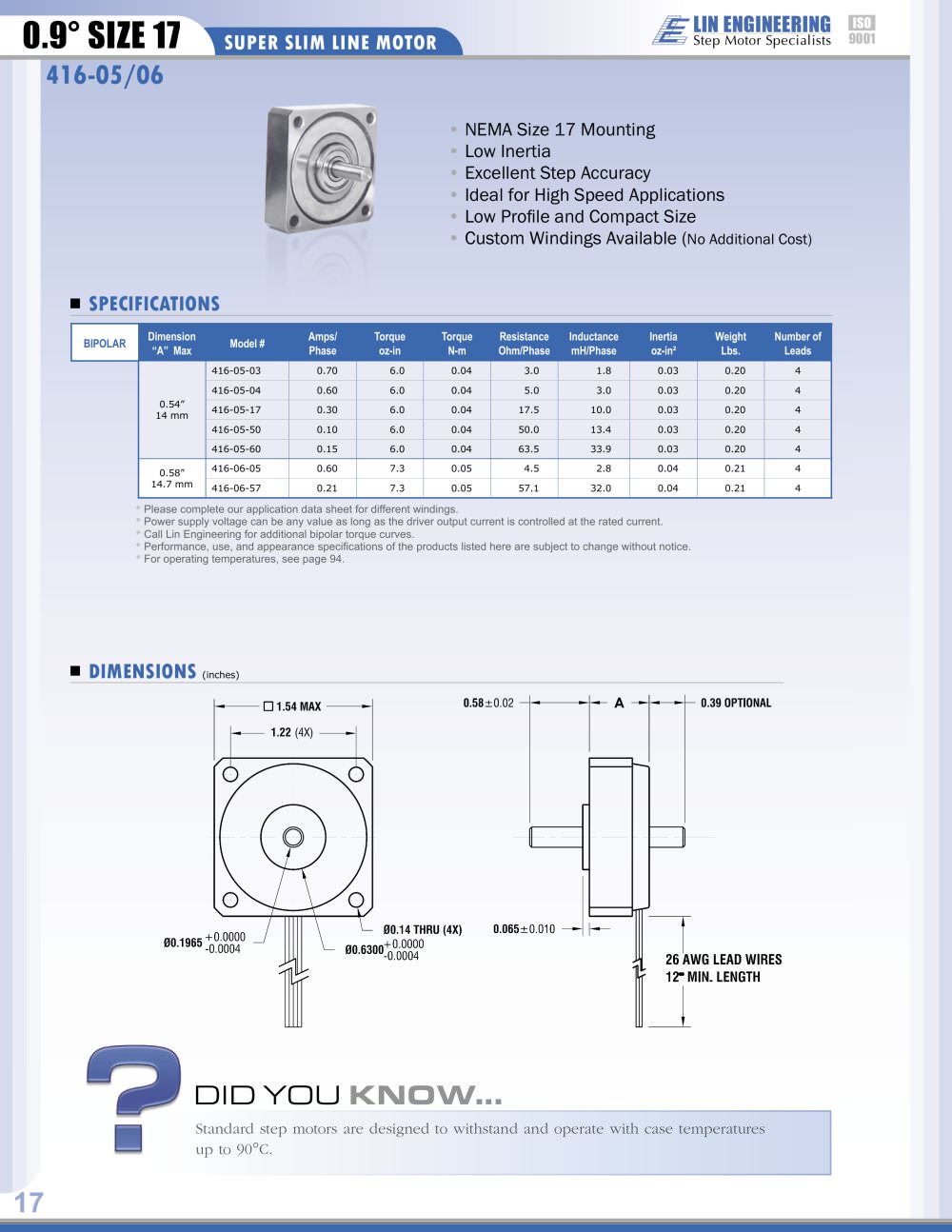

• NEMA Size 17 Mounting • Low Inertia • Excellent Step Accuracy • Ideal for High Speed Applications • Low Profile and Compact Size • Custom Windings Available (No Additional Cost) BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 0.54” 14 mm 416-05-03 0.70 6.0 0.04 3.0 1.8 0.03 0.20 4 416-05-04 0.60 6.0 0.04 5.0 3.0 0.03 0.20 4 416-05-17 0.30 6.0 0.04 17.5 10.0 0.03 0.20 4 416-05-50 0.10 6.0 0.04 50.0 13.4 0.03 0.20 4 416-05-60 0.15 6.0 0.04 63.5 33.9 0.03 0.20 4 0.58” 14.7 mm 416-06-05 0.60 7.3 0.05 4.5 2.8 0.04 0.21 4 416-06-57 0.21 7.3 0.05 57.1 32.0 0.04 0.21 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the rated current. • Call Lin Engineering for additional bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 17 SUPER SLIM LINE MOTOR 0.9° SIZE 17 DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 416-05/06 DID YOU KNOW... Standard step motors are designed to withstand and operate with case temperatures up to 90°C.
