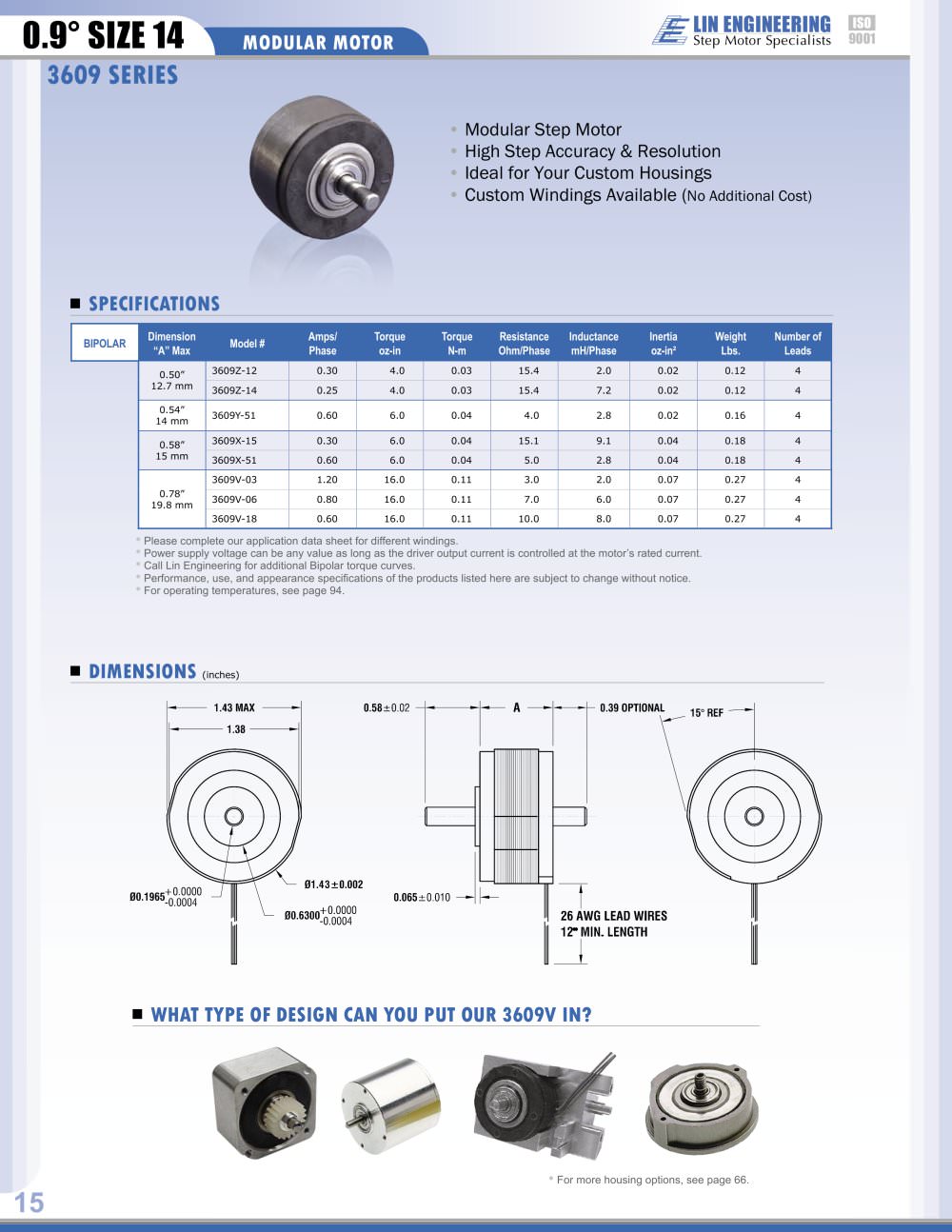

MODULAR MOTOR 0.9° SIZE 14 3 • Modular Step Motor • High Step Accuracy & Resolution • Ideal for Your Custom Housings • Custom Windings Available (No Additional Cost) BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 0.50” 12.7 mm 3609Z-12 0.30 4.0 0.03 15.4 2.0 0.02 0.12 4 3609Z-14 0.25 4.0 0.03 15.4 7.2 0.02 0.12 4 0.54” 14 mm 3609Y-51 0.60 6.0 0.04 4.0 2.8 0.02 0.16 4 0.58” 15 mm 3609X-15 0.30 6.0 0.04 15.1 9.1 0.04 0.18 4 3609X-51 0.60 6.0 0.04 5.0 2.8 0.04 0.18 4 0.78” 19.8 mm 3609V-03 1.20 16.0 0.11 3.0 2.0 0.07 0.27 4 3609V-06 0.80 16.0 0.11 7.0 6.0 0.07 0.27 4 3609V-18 0.60 16.0 0.11 10.0 8.0 0.07 0.27 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the motor’s rated current. • Call Lin Engineering for additional Bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 15 DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 3609 SERIES WHAT TYPE OF DESIGN CAN YOU PUT OUR 3609V IN? • For more housing options, see page 66.
