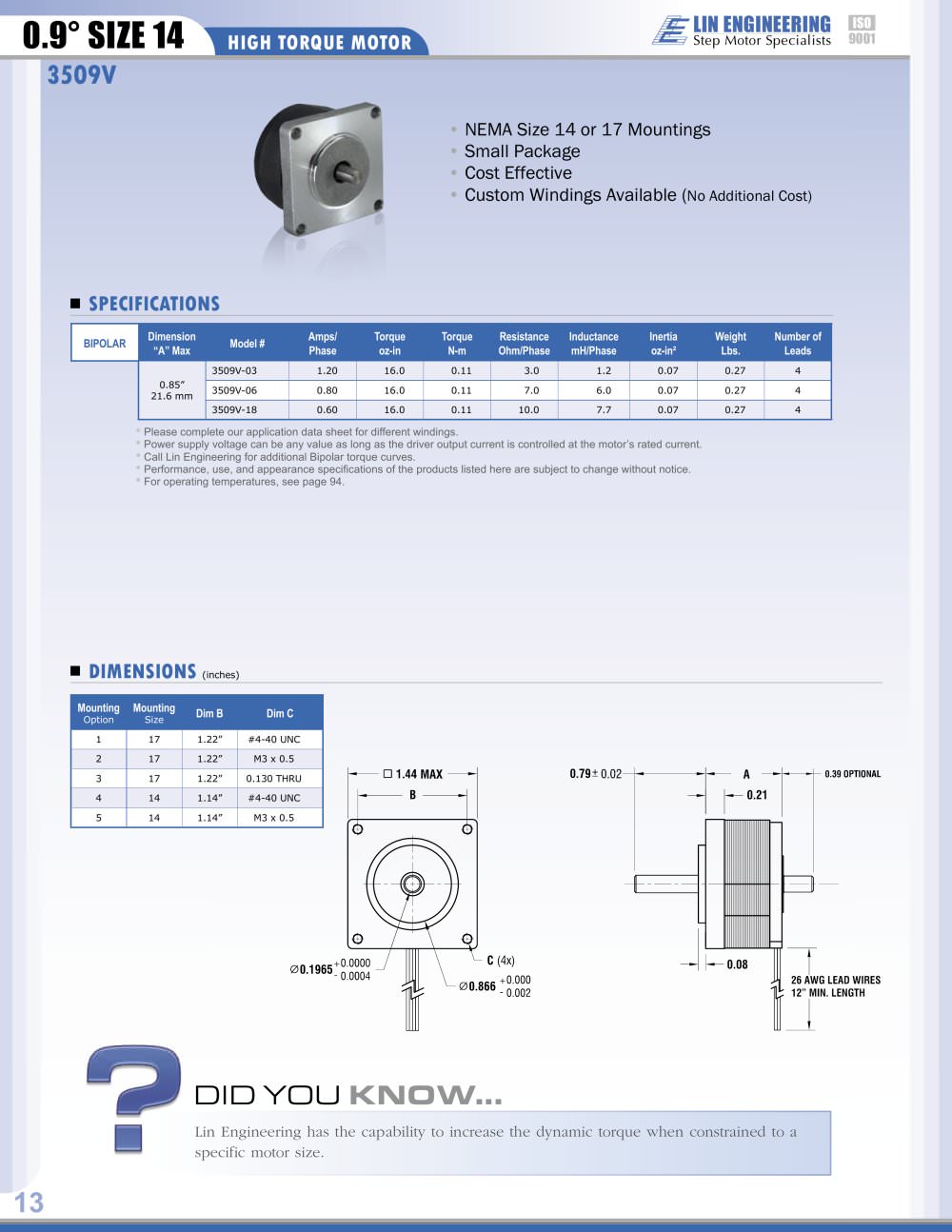

HIGH TORQUE MOTOR 3509V

HIGH TORQUE MOTOR 3509V
2Pages

Catalog excerpts

HIGH TORQUE MOTOR A26 AWG LEAD WIRES12” MIN. LENGTH • NEMA Size 14 or 17 Mountings • Small Package • Cost Effective • Custom Windings Available (No Additional Cost) Mounting Option Mounting Size Dim B Dim C 1 17 1.22” #4-40 UNC 2 17 1.22” M3 x 0.5 3 17 1.22” 0.130 THRU 4 14 1.14” #4-40 UNC 5 14 1.14” M3 x 0.5 BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 0.85” 21.6 mm 3509V-03 1.20 16.0 0.11 3.0 1.2 0.07 0.27 4 3509V-06 0.80 16.0 0.11 7.0 6.0 0.07 0.27 4 3509V-18 0.60 16.0 0.11 10.0 7.7 0.07 0.27 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the motor’s rated current. • Call Lin Engineering for additional Bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 13 0.9° SIZE 14 DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 3509V DID YOU KNOW... Lin Engineering has the capability to increase the dynamic torque when constrained to a specific motor size.
