HIGH ACCURACY MOTOR 417 SERIES

HIGH ACCURACY MOTOR 417 SERIES

Product catalog summary

Specifications:
NEMA Size 17 motors are designed for high accuracy and speed applications. They feature low inertia and excellent step accuracy, making them ideal for precise operations. Custom windings are available at no additional cost.

Motor Models and Specifications:
The document lists various models of the 417 series motors, detailing their dimensions, electrical specifications, and performance metrics. Key parameters include:

Amps/Phase: Ranges from 0.60 to 2.00.
Torque: Varies from 16.0 oz-in (0.08 N-m) to 30.0 oz-in (0.21 N-m).
Resistance and Inductance: Resistance ranges from 0.7 to 12.0 Ohm/Phase, and Inductance from 0.3 to 10.5 mH/Phase.
Inertia: Ranges from 0.05 to 0.13 oz-in².
Weight: Approximately 0.30 to 0.53 lbs.
Number of Leads: 4 for all models.

Performance and Usage:
The motors are suitable for various applications with a power supply voltage that can be adjusted as long as the driver output current is controlled at the rated current. Additional bipolar torque curves are available upon request.

Accuracy:
Lin Engineering's 0.9º motors boast superior microstepping accuracy of ±1.5 arc minutes compared to competitors' ±4.5 arc minutes.

Torque Curves:
The document includes torque curves for different motor models, illustrating the relationship between speed (in pulses per second and revolutions per second) and torque (in oz-in and N-m). These curves help in understanding the performance characteristics of each motor model under various operating conditions.

Additional Information:
For further details on operating temperatures and other specifications, users are directed to additional resources or to contact Lin Engineering directly.

Catalog excerpts

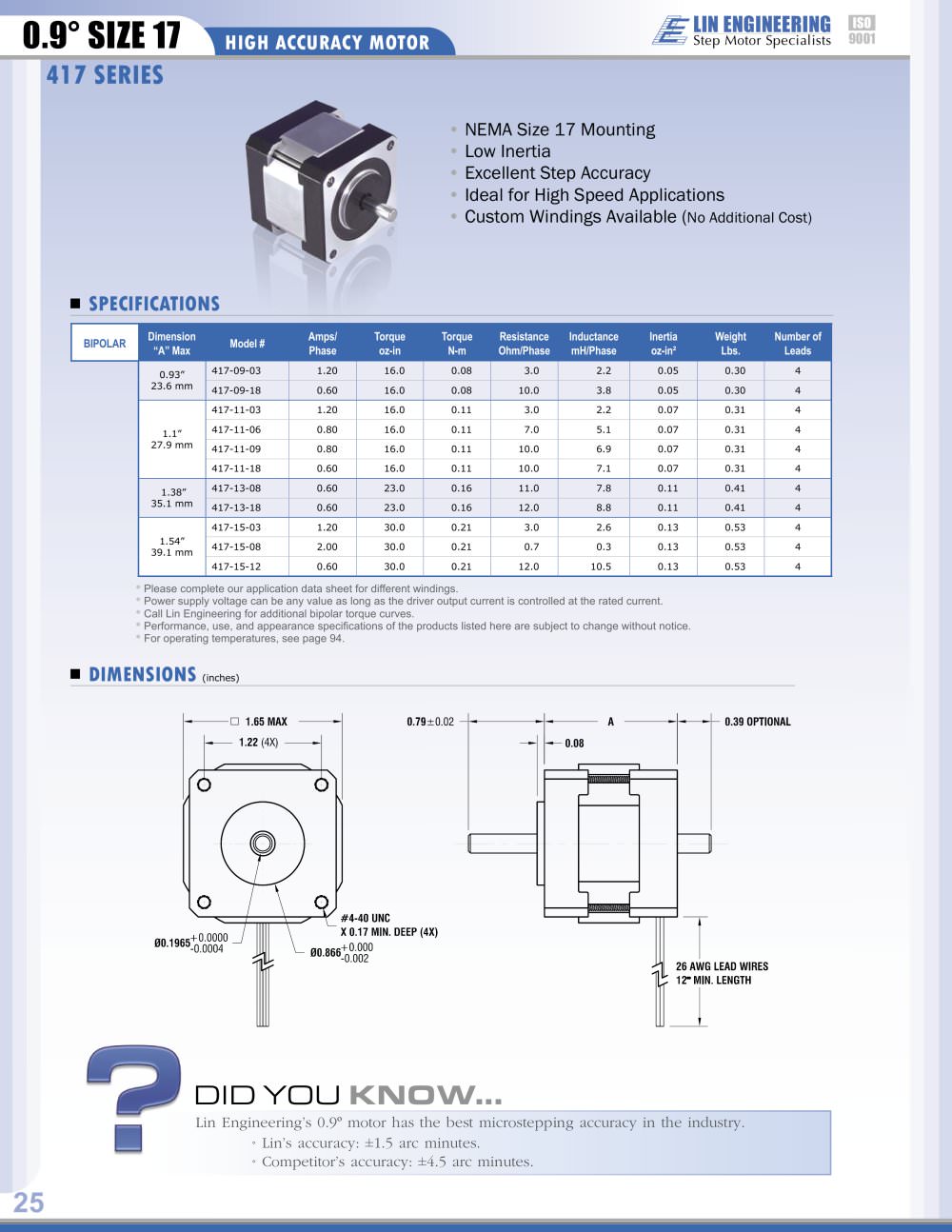

• NEMA Size 17 Mounting • Low Inertia • Excellent Step Accuracy • Ideal for High Speed Applications • Custom Windings Available (No Additional Cost) HIGH ACCURACY MOTOR BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 0.93” 23.6 mm 417-09-03 1.20 16.0 0.08 3.0 2.2 0.05 0.30 4 417-09-18 0.60 16.0 0.08 10.0 3.8 0.05 0.30 4 1.1” 27.9 mm 417-11-03 1.20 16.0 0.11 3.0 2.2 0.07 0.31 4 417-11-06 0.80 16.0 0.11 7.0 5.1 0.07 0.31 4 417-11-09 0.80 16.0 0.11 10.0 6.9 0.07 0.31 4 417-11-18 0.60 16.0 0.11 10.0 7.1 0.07 0.31 4 1.38” 35.1 mm 417-13-08 0.60 23.0 0.16 11.0 7.8 0.11 0.41 4 417-13-18 0.60 23.0 0.16 12.0 8.8 0.11 0.41 4 1.54” 39.1 mm 417-15-03 1.20 30.0 0.21 3.0 2.6 0.13 0.53 4 417-15-08 2.00 30.0 0.21 0.7 0.3 0.13 0.53 4 417-15-12 0.60 30.0 0.21 12.0 10.5 0.13 0.53 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the rated current. • Call Lin Engineering for additional bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 25 HIGH ACCURACY MOTOR 0.9° SIZE 17 DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 417 SERIES DID YOU KNOW... Lin Engineering’s 0.9º motor has the best microstepping accuracy in the industry. • Lin’s accuracy: ±1.5 arc minutes. • Competitor’s accuracy: ±4.5 arc minutes.
