GOLD LINE MOTOR

GOLD LINE MOTOR
2Pages

Catalog excerpts

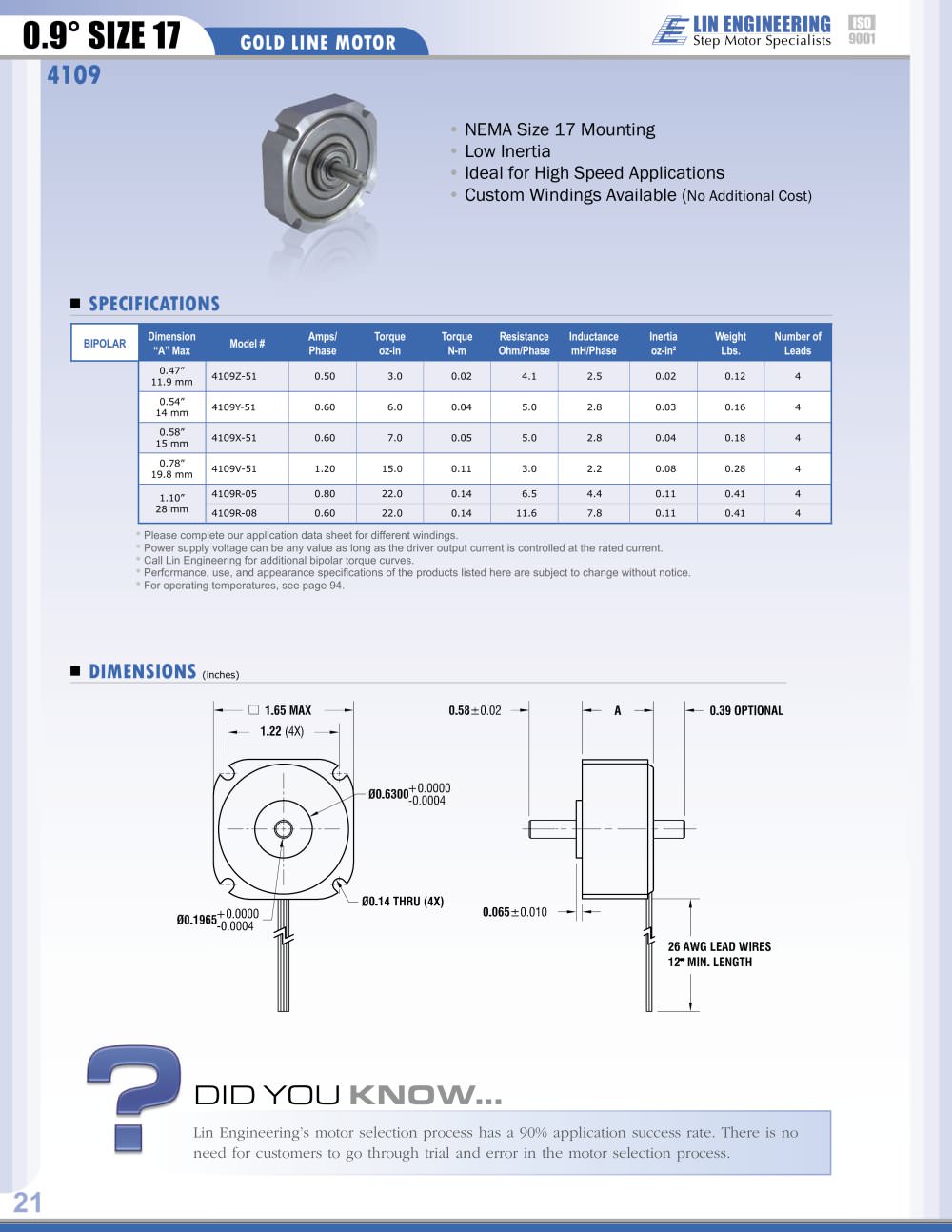

• NEMA Size 17 Mounting • Low Inertia • Ideal for High Speed Applications • Custom Windings Available (No Additional Cost) BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 0.47” 11.9 mm 4109Z-51 0.50 3.0 0.02 4.1 2.5 0.02 0.12 4 0.54” 14 mm 4109Y-51 0.60 6.0 0.04 5.0 2.8 0.03 0.16 4 0.58” 15 mm 4109X-51 0.60 7.0 0.05 5.0 2.8 0.04 0.18 4 0.78” 19.8 mm 4109V-51 1.20 15.0 0.11 3.0 2.2 0.08 0.28 4 1.10” 28 mm 4109R-05 0.80 22.0 0.14 6.5 4.4 0.11 0.41 4 4109R-08 0.60 22.0 0.14 11.6 7.8 0.11 0.41 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the rated current. • Call Lin Engineering for additional bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. 21 GOLD LINE MOTOR 0.9° SIZE 17 DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 4109 DID YOU KNOW... Lin Engineering’s motor selection process has a 90% application success rate. There is no need for customers to go through trial and error in the motor selection process.
