1.8º SIZE 14
2Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

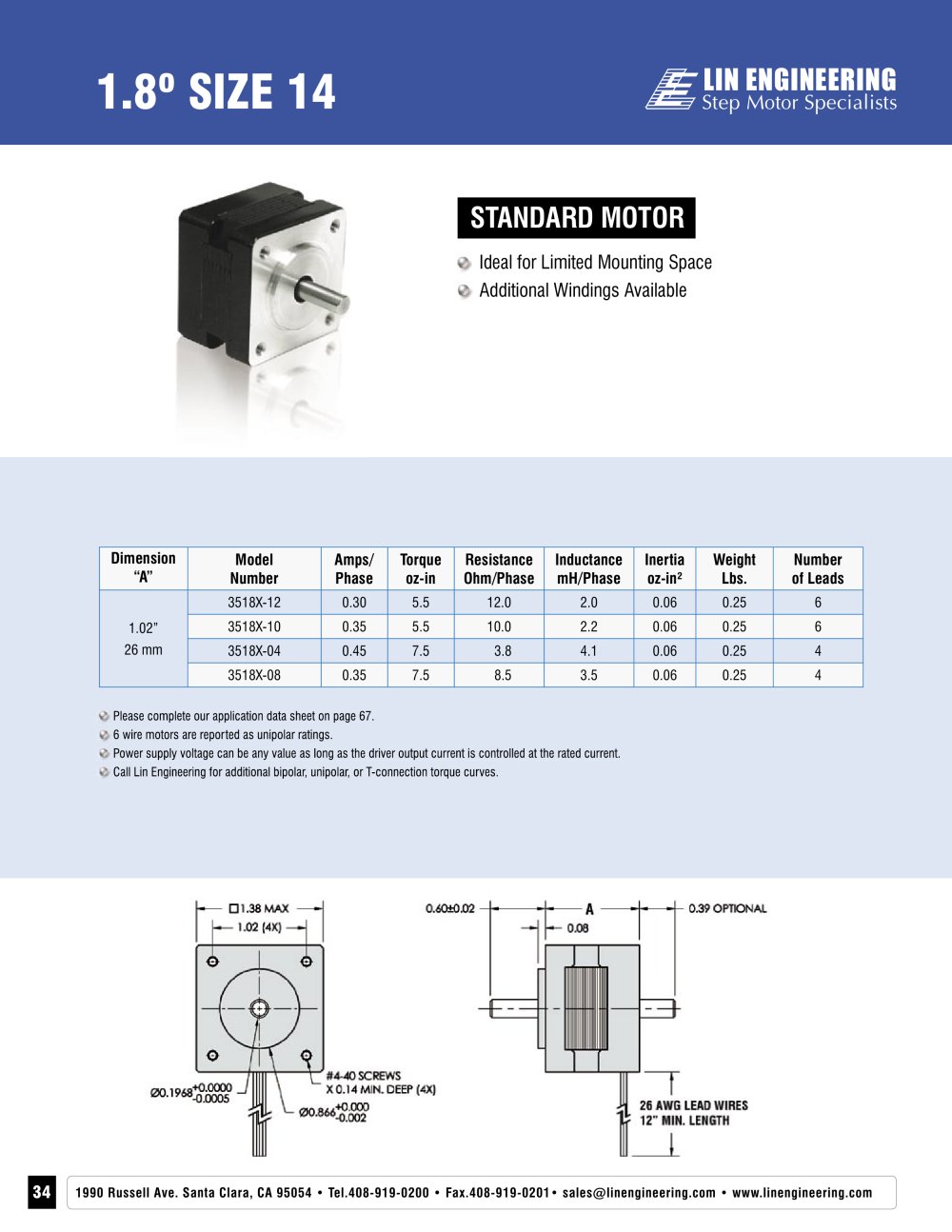

34 1990 Russell Ave. Santa Clara, CA 95054 • Tel.408-919-0200 • Fax.408-919-0201• sales@linengineering.com • www.linengineering.com LIN ENGINEERING Step Motor Specialists STANDARD MOTOR Ideal for Limited Mounting Space Additional Windings Available 1.8º SIZE 14 Dimension “A” Model Number Amps/ Phase Torque oz-in Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 1.02” 26 mm 3518X-12 0.30 5.5 12.0 2.0 0.06 0.25 6 3518X-10 0.35 5.5 10.0 2.2 0.06 0.25 6 3518X-04 0.45 7.5 3.8 4.1 0.06 0.25 4 3518X-08 0.35 7.5 8.5 3.5 0.06 0.25 4 Please complete our application data sheet on page 67. 6 wire motors are reported as unipolar ratings. Power supply voltage can be any value as long as the driver output current is controlled at the rated current. Call Lin Engineering for additional bipolar, unipolar, or T-connection torque curves.
