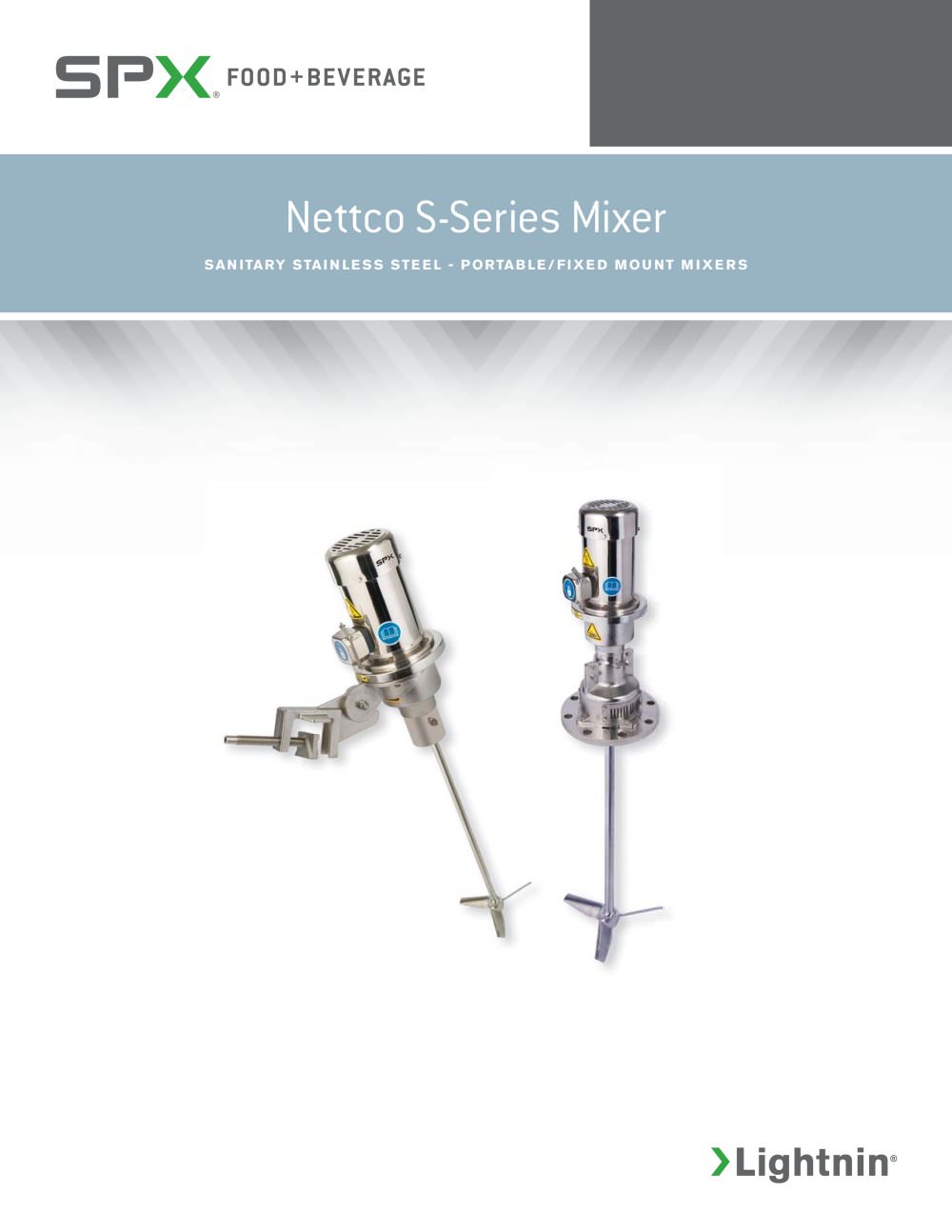

Nettco S-Series Mixer S A N I TA RY S TA I N L E S S S T E E L - P O R TA B L E / F I X E D M O U N T M I X E R S

Open the catalog to page 1

A World Leader In Industrial Mixing Since 1923. Lightnin has over 85 years of unrivaled experience in industrial mixing technology, process knowledge, and technological innovation. Lightnin enjoys a global reputation for Introducing a new economical Portable and Fixed Mount Mixer System congured to meet your sanitary needs durable, long-lasting mixers, agitators, aerators, and flocculators for fluid process systems. We offer a full spectrum of impeller designs for diverse applications. In addition, we offer a The Nettco S-Series sanitary mixer is available in a wide range of mixing and...

Open the catalog to page 2

M O D U L A R D E S I G N F E AT U R E S : Clamp Module (P): • Bolted onto base module • Clamps to vessel or stand • 0° to 20° horizontal mounting • 0° to 90° vertical adjustment Adjustable mounting - controls vessel contents swirl for improved mixing FIxed-Mount Open Tank Module (Q): Open Tank Flange Module • Attaches to base module Use on open tanks where a seal is not required • Vertical on center for baffled tanks • Vertical offset for unbaffled tanks • Can be angular mounted Bung Adaptor Allows for mixing in drums by fitting securely into the opening of the lid without the need for...

Open the catalog to page 3

Base with 20° Clamp 20° Clamp Module Flange Module Base with Flange Module Lip Seal Module Base with Lip Seal Module Mechanical Seal Module Base with Mechanical Seal Module Base Module Bung Adaptor Base with Bung Adaptor Sanitary Flange Mechanical Seal Base with Sanitary Flange Mechanical Seal Sanitary Flange Lip Seal Base with Sanitary Flange Lip Seal

Open the catalog to page 4

1. DIMENSIONS ARE FOR REFERENCE ONLY UNLESS CERTIFIED. 2. LOWER IMPELLER IS EQUIPPED WTTH STABILIZER WHEN 3. MIXER WEIGHT IS LESS SHAFT AND IMPELLERS. 4. DEPENDENT UPON SPECIFIC APPLICATION. 5. STANDARD MOUNTING FLANGE DATA.

Open the catalog to page 5

Chart Reference: Motor Code 10** Tank height to diameter ratio 0.8 - 1.2 Liquids with Newtonian viscosity characteristics S.G. difference of liquids <0.1 Use for mild blending applications Maximum density 1.10 g/cm3 Maximum viscosity ratio - 10:1 (>250cP) Mixer in operation during lling and emptying 6 Model Design Example: Mi1Q2 *Direct Drive not available with seal. ** Air Motors

Open the catalog to page 6

Chart Reference: Model Design B l e n d Ti m e ( m i n . ) No. Impeller

Open the catalog to page 7

Nettco S-Series Mixers S A N I TA RY S TA I N L E S S S T E E L P O R TA B L E / F I X E D M O U N T MIXERS G E A R D R I V E M I X E R R E PA I R K I T : • Service kits available for rapid replacement of routine service items. PBT Impeller: For low-to-medium viscosity ow controlled applications. Although superseded by the Hydrofoil, the PBT still has a specic role in applications where a degree of uid shear is benecial to the overall process result. FP 100 Impeller (Marine Prop): Recommended for applications requiring moderate pumping action and powder-wetting capabilities. Hydrofoil...
