LIGHTNIN
LIGHTNIN VSF

LIGHTNIN VSF

Product catalog summary

Overview: The document discusses the SPX Process Equipment's LIGHTNIN VSF Side-Entry Mixer, designed for Flue Gas Desulfurization (FGD) Absorber Service. It highlights the importance of investing in reliable mixing equipment for future efficiency.

Oxidation Lance System: The FGD systems have evolved to include a Forced Oxidation Lance System, which optimizes the mass transfer of oxidation air into the absorber vessel. LIGHTNIN has developed a lance sparge system, successfully implemented in various installations across Europe and China, to enhance mass transfer efficiency.

Mixing Experience: LIGHTNIN brings over 80 years of mixing experience to FGD processes, emphasizing the balance between capital cost, energy consumption, and reliability. The company has a history of successful applications of top and side entry agitators since the 1960s.

Design Features: The VSF Side-Entry Mixer includes a rugged gearbox, C-Face motor mount, and a slurry seal that requires no seal water. The A-312 Impeller is designed for strong discharge and solid suspension, reducing erosion and increasing blade life.

Testing and Scale-Up: LIGHTNIN is equipped to scale up or down mixing systems accurately, addressing the complexities of gas dispersion and mass transfer in FGD processes.

Mechanical Seal: The LIGHTNIN FGD Single Slurry Seal is engineered for harsh environments, operating without outside flush liquid, reducing operating expenses. It features a low-pressure clean-out, sleeve drive, radial bearing, and carbide faces for abrasion resistance.

Global Support: LIGHTNIN offers expert sales and service worldwide, with strategically located manufacturing and service facilities ensuring fast delivery and dependable after-order service. Genuine spare parts and service solutions are available globally.

Catalog excerpts

An SPX Process Equipment Operation

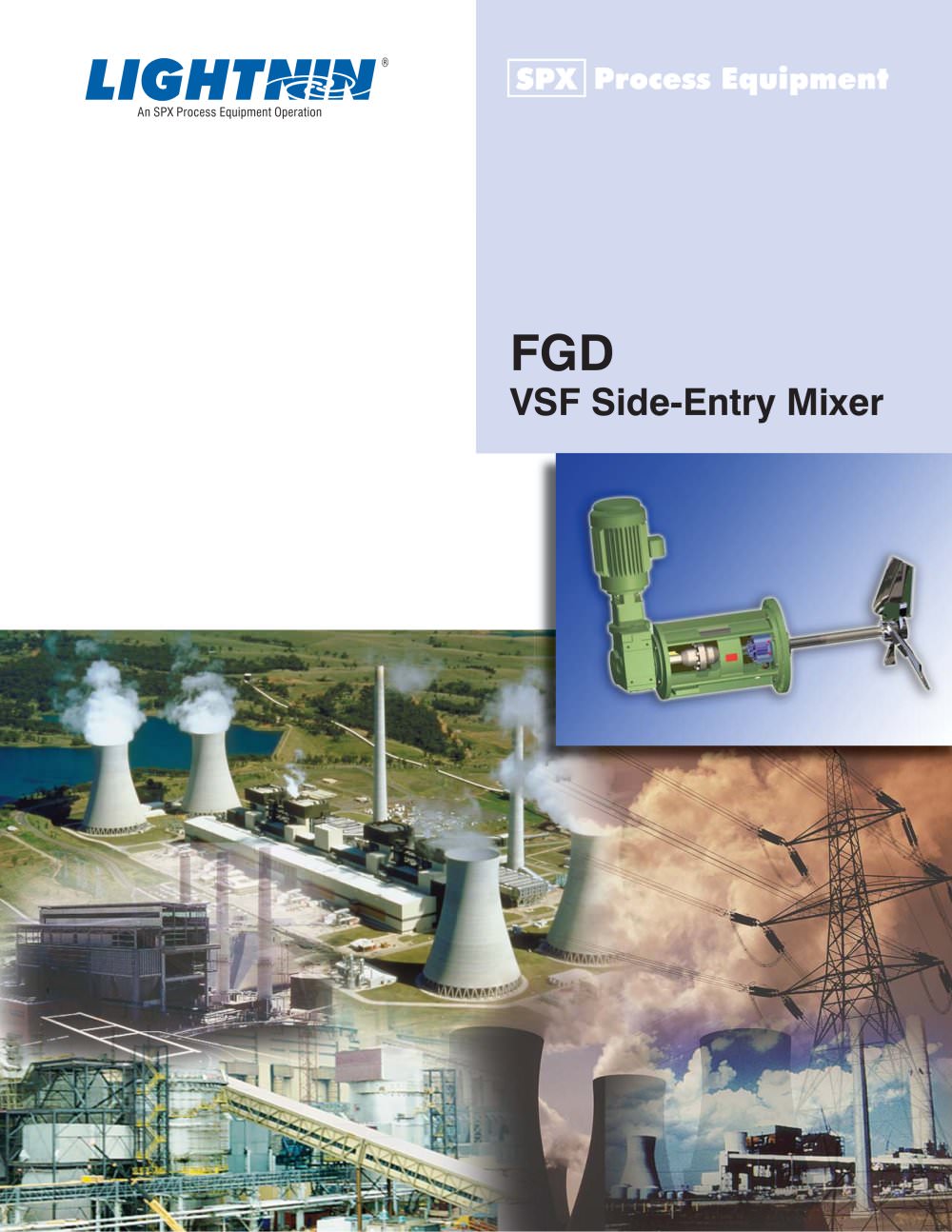

Open the catalog to page 1

LIGHTNIN , we bring over 80 years of mixing experience to your flue gas desulfurization (FGD) process. We believe that getting the job done right means providing the degree of mixing you need while striking the best balance of capital cost, energy consumption, and reliability. LIGHTNIN has successfully applied hundreds of Top and Side Entry agitators for flue gas desulfurization processes, from the very first FGD installation in the 1960s at the Lawrence Energy Center to todayҒs modern power plants. Since the first installation, the Boiler Systems have advanced considerably from the multiple...

Open the catalog to page 2

Carbide faces , resistant to abrasion, geometry is designed for slurries Low Pressure clean out , recommended use before startup and shutdown Integrated shutoff , easy to operate and contain tank contents while changing the seal Sleeve drive attaches without burring the agitator shaft Shroud Protects pins and springs from the process Duplex Stainless wetted metal for high chloride FGD service Sleeve centering tabs to ensure seal is properly installed Radial bearing to minimize deflection and increase seal life >

Open the catalog to page 3
