LIGHTNIN SVM Mixer

LIGHTNIN SVM Mixer

Product catalog summary

Overview
LIGHTNIN's SanStar™ Sanitary Vertical Mini (SVM) mixers are designed for critical bioprocesses in cGMP facilities, catering to industries such as biotech, pharmaceuticals, food, and cosmetics. These mixers are engineered for superior performance and cleanliness, suitable for applications like buffer and media preparation, cell culture, product recovery, blending, and packaging.

Specifications

Designed for vessels ranging from 20 to 100 liters.
Features a 300 series seal housing and pedestal with an epoxy-painted drive.
Suitable for dry-running, aseptic environments with a vertical, in-line design for closed tank applications.
Standard single dry-running seal, with optional sanitary purge gland.
Bio-Pharm-designed double mechanical seals available, either dry-running or condensate lubricated.
Output speeds range from 120 to 370 rpm, offering flexibility.
Various impeller configurations and variable speed drives to meet diverse process requirements.
Includes full clean-in-place and sterilize-in-place (CIP/SIP) features.
Backed by LIGHTNIN’s 100% process guarantee.

Quality Assurance Documentation (QAD)
Customers can order QAD to demonstrate compliance with FDA-mandated cGMP guidelines. For ordering, contact a LIGHTNIN Sales Representative or Service Center.

Contact Information
For more details or to discuss applications, contact LIGHTNIN Sales Representatives or visit www.lightninmixers.com. Call 1-888-MIX-BEST (U.S. and Canada) or 1(585) 527-1623 (Worldwide).

Model Specifications

Model	HP	Output Speed (rpm)	Maximum Diameter (A510_22)	Maximum Diameter (A320)
SVM4S15	0.15	370	8.8”	7”
SVM7S15	0.15	245	11.2”	9”
SVM9S15	0.15	180	12.8”	12”
SVM13S15	0.15	123	12.8”	12”

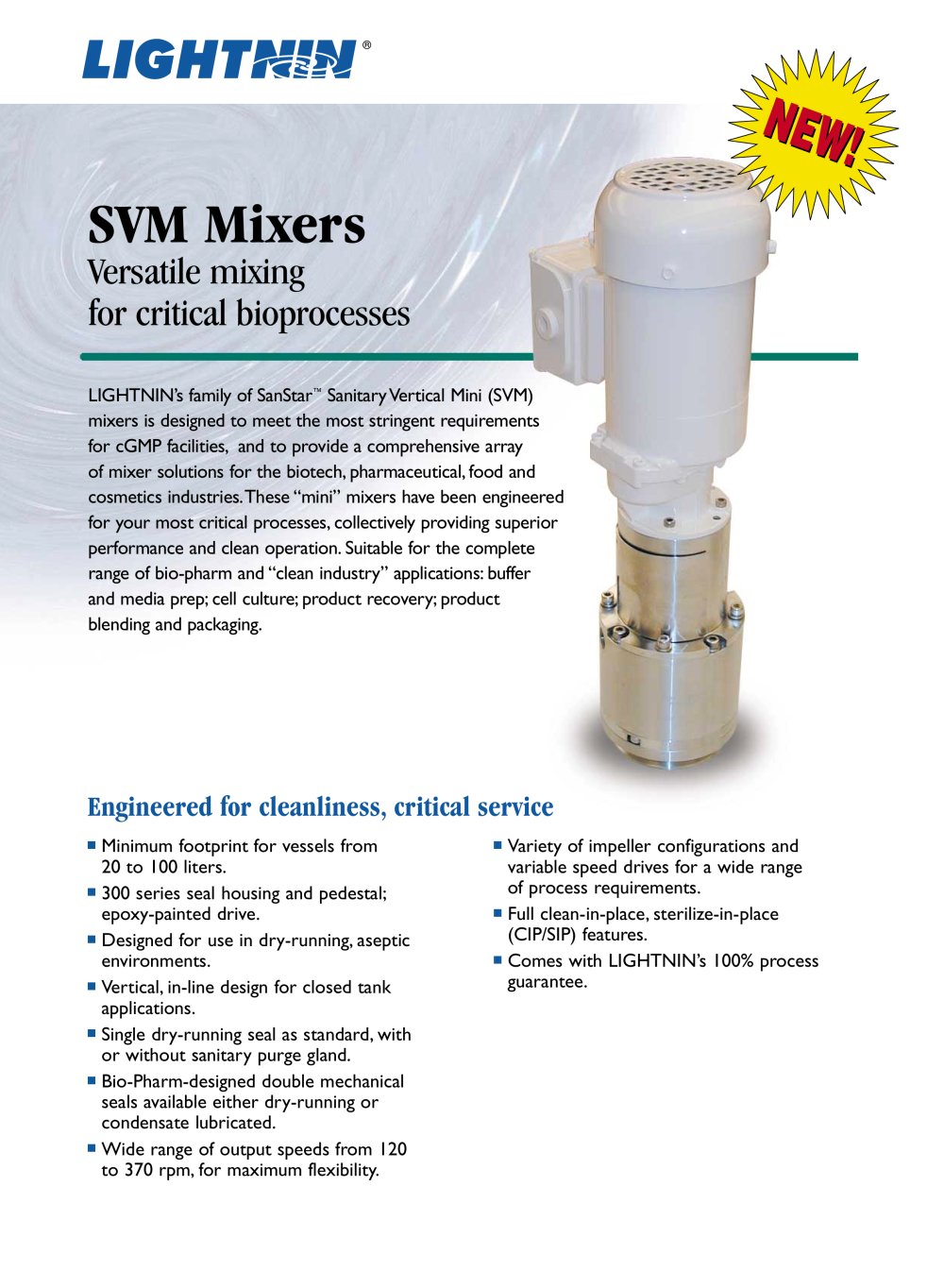

Catalog excerpts

To demonstrate that FDA-mandated GoodManufacturing Practices (cGMP) guidelines have been met,biotechnology and pharmaceutical customers may also order Quality Assurance Documentation (QAD) when they purchase a LIGHTNINSVM mixer.To order a QAD,talk to your LIGHTNINSales Representative or authorized LIGHTNINService Center. For more information about the LIGHTNINSVM Series or to discuss your application,contact your local LIGHTNINSales Representative.Or visit our website at www.lightninmixers.com.Or call 1-888-MIX-BEST (U.S.and Canada), or 1(585) 527-1623 (Worldwide). > 135 Mt.Read Blvd.Rochester,NY...

Open the catalog to page 2
