Overview

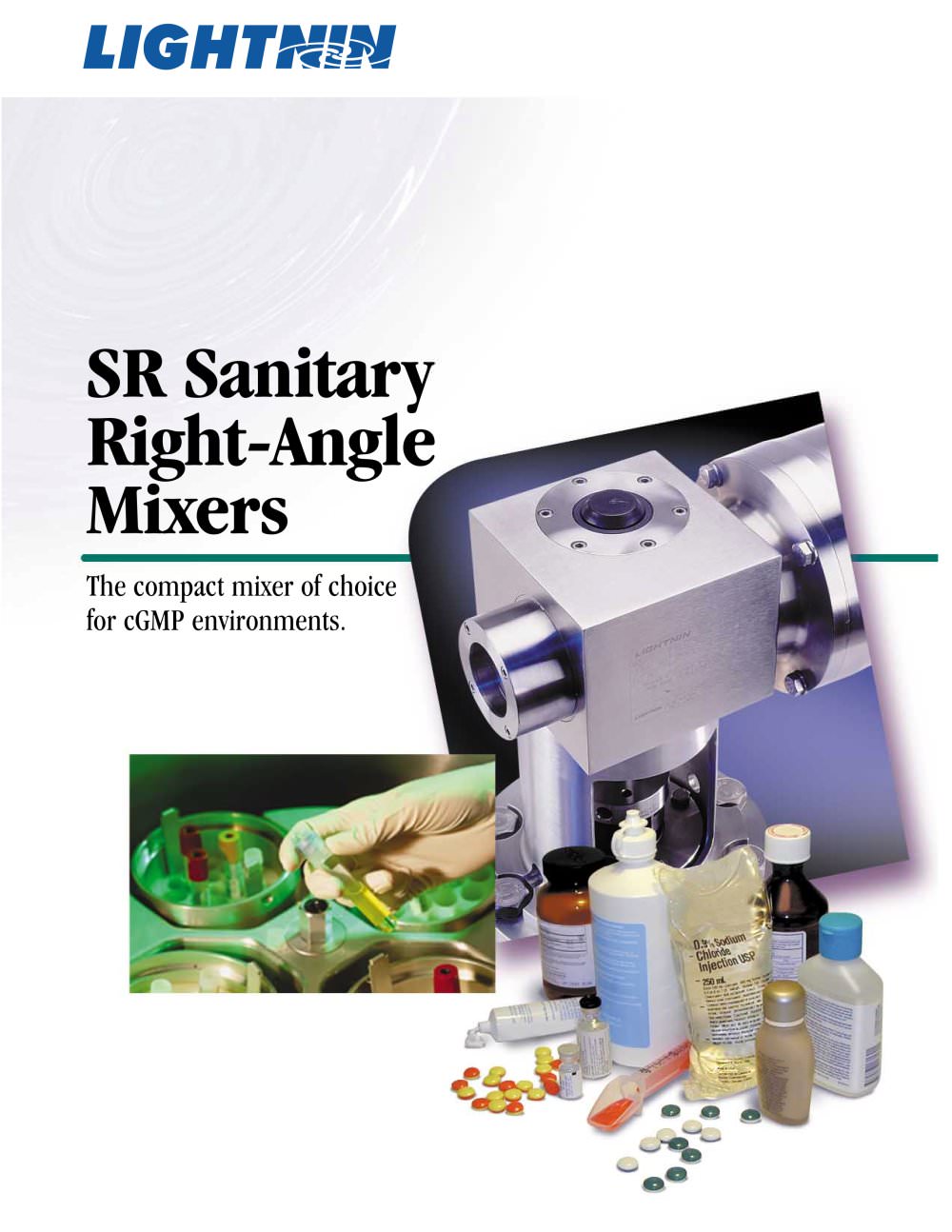

The LIGHTNIN SR Sanitary Right-Angle Mixers are designed for use in cGMP environments, particularly in biological, pharmaceutical, cosmetic, and food processing applications. These mixers are suitable for tanks ranging from 100 to 20,000 liters and are known for their reliable performance in aseptic environments.

Key Features

• Designed for stringent cGMP facilities, suitable for media suspension, buffer solution preparation, plasma extraction, and fermentation.
• Equipped with an aseptic dry running seal and sterilizable sanitary gland, designed for CIP/SIP environments.
• Compact design with a low headroom and right-angle gear drive, allowing easy relocation of processing tanks.
• Constructed with 300 series Stainless Steel exterior and supplied with a LIGHTNIN A310 low shear impeller.
• Customizable configurations to meet specific process and environmental requirements.
• Comes with LIGHTNIN’s Quality Assurance Documentation and a 100% process guarantee.

Mixing Technology
LIGHTNIN emphasizes the importance of impeller design, utilizing state-of-the-art facilities and proprietary equipment to create and validate impellers that meet unique process needs efficiently, reducing capital and operating costs.

Validation Support

• Quality Assurance Documentation includes project-specific inspection tests, data reports, and materials of construction to aid in the validation process.
• Authorized Service Centers provide installation, commissioning, and maintenance services.

Specifications

• Wetted Parts: A310 high-efficiency low shear hydrofoil impeller, 316L Stainless Steel, welded construction, and electro-polish available.
• Drive Assembly: 1/2 HP, 5:1 and 10:1 reduction, L-10 Bearing life over 100,000 hours, food-grade lubricant.
• Motors: Washdown and Inverter duty, TEFC, various voltage options, AC variable frequency Drives available.
• Seals: Single dry running with or without sanitary gland.
• Pedestal and Mounting Flanges: Various sizes and materials, surfaces finished to 63 Ra.

Custom Options

• High alloy impeller and shaft, all Stainless Steel gearbox and/or motor, explosion-proof motor, alternative impellers, and extended power and speed range.

Contact Information
For more information, contact LIGHTNIN Sales Representatives or visit their website.
