LIGHTNIN LabMaster Mixer

LIGHTNIN LabMaster Mixer

LIGHTNIN LabMaster Mixer

Product catalog summary
Overview: The LabMaster is a versatile laboratory mixing solution designed for various applications including water-like liquids, high viscosity blending, and gas-liquid-solid processes. It utilizes microprocessor technology, robust power, and advanced laser-designed impellers to achieve consistent and accurate results.
MixWare 1.0 Software: The new MixWare 1.0 software allows control of up to 32 mixers from a single computer. It records eight critical fluid mixing scale-up parameters and facilitates easy export of validation data. The package includes a temperature probe and all necessary cables and hardware.
Key Features:
  • Largest mixing capacities in the industry.
  • Reversible rotation for versatile pumping experiments.
  • Patented impellers for maximum efficiency.
  • Digital data entry via a splash-proof keypad.
  • Displays speed, power, torque, impeller flow, and run time.
  • Chemically resistant sanitary housing.
  • Worldwide design compatible with single-phase 50 or 60 Hz power.
Models and Specifications:
  • L1U10 and L1U10F: 115V/60HZ/1PH, 50-1800 RPM, 200L volume.
  • L5U10 and L5U10F: 115V/60HZ/1PH, 20-550 RPM, 400L volume.
  • All models feature 610 mm long shafts as standard.
Impeller Details:
  • L1U10 & L1U10F: A310 Dia. 86 mm, A100 Dia. 69 mm, R100 Dia. 51 mm.
  • L5U10 & L5U10F: A100 Dia. 79 mm, R100 Dia. 51 mm, A320 Dia. 127 mm.
Certifications: The LabMaster is CE marked for Europe, UL listed for the USA, CSA certified for Canada, and T marked for Japan. It is also ETL listed for other countries.
Contact Information: For more information, contact LIGHTNIN Sales Representatives or visit the SPX Process Equipment website. Phone numbers for U.S., Canada, and worldwide inquiries are provided.
See more

Catalog excerpts

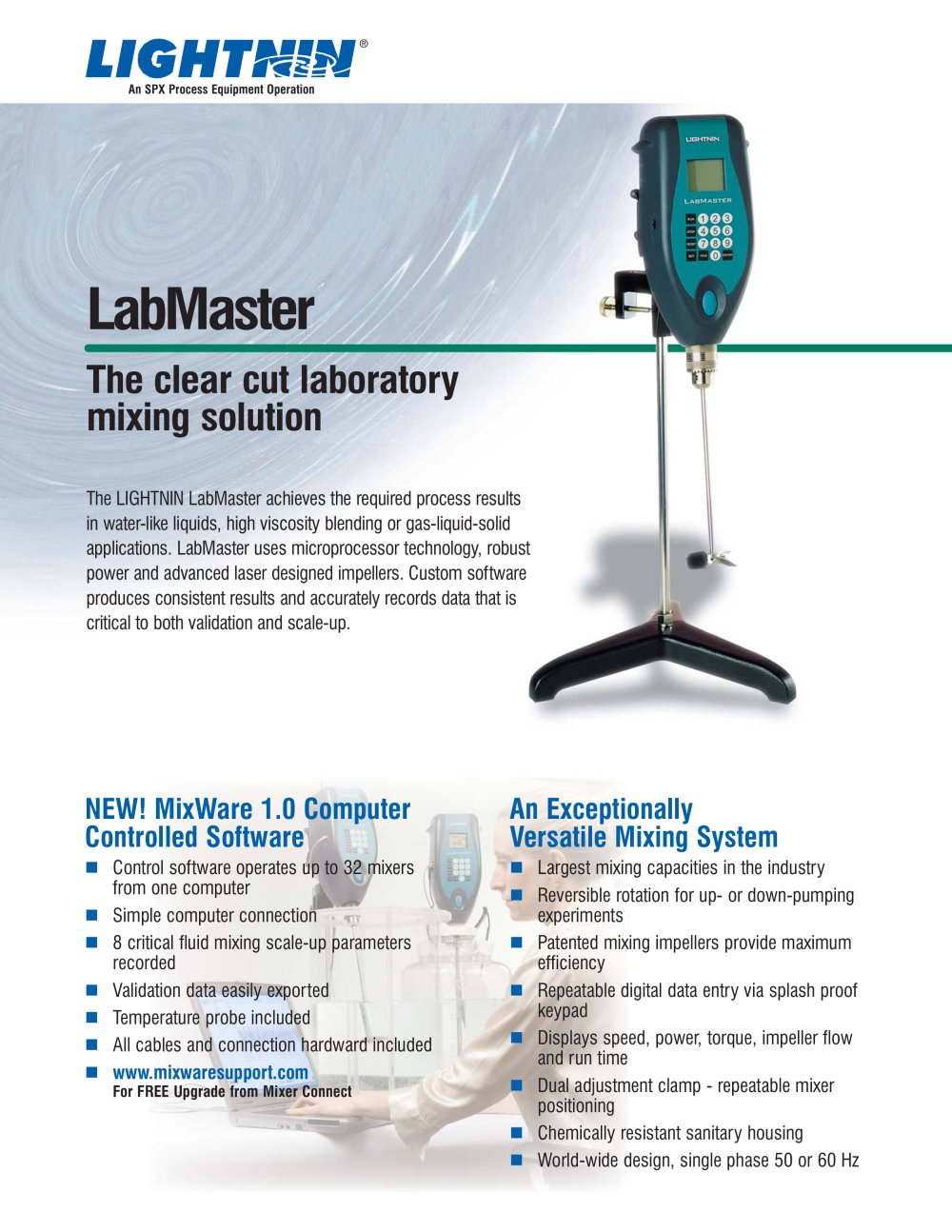

LIGHTNIN LabMaster Mixer-1

An SPX Process Equipment Operation The LIGHTNIN LabMaster achieves the required process results in water-like liquids, high viscosity blending or gas-liquid-solid applications. LabMaster uses microprocessor technology, robust power and advanced laser designed impellers. Custom software produces consistent results and accurately records data that is critical to both validation and scale-up. > Control software operates up to 32 mixers from one computer Largest mixing capacities in the industry Reversible rotation for up- or down-pumping experiments Simple computer connection 8 critical fluid mixing scale-up parameters recorded Patented mixing impellers provide maximum efficiency Validation data easily exported Repeatable digital data entry via splash proof keypad Temperature probe included All cables and connection hardward included Displays speed, power, torque, impeller flow and run time www.mixwaresupport.com > For FREE Upgrade from Mixer Connect Dual adjustment clamp - repeatable mixer positioning Chemically resistant sanitary housing World-wide design, single phase 50 or 60 Hz >
