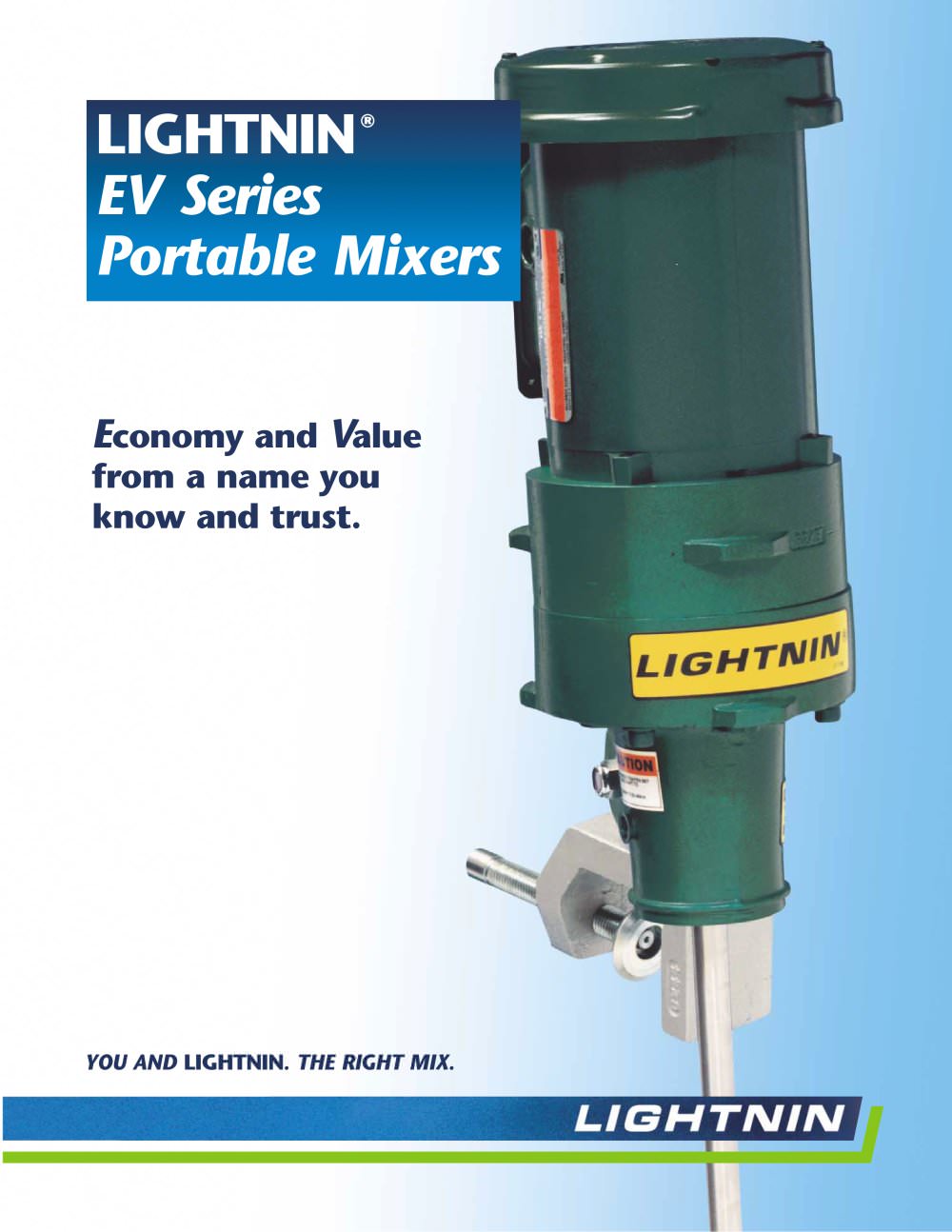

LIGHTNIN EV Portable Mixer

LIGHTNIN EV Portable Mixer

Product catalog summary

Overview: The LIGHTNIN EV Series Portable Mixers are designed for single-purpose mixing applications, offering superior economy and value. They are available with optional flange or plate mount bases and can be equipped with cool-running air motors suitable for flammable or explosive environments.

Specifications:

Optional air motors range from 1/4 to 3/4 hp and can operate in ambient temperatures up to 250°F (120°C).
Variable speed control is available on all electric models, except for explosion-proof (XP) models.
280 and 350 RPM gear drive units are ideal for mixing large batches of low-viscosity fluids or smaller batches of high-viscosity fluids.
1,725 RPM direct drive units are suited for small batch mixing and high fluid shear applications.

Features:

Self-aligning, floating gears for optimized load sharing and reduced wear.
Standard switch, cord, and plug on all single-phase, 60 Hz, non-explosion proof units.
Flexible motor coupling to reduce mechanical starting loads and extend gear life.
Permanently sealed lubrication to reduce maintenance costs.
Oversized bearings for superior shaft support.
Includes LIGHTNIN’s 100% performance guarantee.

Mounting Options:

Adjustable mounting surfaces with various dimensions for both gear and direct drive units.
Available beam plate replaces clamp for mounting flexibility.

Catalog excerpts

standard on all single-phase,60 Hz, non-explosion proof units.Flexible motor couplingreduces mechanical starting loads for extended gear life.ՕPermanently sealed lubricationreduces maintenance costs.Oversized bearings providesuperior shaft support.ՕIncludes Now you can buy just as muchmixer capability as you need for your specific application, without having to buy features and options that are more than you require. Plus, you get all the quality and reliability youd expect from the world leader in fluid mixing technology.ҕ280 and 350 RPM Gear Driveunits feature lower speeds and higher torque...

Open the catalog to page 2

ELECTRIC AIR 11/16 DIA.MOUNTING HOLES4 HOLES 20 20 а OFFSET OFFSET > AVAILABLE BEAM PLATE(REPLACES CLAMP) 10.2510.2548 3/8" FPT 19.2 MAX. GEAR DRIVE16.5 MAX. DIRECT DRIVE15.2 MAX. GEAR DRIVE12.4 MAX. DIRECT DRIVE 48 > MIXER MOUNTING BASEW/FLEXIBLE MOUNTS0.64 DIA.MOUNTINGHOLES 2.9MAX. > ADJUSTABLE 23.5 MAX. GEAR DRIVE21 MAX. DIRECT DRIVE 6.6DIA.3/8" FPT 4.715.25MAX2.25 ELECTRIC AIR5.5 MOUNTINGSURFACEOPTIONALANGLE RISER1010 ADJUSTABLE > 5.37510.75 12.37510 ADJUSTABLE MOUNTINGSURFACEMOUNTINGSURFACE3" 150 LBANSI FLANGE 6.6 DIA.15 GEAR DRIVE12.375 DIRECT DRIVE3/8"FPT5.187515.7 GEAR DRIVE13 DIRECT...

Open the catalog to page 3
