LIGHTNIN
LIGHTNIN ECL Fixed Mount

LIGHTNIN ECL Fixed Mount

Product catalog summary

Overview
The Enhanced Classic Line (ECL) Fixed Mount Mixers by LIGHTNIN are designed for high performance and flexibility in mixing technology. These mixers are maintenance-free, with sealed shaft bearings and synthetic grease-lubricated gears for continuous service. The mixers feature a robust aluminum housing for strength and reduced weight, and large output shaft bearings for extended shaft lengths and longevity.

Specifications
- Motor: Mixer duty motor with standard mounting, allowing for various speed and enclosure options.
- Housing: Aluminum for high strength and low weight.
- Coupling: Rigid coupling with pilot fit to ensure shaft concentricity and minimize run out.
- Impellers: Standard A310 impeller designed for efficient flow and process results with less power. Other impeller types are available.
- Gear Ratios: Two interchangeable planetary gear ratios for more output speeds and process flexibility. Direct drive is also available.

Features
- Motor Handle: Facilitates installation.
- Motor Coupling: Protects gearing from shock torque loads and extends motor bearing life.
- Seals: Multiple bearing seals prevent lubricant leakage.
- OSHA Approved: Coupling guard for safety.
- Isolation Mounts: Protect the drive against high fluid forces.

Options
- Motor Options: Electric motors with various enclosures and air motors for explosive environments.
- Remote Tachometer: Provides LCD display of mixer output speed with a 4 to 20 ma output signal for process control.
- Variable Speed Control: Available with various voltage and NEMA enclosure options.
- Angle Riser: Available for off-center positioning of mixer in open tank units.
- Closed Tank Flange Options: Solid alloy, 300 lb., oversized, and sanitary options available.

Sealing Options
- Packing: Lubricated, non-lubricated, or food grade.
- Single Seal: Dry running, lubricated, or sanitary.
- Double Seal: Dry running, lubricated, or gas lift-off.
- Seal Lubricators: Ensure proper lubrication of seal faces.
- Seal Removal Pedestal: Optional on 2-5 HP units for in-place seal removal.

Dimensions and Weight
Dimensions and weights vary based on horsepower, with detailed measurements provided for both open and closed tank units.

Catalog excerpts

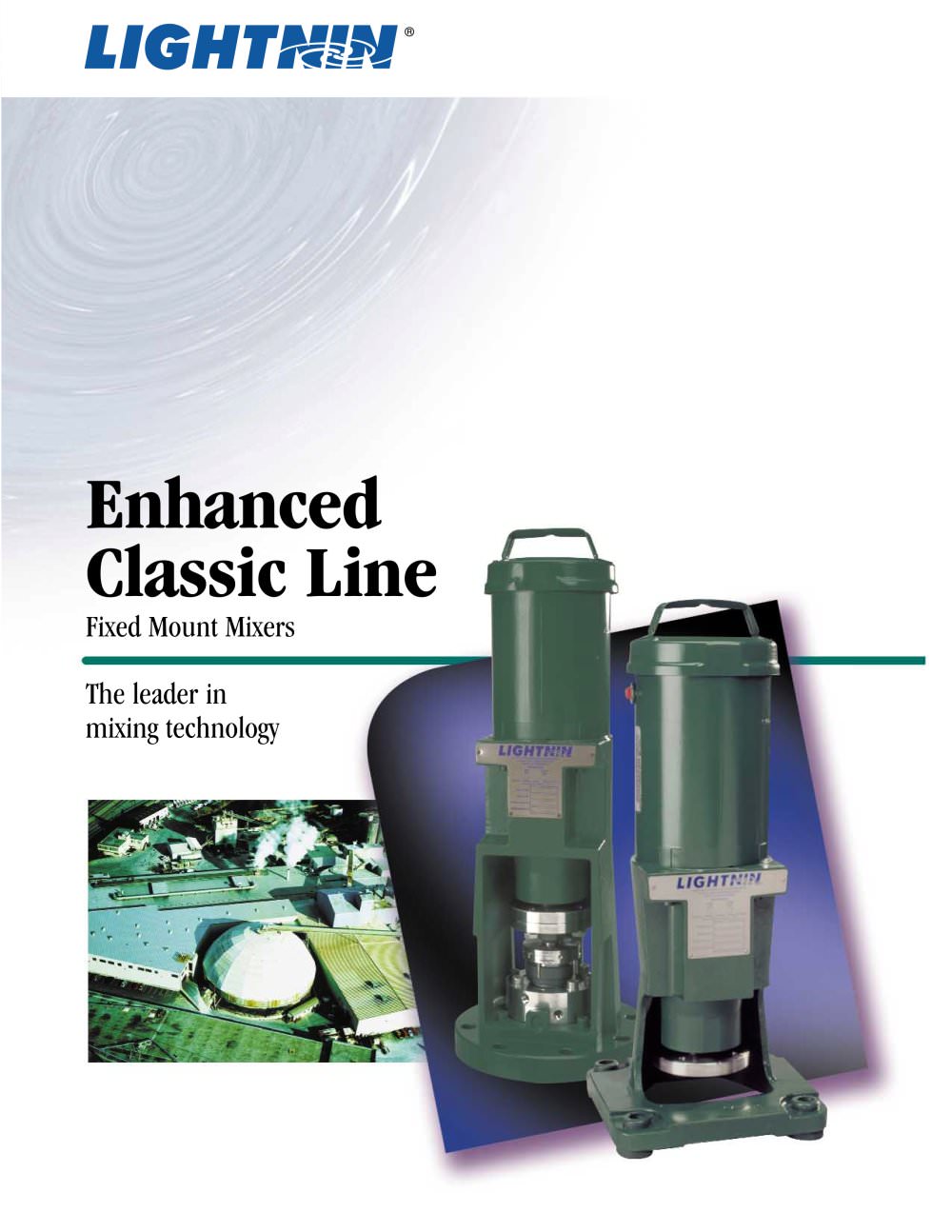

Fixed Mount MixersThe leader in mixing technology >

Open the catalog to page 1

The LIGHTNIN Classic mixer has consistently evolvedand improved through the years.These upgrades have provided our customers with improved mixer performance and enhanced process results.The new Enhanced Classic Line (ECL) fixed mountmixer gives our customers an even stronger and more flexible product.Never before has there been a range of mixers offering so much quality and value. > Maintenance free operation.All Shaft bearings are sealed for life.Gears are synthetic grease lubricated for continuous lifetime service.A mixer duty motor with standardmounting allows for many speed and enclosure...

Open the catalog to page 2

Electric motors Remote Tachometer provides a LCD display of mixer output speed. A 4 to 20 ma output signal is available for process control.Unit is UL Approved for hazardous locations. A variety of enclosures,single or three phase, multiple voltage and severe duty options are also available. Air motors Variable speed air motors are safe for explosive environments.They are supplied with a built-in speed adjustment air control valve and an option for non-lubricated vanes.Options include air filters,lubricators, and pressure regulators. Variable speed control A variety of voltage and NEMA enclosure...

Open the catalog to page 3

Dimensions are in inches HP ABCDEFG APPROX.WEIGHT (LBS.)0.25 - 0.524.45.37.45.84.84.05.5 1310.75 - 1.525.35.36.16.44.84.55.9 182 2 - 526.25.35.97.04.85.57.6 266 > Dimensions are in inches HP ABCDEFG APPROX.WEIGHT (LBS.)0.25 - 0.529.85.37.45.84.81.711 1830.75 - 1.531.85.36.16.44.81.711 234 2 - 532.85.35.97.04.81.711 318 >

Open the catalog to page 4
