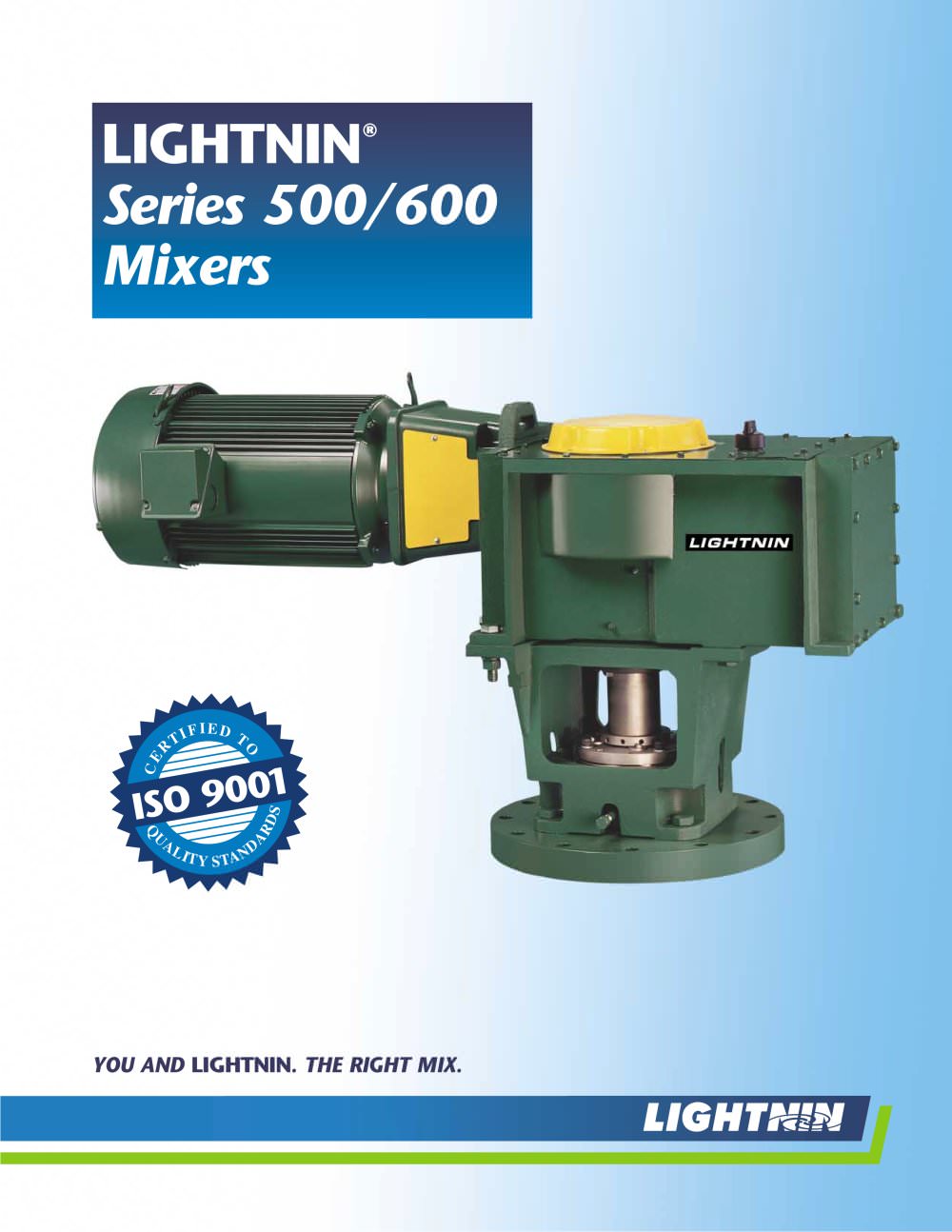

LIGHTNIN 500/600 Series Mixers

LIGHTNIN 500/600 Series Mixers
6Pages

Catalog excerpts

LIGHTNIN Simplicity sales engineer will simply select the impeller, motor, gear drive and seals that best meet your unique mixing needs. Series 500/600 mixers featurefewer parts, resulting in simpler maintenance than other mixers.The integral open-tank mountingbase is bolted directly to the mounting surface without the need for a separate mounting plate.All mechanical seal options areinterchangeable for easy upgrade, and the Series 600 with shaft coupling allows you to change the seal without removing the gear drive. Seal options cover a wide range of pressure and temperature requirements...

Open the catalog to page 2

Optimum bearing spacing/size for maximum lower shaft length and bearing life Numerous seal options lubricated, dry-running, single and double ֖ cover a wide range of pressure and temperature combinationsPatent-pending rigid shaft construction for longer allowable shafts to reach into deeper tanks without steady bearings Innovative shieldeddry well prevents oil leaksDuctile iron casthousing and pedestal optimizes strength and stiffness Choice of C-flange, foot mounted, metric D-flange and integral motors Case carburized and match-lapped spiral bevel gearing for long life Case carburized and...

Open the catalog to page 3

(Integral Motor Option) Integral motor provides a smaller foot print (15% shorter length than C-flange motor design) High-speed cross shaft is not required with integral motor design Integral motoreliminates the need for a high speed motor coupling Case carburized and ground helical gearing for long life Case carburized and match-lapped spiral bevel gearing for long life Intergral mounting base for easier installation on open tanks Optimum bearing spacing/size for maximum lower shaft length and bearing life Ductile iron cast housing optimizes strength and stiffness Innovative shielded dry...

Open the catalog to page 4

Optimum bearing spacing/sizefor maximum lower shaft length and bearing lifeChoice of C-flange, foot-mounted, metric D-flange and integral motors Patent-pending rigid shaft construction for longer allowable shafts to reach into deeper tanks without steady bearings Innovative shielded drywell prevents oil leaks Numerous seal options lubricated, dry-running, single and double ֖ cover a wide range of pressure and temperature combinations Ductile iron cast housing and pedestal optimizes strength and stiffness Case carburized and ground helical gearing for long life Case carburized and...

Open the catalog to page 5

(U.S.and Canada) B-665 B-633 B-799 B-742 B-769 B-565 B-901 > LIGHTNIN is a registered trademark of LIGHTNIN in the United States and may be registered in other countries. 135 Mt.Read Blvd.Rochester,NY 14611 USAwww.lightninmixers.com B-772-A-4/02 size="-2">
