Overview
The TES Remote Inputs/Output module is designed for data acquisition in industrial and building management applications. It features smart pre-installed functions, pre-formatted Modbus mapping, and quick startup capabilities. Over 20,000 units have been sold.

Specifications

Power Voltage: 24V DC
Dimensions: 134 x 130 x 64 mm
Protection: IP30
Mounting: Asymmetrical G 32mm or symmetrical DIN rail
Operating Temperature: 0°C to +60°C
Electromagnetic Immunity: EN 50081-2

Connectivity

RS485 or RS422 link, with optional redundant RS485
RS232 link for maintenance or modem channel

Input/Output Modules

Digital Inputs/Outputs: 8, 16, or 32
Analog Channels: 4 or 8, with 4 digital inputs and outputs
Relay Outputs: 250V/5A
Analog Inputs: 10 bits, 0-10 V, 0-20 mA, 4-20 mA
Analog Outputs: 15 bits, 0-10 V, 0-20 mA, 4-20 mA

Basic TES Functions

Input filtering and state change memory
Edge and duration counting
Digital output blinking
Analog input value storage and filtering
Logical output activation based on thresholds

Configuration Tools

TESIS: Configures basic TES, checks inputs/outputs
HERMES: Defines Modbus master frames, builds mapping
CHRONOS: Provides event timestamping for TES with 32 inputs

Specialized TES

TES Gateway: RS485 Modbus master and RS232 Modbus slave
TES Mirror: Self-starting, transmits input states to remote outputs
TES Chronology: Event timestamping with 2ms resolution

Technical Features

CE Marking
Power Supply: 24 V DC +/- 10%
Consumption: 0.65 to 3.2A
Protocol: Modbus/Jbus slave, Master for TES gateway
Speed: 150 to 38,400 bits/s

Note
All information is subject to change without notice. Leroy Automation reserves the right to modify product specifications.

Catalog excerpts

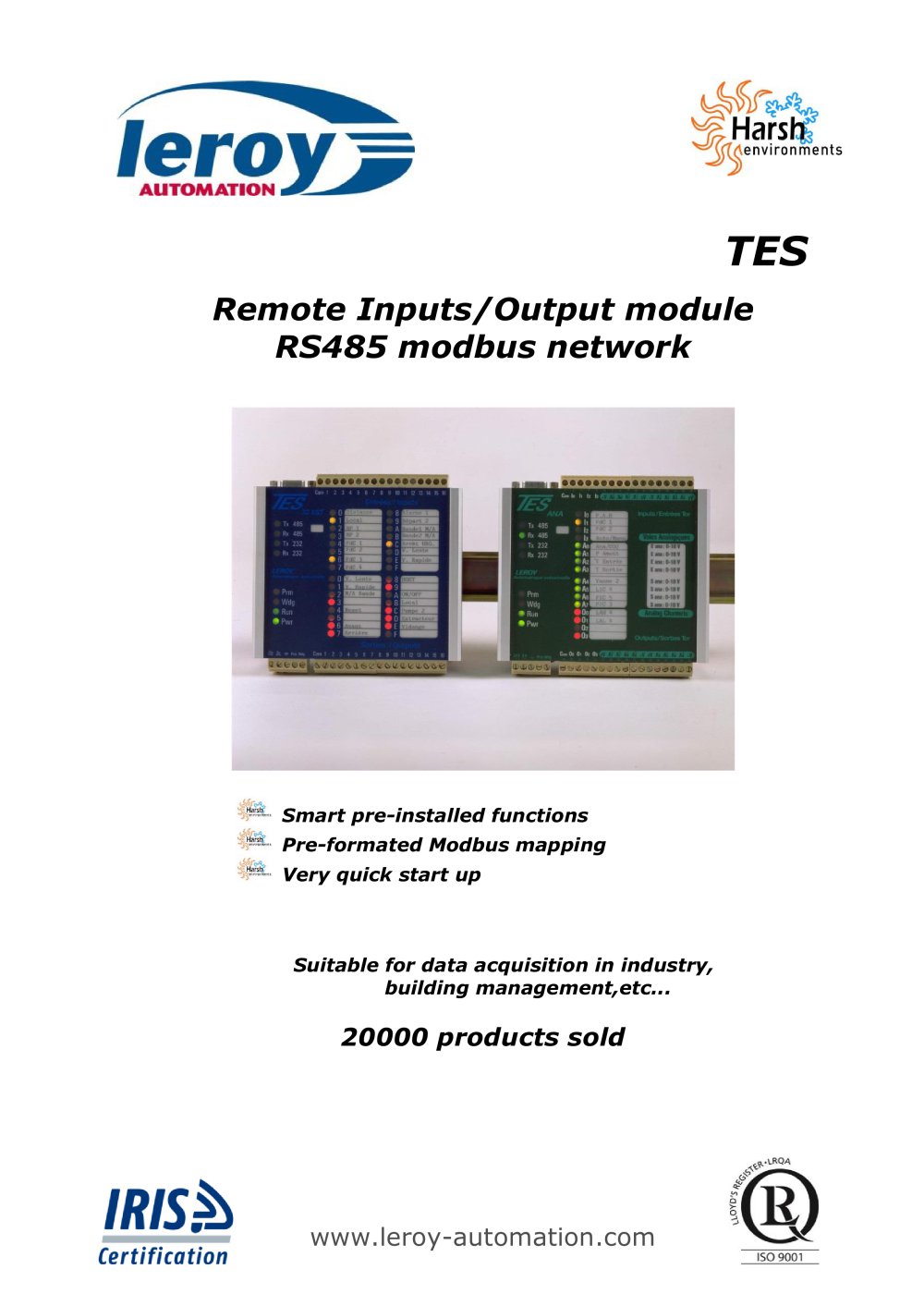

Remote Inputs/Output module RS485 modbus network ■— Smart pre-installed functions — Pre-formated Modbus mapping — Very quick start up Suitable for data acquisition in industry, building management,etc... 20000 products sold Certification www.leroy-automation.com
