LT160 OPAL32

Product catalog summary

Overview: The LT160 is a robust and modular data acquisition platform designed for harsh environments, suitable for various sectors including industry, energy, military, and transport. It features a customizable design with a focus on durability and connectivity.

Key Features:

Robustness: Each module is housed in an aluminum case providing electromagnetic interference immunity, high mechanical resistance, IP 30 protection, and excellent thermal dissipation. Operating temperature ranges from -20°C to +70°C.
Modularity: Input/output modularity ranges from 8 to 960 inputs, with pluggable screw terminals or SubD connectors.
Connectivity: Includes Ethernet 10/100 base T with antivibratory socket and 4 RS232/RS485 serial links for asynchronous protocols or Modbus master/slave.
Compact Design: Designed for shell housing integration with customizable rack lengths.

Technical Specifications:

Mechanical: Dimensions are height x length = 108 x 84 mm; width = 25 mm x number of modules. Fixation options include bolted on plate or grid, or on asymmetrical DIN rack.
Power Supply: Voltage ranges from 20 to 56 Vcc, with a power consumption of 20W.
Central Unit: Features Intel 386Ex microcontrollers with 256Ko RAM and ROM, and a real-time clock.
Communication: Ethernet and up to 8 RS232/RS485 links, with diagnostic LEDs for status indication.

Inputs/Outputs:

Logic Inputs: Available in blocks of 16, 32, 48, or 64 inputs, with protection against polarity inversions and LED display for each input.
Logic Outputs: Static 24 Vcc or relay 250 Vca, with protection against overloads and LED display for each output.
Analog Inputs/Outputs: Various ranges and resolutions, with insulation between channels and earth.
Secured Relay Outputs: Configurable with tri-tension voltage options and digital input currents.

Applications: Suitable for sensitive site monitoring, power station management, and embedded systems. The platform supports both small configurations and large systems with extension modules.

Additional Services: Factory assembly and testing, free technical support, and optional training.

Catalog excerpts

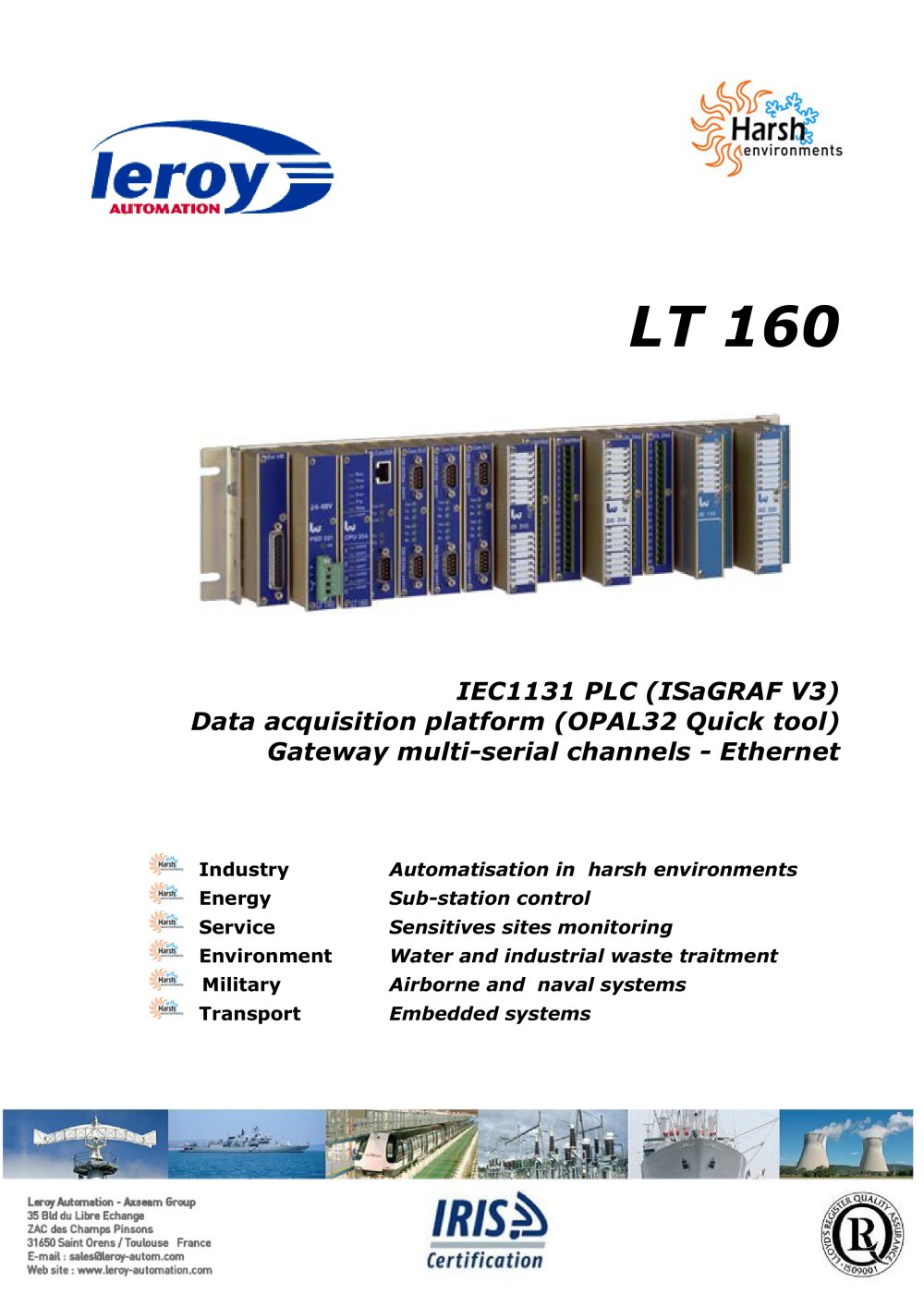

IEC1131 PLC (ISaGRAF V3) Data acquisition platform (OPAL32 Quick tool) Gateway multi-serial channels - Ethernet Automatisation in harsh environments Sub-station control Sensitives sites monitoring Water and industrial waste traitment Airborne and naval systems Embedded systems

Open the catalog to page 1

LT160 : designed for harsh environments ROBUSTNESS Each module is protected by in an aluminium case wich provides at the same time electromagnetic interference immunity high mechanical resistance IP 30 protection excellent thermic dissipation MODULARITY the Inputs / outputs modularity is 8,16,24,32,48 or 64 according to the ranges or connectors. The LT can command until 960 inputs. The connectors are pluggable screw terminals (industrial use) or SubD (embedded use). Operating temperature [ –20°C ; +70°C] CONNECTING Ethernet 10/100 base T with antivibratory socket 4 RS232/RS485 serial links for...

Open the catalog to page 2

General specifications MECHANICAL Overall dimensions Fixation ROBUSTNESS Operating Temperature Humidity Protection level CEM level Mechanical performance POWER SUPPLY Voltage - power Input/ Earth Insulation Alarm Output CENTRAL UNIT Microprocessor Memory Clock Operating Safety Diagnosis by leds COMMUNICATION Ethernet Asynchronous Diagnosis by leds Maintenance link Height x length = 108 x 84 mm ; Width = 25 mm x number of the modules on demand Bolted on plate or grid (embedded) or on asymmetrical DIN rack -20°C to +70°C (storage until 85°C) 5 to 95% without condensation. the LT can be tropicalized...

Open the catalog to page 3

Inputs / Outputs specifications Diagnosis All the I/O blocks have an internal power supply status register and a local WDG (red LED) transmitted to the CPU. LOGIC INPUTS Type Modularity Norm Protection Display 24 Vcc (5 to 30Vcc), 48 Vcc (30 to 60Vcc) Blocks of 16, 32, 48, 64 inputs according to the type and the connectors. Resistive input IEC 1131 type P. 5,5 k 5mA at 24V Against polarity inversions 1 LED per input LOGIC OUTPUTS Type Nominal current Modularity per block Protection Output/earth insulation Display RELAY OUTPUTS Type Modularity per block Protection Output/earth insulation Display...

Open the catalog to page 4
