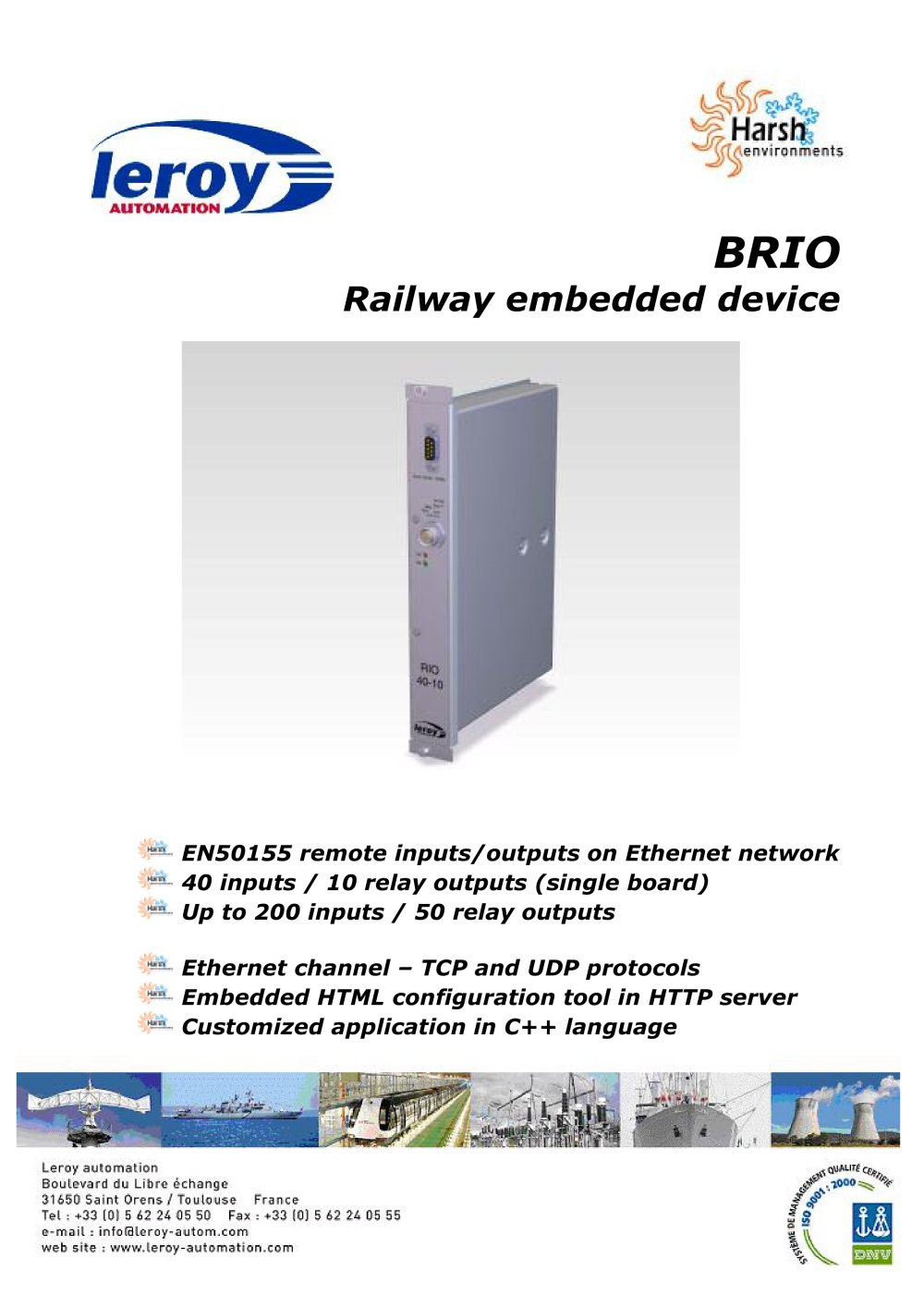

EN50155 remote inputs/outputs on Ethernet network 40 inputs / 10 relay outputs (single board) Up to 200 inputs / 50 relay outputs Ethernet channel TCP and UDP protocols Embedded HTML configuration tool in HTTP server Customized application in C++ language >

Built by the addition of one or several I/O boards assembly in a metallic cassette whereof dimensions according to IEC 6 02 97. One micro - processor additional board is plugged on the first I/O board to manage the e x ternal network communication interface . A n internal communication databus between CPU board and others I/O boards achieves the supervisory control of the I/O terminal . LED indicator on the front panel informes user about system works . > Ethernet 40END/10SR Five boards assembly Simple board Internal Databus Ethernet 40END/10SR RS232 40END/10SR RS232 40END/10SR 40END/10SR 40END/10SR...

RS2 3 2 > Ethernet (M12 connector) CPU Board 40 (to 200) digital inputs 10 (to 50) relay digital outputs DIN F4 8 IO Connector heat dissipation system (Leroy Automation patent) >

Mechanical D imension ( w ithout f i x ation) H ei g ht x W idth x D epth = 2 6 2 x 36 x 1 83 mm F i x ation B y s c re w W ei g ht 1 K g (sin gl e b oard) Power supply V o l ta g e 7 2 - 110 V or 24 V +25 %,-3 % C onsumption 20 W O peratin g tension .7 U n < V < 1 . 25 U n B attery Ov er v o l ta g e 1 . 4 U n durin g 1 s P o w er o ff 10 ms ma x O s c i ll ation .6 to 1 . 4 U n 100 ms C ommutation .6 U n ֖ 100 ms P rote c tion A g ainst po l arity in v ersion and o v er v o l ta g e CPU P ro c essor A tme l A T 9 1S A M 7 or M otoro l a C o l d F ire MCF522 3 V e l o c ity 50 to 6 MIPS M emories...
