ALTO WebIO

Product catalog summary

Overview
The ALTO WebIO is a remote input/output module designed for Ethernet TCP/IP communication, suitable for data acquisition in industrial, safety, and harsh environments. It features smart pre-installed functions, pre-formatted ModbusTCP mapping, and configuration via HTML pages for quick startup.

Mechanical and Sturdiness
The module is housed in a sturdy aluminum case with industrial-grade paint, measuring 145 x 128 x 72 mm. It offers IP30 protection, disconnectable connectors, and quick anchoring on a DIN rail. It is designed to withstand electromagnetic interference (EN 50081-2) and operates in temperatures from -20°C to +70°C, with a storage range of -40°C to +85°C. The MTBF is 12 years minimum.

Communication
The module supports one Ethernet 10 Base T channel using the Modbus TCP protocol, one RS232/RS485 channel, and one RS232 channel, both using the Modbus protocol.

Module Range
Various module configurations are available, offering different numbers of logical inputs, outputs, and analog inputs/outputs. Modules can operate on 24Vdc, 12Vdc, or 230Vca power.

Startup and Configuration
Upon power-up, the ALTO WebIO seeks an IP address from a DHCP or BootP server. Configuration is done through a web browser, allowing the operator to set server addresses, email wording, passwords, and more. It also allows for online input state display and output forcing.

Local Functions
The module includes input filtering, edge counters, duration counters, output position withdrawal on Ethernet failure, and output blinking.

Technical Specifications

Power Voltage: 24 Vcc +/- 20%, 12V +/-10%, or 85-264Vac with protection against current reversing and overvoltage.
Digital Inputs: IEC 61131 type 1 resistive, with a 5mA input current and hysteresis threshold.
Digital Outputs: Static type P, 500 mA, with redundant command; relay outputs with 24V coil, 3A on resistive load.
Analog Inputs: Configurable for voltage or current, with high precision and resolution.
RTD and Thermocouple Inputs: Supports PT100/PT1000 and various thermocouple types with specified resolution and precision.
Analog Outputs: Types include 0/4 – 20 mA, 0 – 10 V with 12-bit resolution.

Note: Specifications are subject to change without notice.

Catalog excerpts

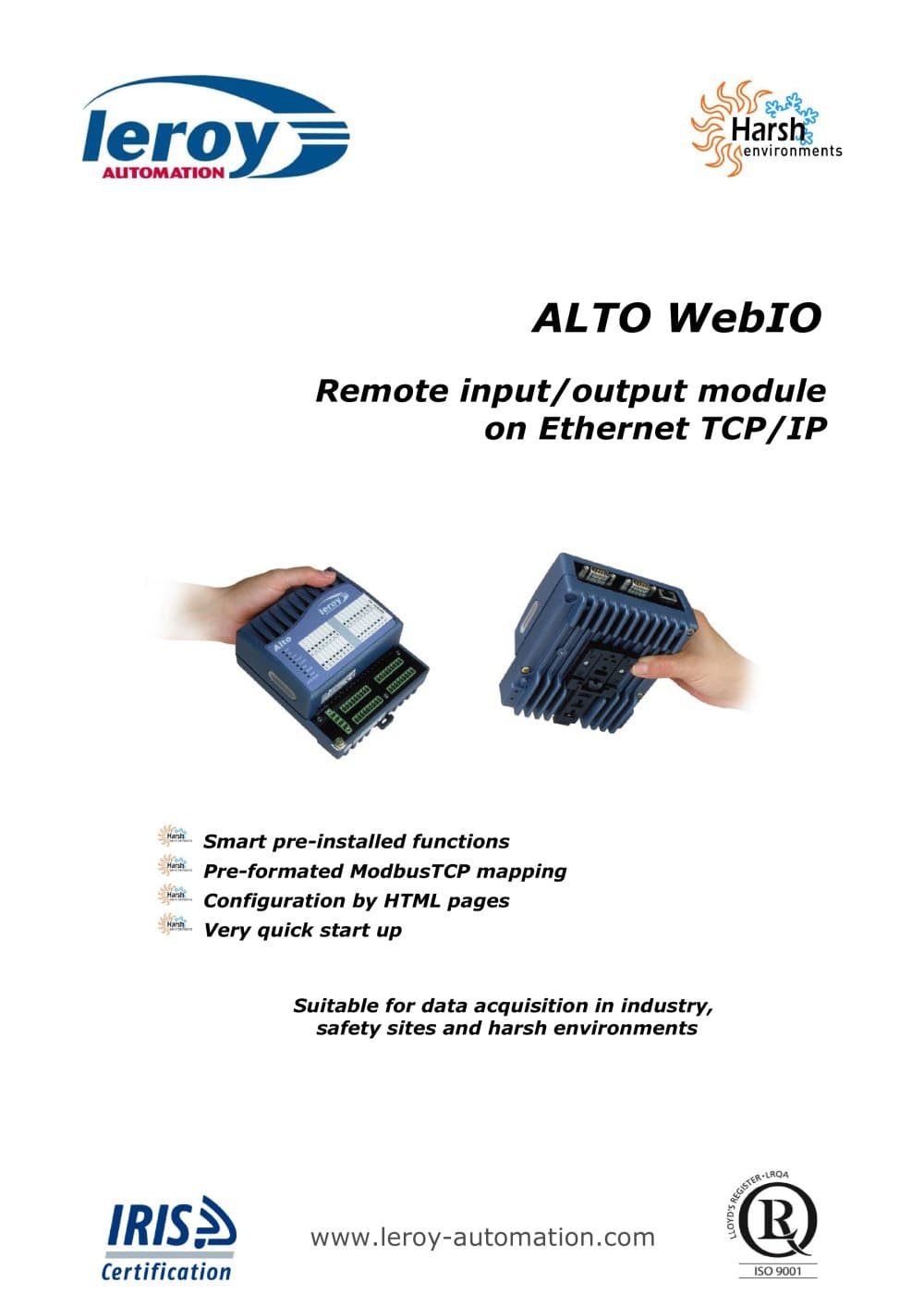

ALTO WeblO Remote input/output module on Ethernet TCP/IP —• Smart pre-installed functions Pre-formated ModbusTCP mapping H nConfiguration by HTML pages |bSl very quick start up Suitable for data acquisition in industry, safety sites and harsh environments

Open the catalog to page 1

MECHANICAL and STURDINESS Sturdy aluminium case. Industrial grade paint Compact product : Width X Height X Depth=145 x 128 x 72 mm Protection : IP30 Disconnectable connectors Quick anchoring clip on DIN symmetrical rail. Electromagnetic immunity EN 50081-2 Operating temperature : -20°C to +70°C. Storage temperature : -40°C +85°C MTBF : 12 years min according to UTE2000 45°C COMMUNICATION ON ETHERNET s 1 Ethernet 10 Base T Channel : slave Modbus TCP protocol S 1 RS232/RS485 channel : slave Modbus protocol s 1 RS232 channel : slave Modbus channel A RANGE OF MODULES this module exists with 24Vdc,...

Open the catalog to page 2

Start up without workbench After power on, Alto WebIO seeks a IP adress from a DHCP or BootP server. The operator logs on to the Alto with a browser. Alto emits the home page with a menu to configure the product (server adresses, email wording, passwords, ...) to display input states on line to allow output forcing, … Local functions  input filtering  Edge counters  Duration counters  Withdrawn output position if ethernet communication failure.  output blinking  ...

Open the catalog to page 3

TECHNICAL SPECIFICATIONS of INPUT/OUTPUT MODULES POWER VOLTAGE Protection 24 Vcc +/- 20% ; 12V +-10% or 85-264Vac Against current reversing and overvoltage DIGITAL INPUTS IEC 61131 : type 1 resistive, Common = 0V Input current : 5mA Threshold with hysteresis DIGITAL INPUTS WITH SENSOR WIRE CHECKING (AES Bx13) 4 states : Normal open, Normal close, open Failure, Short Circuit Detection by adaptable resistances between 1kΩ and 6kΩ Impedance max of the wire between the sensor and the input : 600Ω DIGITAL OUTPUTS (static) Type P ; 500 mA ; redundant command DIGITAL OUTPUTS (relays) Sortie contact...

Open the catalog to page 4
