Alto RIOM Ethernet (box format)
1 / 4Pages

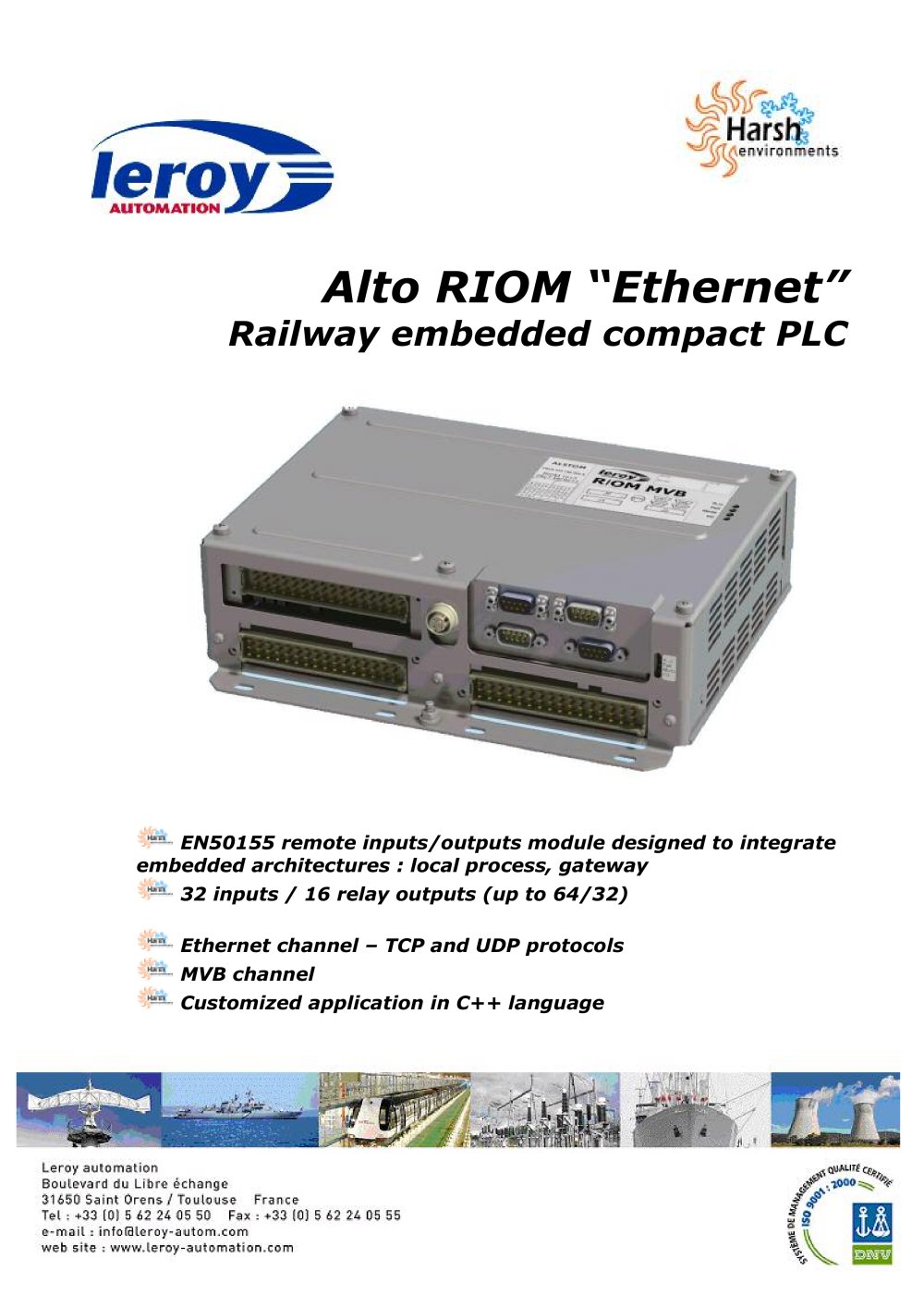

Br_Alto RIOM Eth_EN_080611Br_Alto RIOM Eth_EN_080611 > EN50155 remote inputs/outputs module designed to integrate embedded architectures : local process, gateway 32 inputs / 16 relay outputs (up to 64/32) Ethernet channel TCP and UDP protocols MVB channel Customized application in C++ language >

BOTTOM board : 32 inputs + 16 relays outputs INTERMEDIATE board (optional) : TOP boards 32 inputs : + 16 relays outputs CPU board : Ethernet + CAN 1 maintenance lin k 1 R S 232 serial lin k PC104 board MVB channel Peripheral board : 4 analog inputs 4 analog outputs 4 R S 232/R S 4 8 5 serial lin k s > Embedded O S : Linu x 2 . 6 . 12 Customer programmation : C++ or IEC1131 - 3 language with I S a G RA F V5 wor k bench >

ALTO RIOM pro v ides the gateway, the remote inputs/outputs and embedded PLC functions . In the TCM S , ALTO RIOM can manage Air conditioning, Doors, Bra k es, Au x iliary, S IV, F ire S ecurity, etc > ALTO RIOM has been de v eloped by LERO Y AUTOMATION following a process with the EN 50155 norms and S IL2 le v el . ALTO RIOM has the reliability features for suitable integration in the SIL2 Architecture . AL T he S TOM D e s i gn TR A i s N c S ompl PORT i an u s t e w s ith AL F TO EM R A I OM analys fo r i the s . mon it o ri ng . of the b r a k e s i n Ba rce lona m etr o . >

Mechanical D i m e ns i on (w ith o ut f i x a ti on) H ei g ht x W i d th x D e p th = 2 15 x 2 45 x 100 mm F i x a ti on By s cre w W ei g ht 2 . 5 K g ( 3 . 5 k g i f i n ter m e d i a te boa r d) Power supply Vol t ag e 7 2 - 110V o r 2 4V + 2 5 % , - 30 % Cons u mp ti on 15 W P r o tecti on A ga i ns t pola rit y i n v er s i on and o v er v ol t ag e CPU P r o ce sso r A RM 10 Ma r v e l M e mo rie s F las h : 16Mo ( 8 Mo fo r u s er ), R A M : 3 2 Mo (16Mo fo r u s er ) Comm u n ic a ti on l i n k s E ther n et 10/100 - bas e T + 2 R S 2 3 2 s eri al l i n k s Logical Input Nom i nal...
