Lemo's Environmentally Sealed Connectors
Lemo's Environmentally Sealed Connectors
LEMO is a renowned global leader in circular connectors, known for their quality and reliability since 1946. Their products are developed in an ISO 9001 certified environment, ensuring high standards.
LEMO offers a diverse range of connectors for applications such as medical equipment and test instrumentation. Their product line includes various types of connectors like single contact, coaxial, high voltage, fiber optic, and more, with custom designs available for specific needs.
- QUICK-LOK™ System: A secure push-pull, self-latching system.
- Materials: Made from brass, stainless steel, and aluminum with corrosion-resistant treatments.
- Electrical Characteristics: Designed to minimize electromagnetic interference and ensure electrical continuity.
These connectors are mechanically keyed for critical environments, offering various models for different applications.
Featuring hermaphroditic keying, these are ideal for frequent engagement and disengagement applications.
LEMO provides accessories like insulators and crimp contacts, along with tools such as wrenches and crimping tools.
LEMO offers extended customer service and a network of representatives for technical support.
LEMO connectors are synonymous with quality, offering solutions for a wide range of applications with custom design options.
The document highlights the importance of EMC and shielding efficiency, measured by IEC 60169-1-3 standards. K and E series connectors perform comparably to FGG + PHG.1K connectors.
PEEK is used for insulators due to its strength and resistance properties. Viton® is used for sealing grommets, offering excellent insulating properties.
LEMO uses female cylindrical contacts with a pressure spring for reliability, made from materials like bronze beryllium and brass, with gold plating to prevent wear.
Available in standard and reduced versions, with gold-plated printed circuit contacts for optimal soldering.
Rated current and test voltage are specified by IEC standards, with guidelines for operating voltage based on altitude.
Designed for outdoor use, these connectors are watertight (IP68) and feature a push-pull latching system, offering high packing density and rugged housing.
Designed for outdoor applications, these connectors are watertight (IP68) and support various configurations for different voltage and current requirements.
Connectors are made from materials like brass and stainless steel, with treatments like nickel plating and anodizing.
Includes male and female solder and crimp contacts, with specifications for conductor sizes.
Various models are described, each designed for specific applications with features like watertight sealing.
Standard products are available within 0-6 weeks, while non-standard products may take 6-12 weeks.
Electrical shielding efficiency is specified, with mechanical endurance rated at over 5000 cycles and a temperature range from -58°F to +392°F.
Examples of part numbers are provided, detailing configurations and features.
Highlights applications for watertight and vacuum-tight models, such as military and aviation.
Details on durability, humidity resistance, temperature range, and corrosion resistance are provided.
Includes panel cut-out dimensions and availability for various models.
Details on solder contacts, including AWG sizes and rated currents.
Lists recommended triaxial and coaxial cables.
Includes notes on calculation methods and standards for further details.
Details on materials, temperature range, and watertightness for various components.
Includes plug caps, blanking caps, bend reliefs, and nuts, with specifications and materials.
Standard products have a delivery time of 0-6 weeks, while non-standard products take 6-12 weeks.
Outlines terms for transactions, including pricing, payment, returns, and warranties.
Emphasizes following safety regulations to prevent hazards.
Connectors with exposed contacts should not be live, especially with hazardous voltages.
Maximum operating voltage is determined by standards, with test voltage applied at 75% of the mean breakdown voltage.
Applies to complete products, indicating compliance with European safety directives.
LEMO reserves the right to modify products or specifications without notice.
LEMO offers custom designs and manufacturing services, including cable assembly and rapid prototyping.
Includes forms for requesting design and manufacturing services, requiring detailed application information.
Catalog excerpts

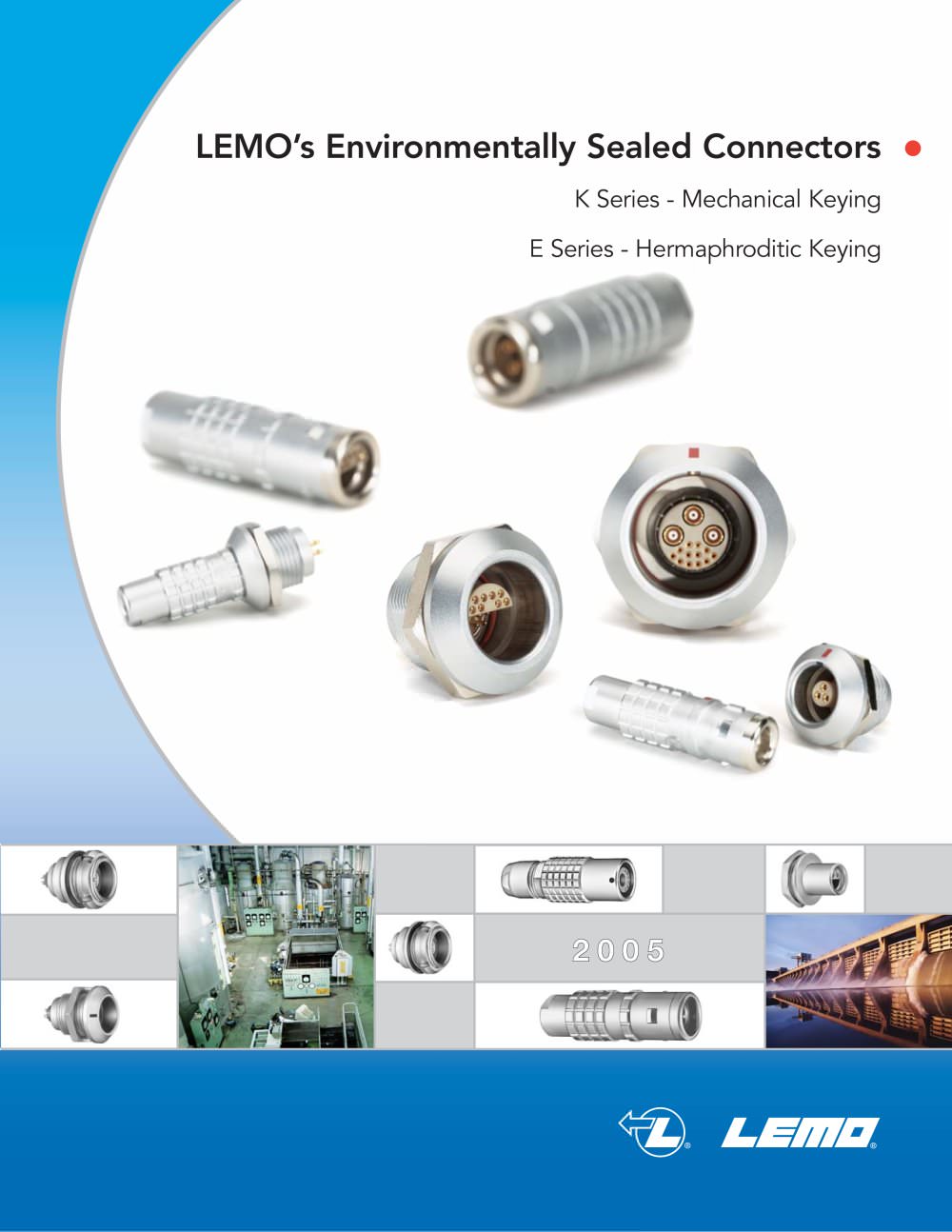

K Series - Mechanical Keying E Series - Hermaphroditic Keying 2005 >
