HARSH ENVIRONMENT CONNECTORS LF SERIES

Product catalog summary

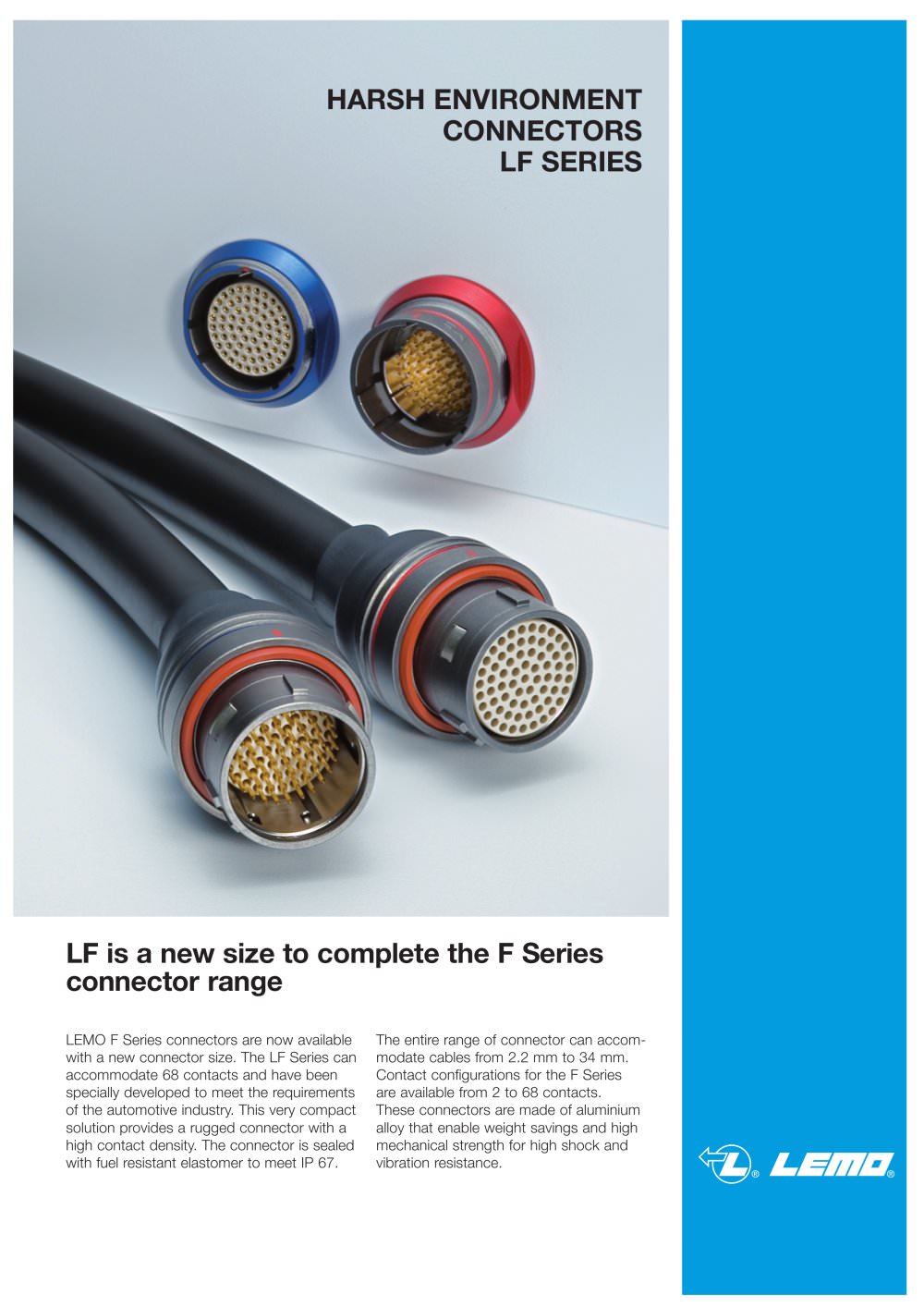

Overview: The document provides technical specifications and details for the LEMO LF Series connectors, designed for harsh environments, particularly in the automotive industry. These connectors are compact, rugged, and offer high contact density.

Specifications: The LF Series connectors can accommodate up to 68 contacts and are sealed with a fuel-resistant elastomer to meet IP67 standards. They support cable diameters ranging from 2.2 mm to 34 mm. The connectors are made from aluminum alloy, providing weight savings and high mechanical strength, suitable for high shock and vibration resistance.

Models and Part Numbers: Various models are listed with specific part numbers, including FGW.LF.368.XLC, EHW.LF.368.XLM, PEW.LF.368.XLM, and HEW.LF.368.XLNP, among others. Each model has specific configurations and applications.

Technical Characteristics: The LF Series shares technical characteristics with the 4F series, with details available in the F series catalog No 9. The connectors are tested according to IEC 60512-2 test 4a standards.

Accessories: The document lists accessories such as blanking caps and plug caps, with part numbers and specifications for each. These accessories are designed to fit various alignment key configurations.

Additional Components: The document includes information on heat shrink boots, manual crimping tools, extractors for crimp contacts, and positioners for crimp contacts, with specifications and part numbers provided.

Installation and Usage: Details on PCB drilling patterns, panel cut-outs, and torque specifications for mounting nuts are provided. The document also includes cable stripping lengths and notes on using banding tools for screened cables.

Contact Information: LEMO headquarters contact details are provided for further inquiries.
