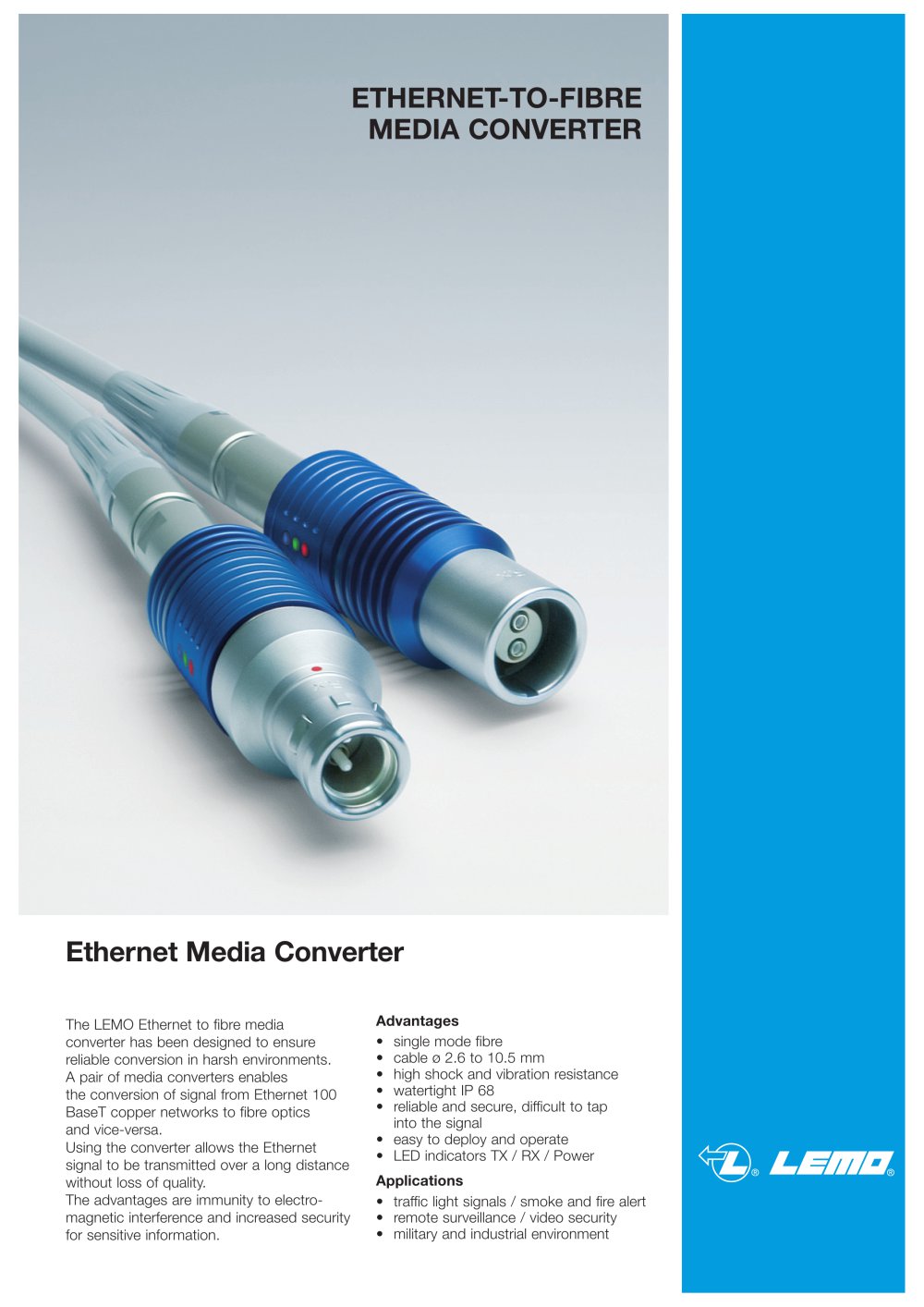

ETHERNET-TO-FIBRE MEDIA CONVERTER Patent P Technoending logy Ethernet Media Converter The LEMO Ethernet to fibre media converter has been designed to ensure reliable conversion in harsh environments. A pair of media converters enables the conversion of signal from Ethernet 100 BaseT copper networks to fibre optics and vice-versa. Using the converter allows the Ethernet signal to be transmitted over a long distance without loss of quality. The advantages are immunity to electromagnetic interference and increased security for sensitive information. Advantages • single mode fibre • cable ø 2.6 to 10.5 mm • high shock and vibration resistance • watertight IP 68 • reliable and secure, difficult to tap into the signal • easy to deploy and operate • LED indicators TX / RX / Power Applications • traffic light signals / smoke and fire alert • remote surveillance / video security • military and industrial environment
Open the catalog to page 1Technical characteristics Environmental characteristics Transmission Wavelength Fibre type Electrical Inputs LD Optical Output Power Photodiode Sensitivity Data Rate Transmission Distance 1310 nm Singlemode 9/125 µm 10/100 BaseT Ethernet, 5V supply (280mA max.) 200 µW (250 µW max.) -37 to -5 dBm 125 Mbps (max.) over 20km Protection Index Temperature Range / Humidity Solar Heating Salt Spray Blowing Sand Shock / High Altitude Fluid Resistance IP68 (when mated) -20°C to +85°C / 85% rH at +45°C 1120 W/m2 (max) at +49°C 5% Saline Solution for 48 hours 0.75 g/m3 for 1.5 hours up to 40 g / 4.572...
