Product catalog summary

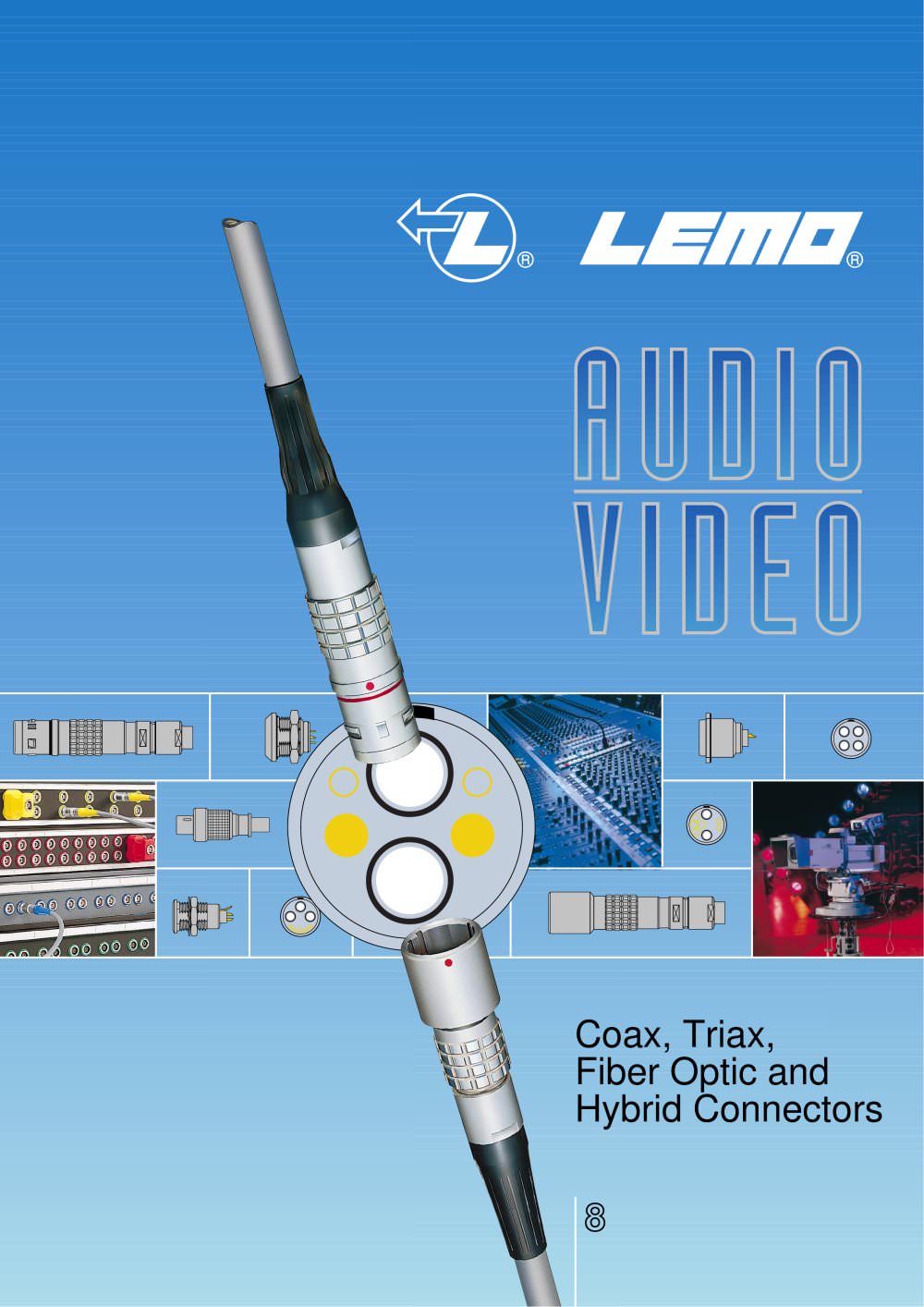

Overview: The document provides a detailed overview of various types of connectors, including coaxial, triaxial, fiber optic, and hybrid connectors. It covers the general production program, technical characteristics, and specific applications for each connector type.

General Production Program: A wide range of connectors is listed, including unipole connectors (2 to 150 Amps), coaxial connectors (50 and 75 Ω impedance), and multipole connectors (up to 106 contacts). It also includes high voltage, triaxial, quadrax, and mixed connectors combining high voltage, low voltage, and fiber optics.

Technical Characteristics: The document details specifications such as impedance, operating frequency, VSWR, contact resistance, insulation resistance, and watertightness. For instance, the 3T Series connectors have a 75 Ω impedance, 1.9 GHz operating frequency for coaxial, 1.2 GHz for triaxial, and IP66 watertightness rating.

Specific Series and Applications: Highlights include the 3T Series for TV camera applications with IP66 protection, the 4A Series for professional video cameras, and the 4E Series for harsh environments with blind mating and superior EMC protection.

Locking System: The LEMO self-latching system is emphasized for its fast operation and safety against vibrations and accidental disconnections, allowing easy mating and disengagement.

Recommended Cables: Recommendations for compatible cables are provided, listing specific cable types and impedance values for optimal connector performance.

Additional Information: The document mentions adapters, accessories, and tools to complement the connectors, ensuring a comprehensive solution for various technological requirements.

Specifications: Detailed specifications for LEMO connectors in audio and video applications are provided, including contact numbers and dimensions for series like FGG, CFF, and PHG.

Connector Types: Descriptions of various connector types, such as straight plugs and elbow sockets, are included, with part numbers and dimensions for different applications.

Quadrax Connectors: These connectors feature four concentric contacts for audio stereo patch panels, allowing "blind" mating and available in multiple colors for coding.

Patch Panels: LEMO offers audio and video patch panels with Push-Pull connectors, available in standard 19" configurations for reliable connections.

Recommendations: Specific cables for use with connectors, such as coaxial and screened bifilar cables, are recommended, with guidance on part number configurations.

Additional Notes: Notes on special termination requirements and availability of connectors in different shell colors are included.

Specifications: Maximum operating temperature is 100°C (212°F), with IP61 watertightness. Body materials include Polyoxymethylene and brass, with various color options for cords and O-rings.

Procedures: Instructions for ordering different colored caps and strain reliefs are provided.

Dimensions and Weight: Detailed dimensions and weights for various series and part numbers are specified.

Materials and Colors: Strain reliefs and insulating washers are made from Polyurethane and Polyamide, available in multiple colors.

Tools and Accessories: A range of tools for fiber optic termination is available, including polishing and crimping tools, with a LEMO workstation for field use.

Recommendations: Use specified part numbers for ordering to ensure compatibility and follow temperature and material guidelines for optimal performance.
